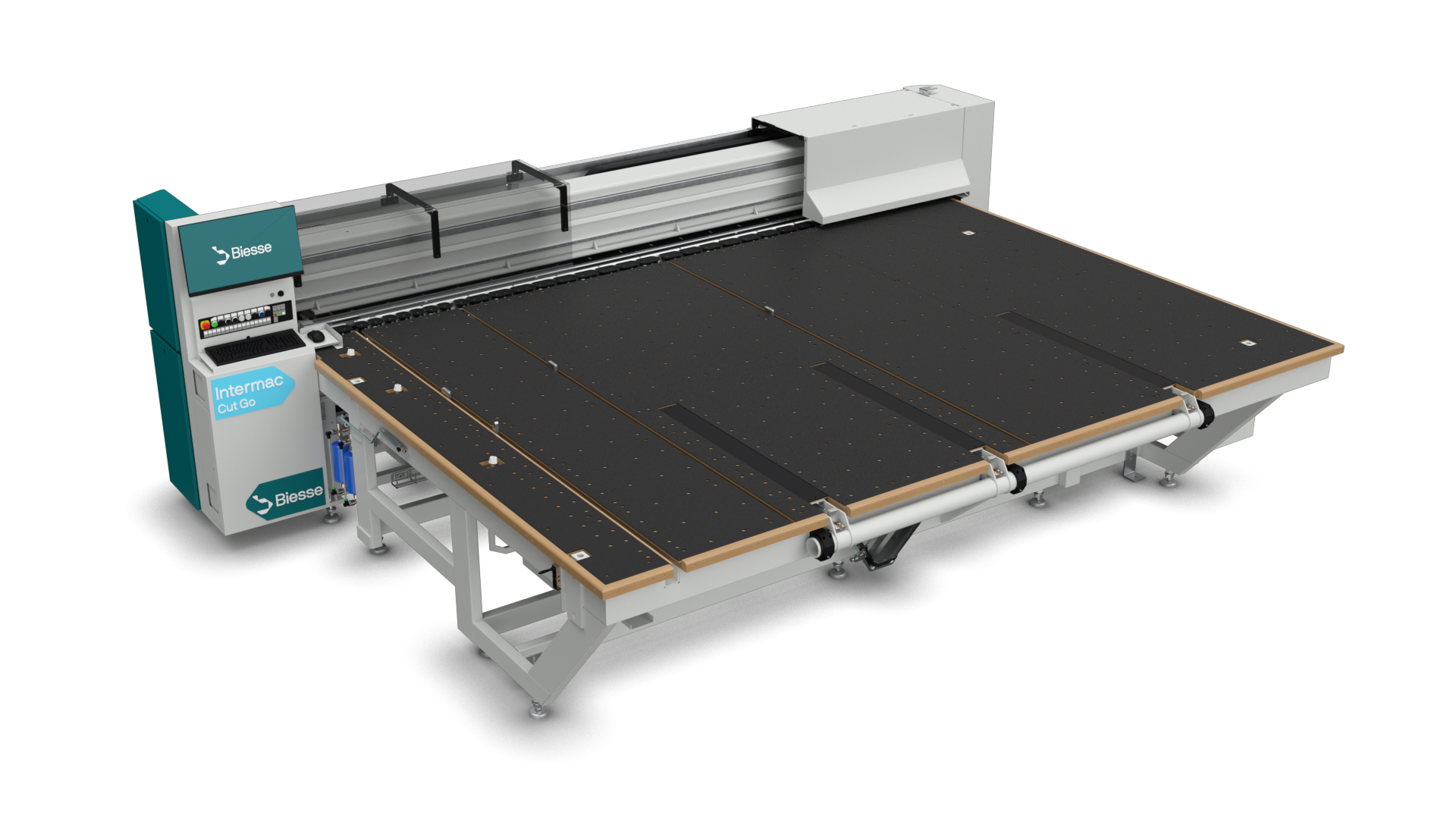

Intermac Cut Go L 0

Digital Catalogue

More info

Fill in the form, specifying your requirements, and one of our experts will be in touch as soon as possible

Laminated glass process made easy

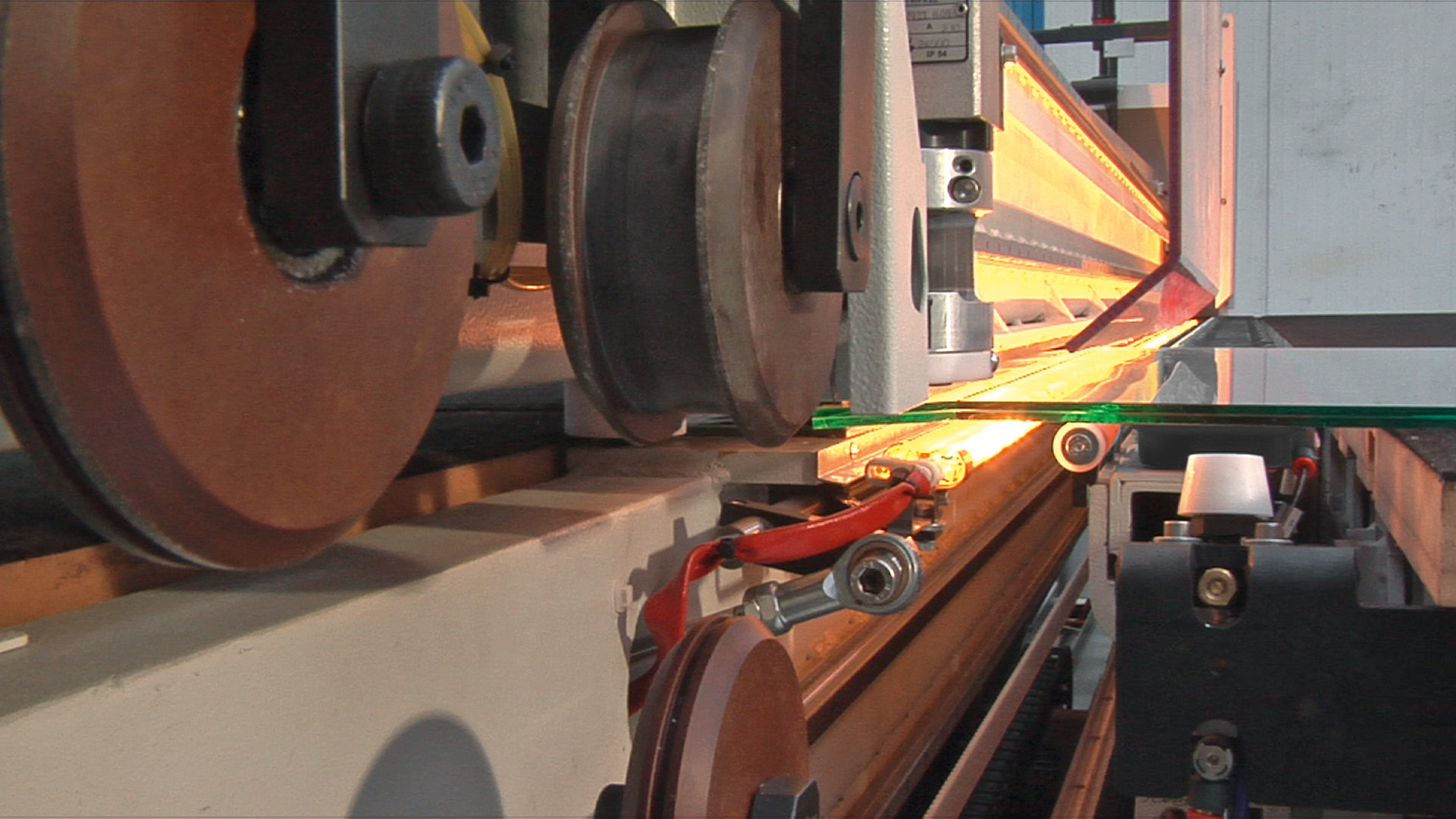

Compact, user-friendly cutting table designed for efficient laminated glass processing. It is capable to automatically perform all the main operations like scoring, breakout and PVB separation, including heating and cutting. Equipped with advanced technological features and operator-assisted devices found in top-tier machines, it’s the ideal choice for getting the job done with ease and efficiency, without requiring a large investment.

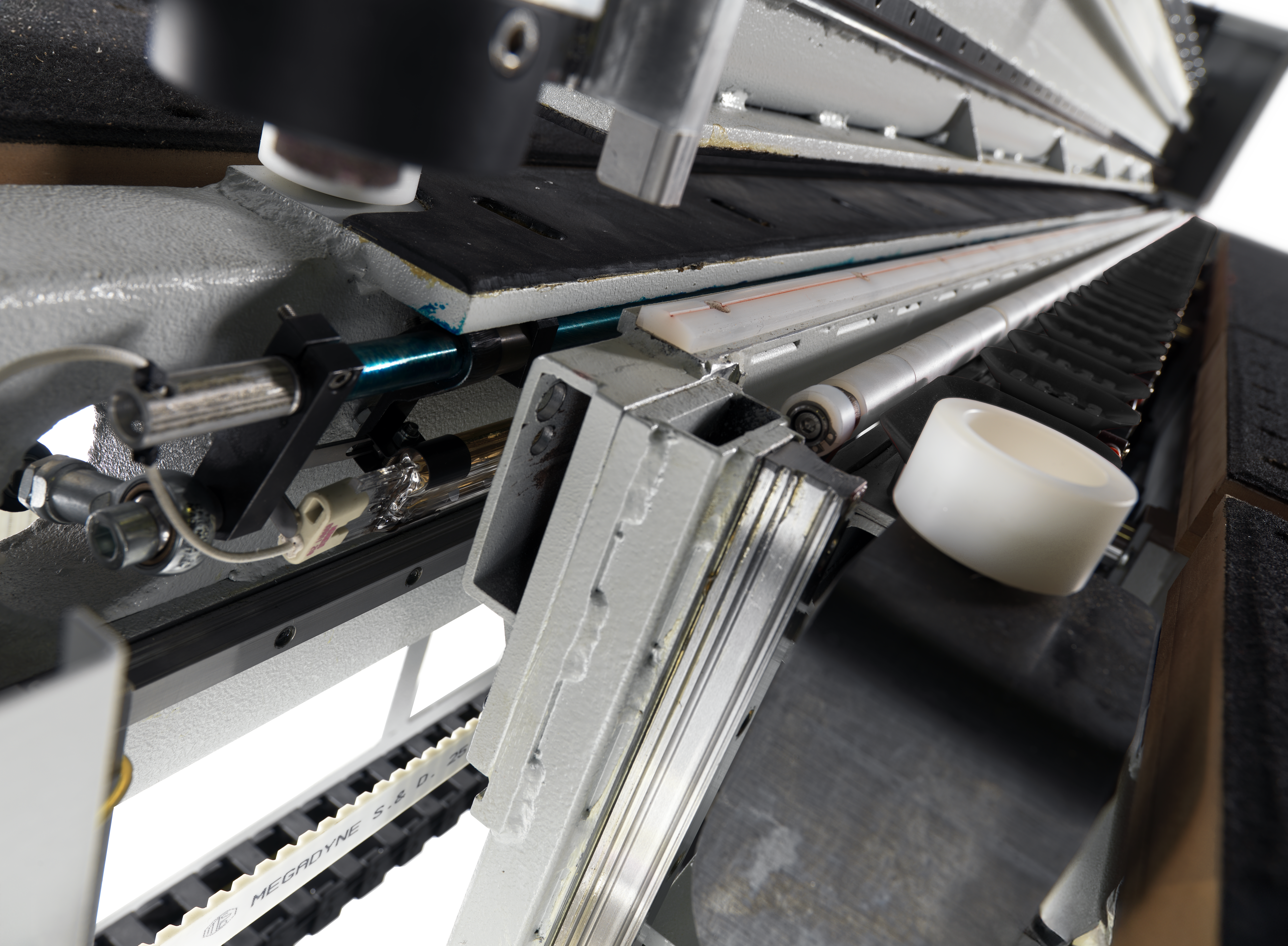

Heavy duty cuts

Designed with precision in mind, the machine’s reinforced breakout bar, complete with linear guides, applies uniform pressure on the glass for consistent, reliable breakout.
This machine enables the processing of laminated glass from 33.1 to 1010.4, without the need for special equipment or highly skilled operators.

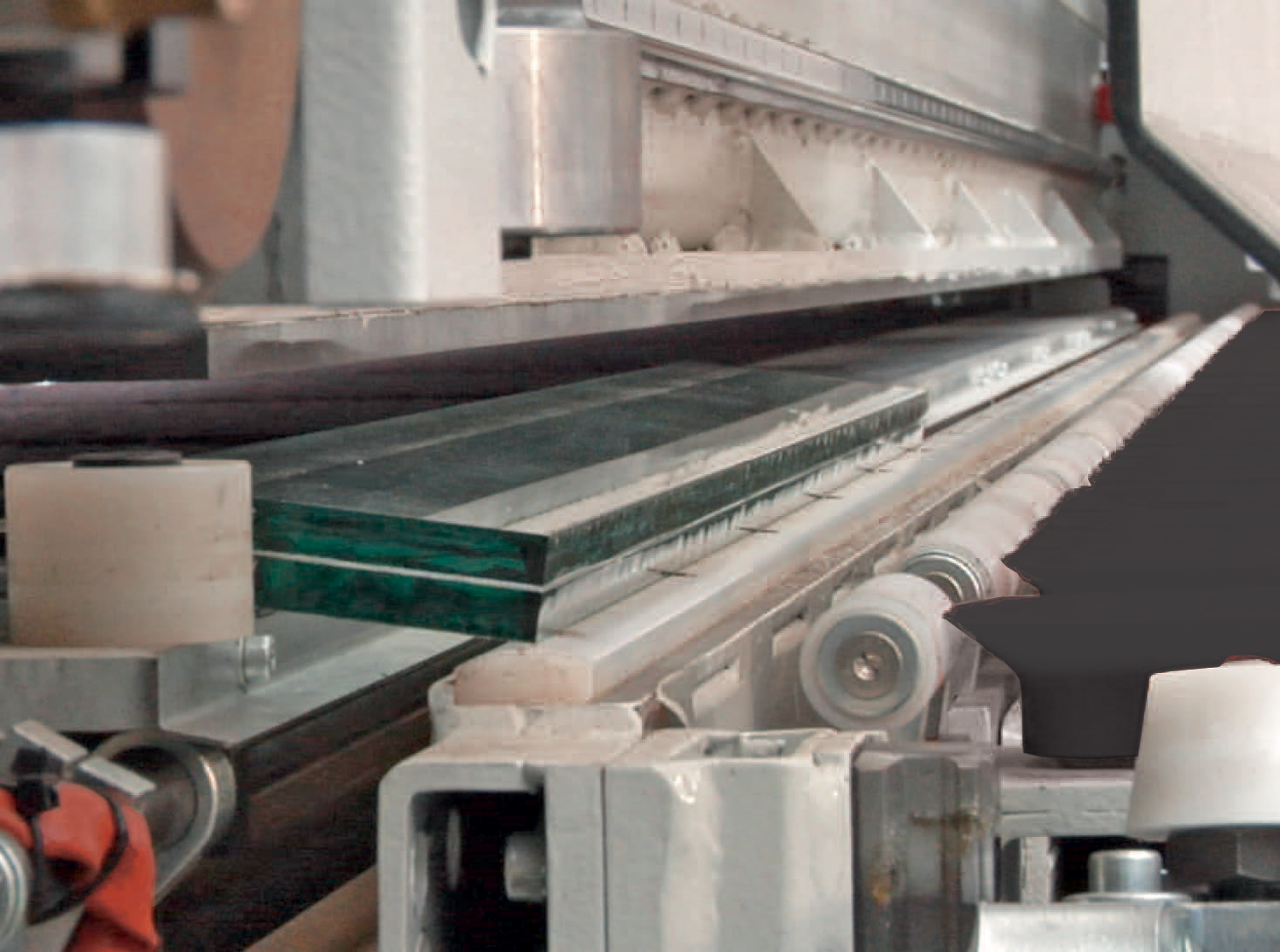

Slim Trim

Manual trim cut opening demands valuable time and a skilled operator. The machine automates the cutting, breakout, and PVB separation of trim cuts as narrow as 60mm, simplifying operations and ensuring constant production. Additionally, the smaller trim cut optimizes the cutting layout, increasing sheet yield and reducing waste.

Independent pressure, unmatched cutting precision

The upper and lower cutting heads are affected differently by gravity, and applying the same pressure can create imbalances in scoring operation that compromise cut quality. To address this, Intermac Cut Go L 0 includes two independent proportional valves for the cutting heads, typically seen only in high-end machines. This design ensures precise control over scoring force, delivering consistent, high-quality cut every time.

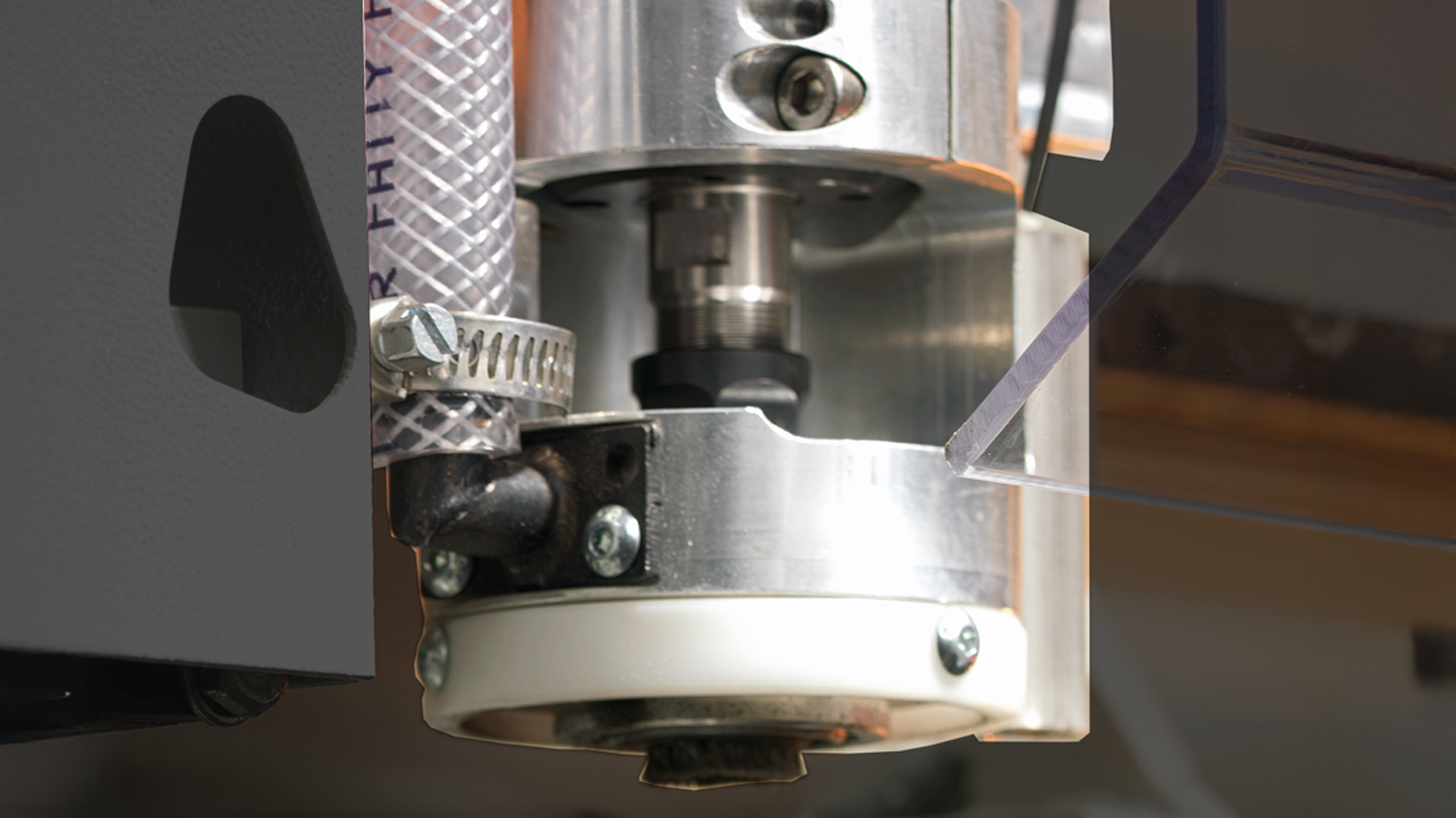

Effortless Low-E glass processing

A vertical brush with an independent motor is integrated into the machine for efficient Low-E coating removal. The unit features a dedicated dust collection system, ensuring a perfectly clean result, ready for the scoring operation.

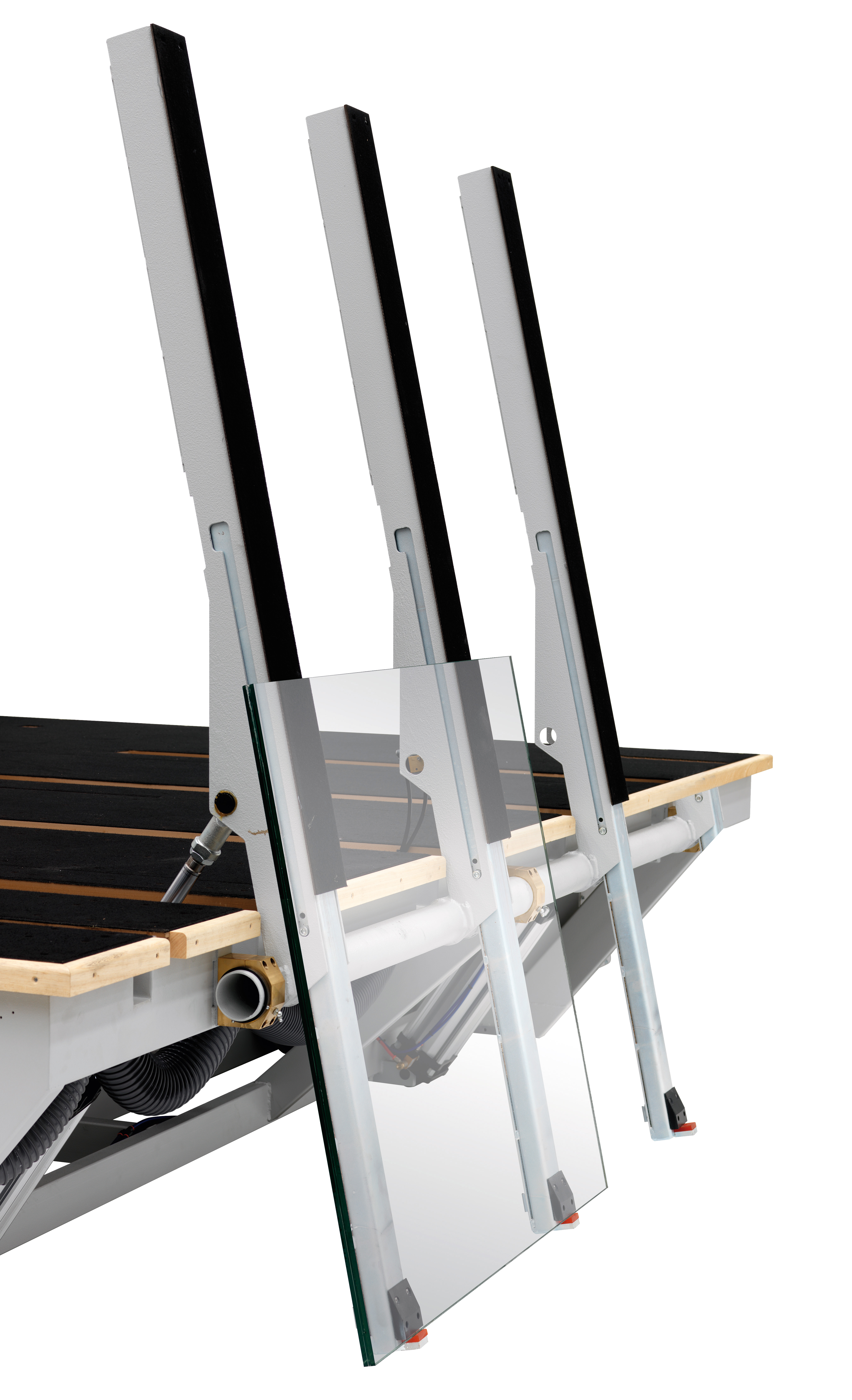

Space efficient design

Small size, small space required.
Featuring a compact footprint and a very low vertical volume, the machine can be installed in narrow spaces and low ceiling premises making it the perfect solutions to fit any space requirements.

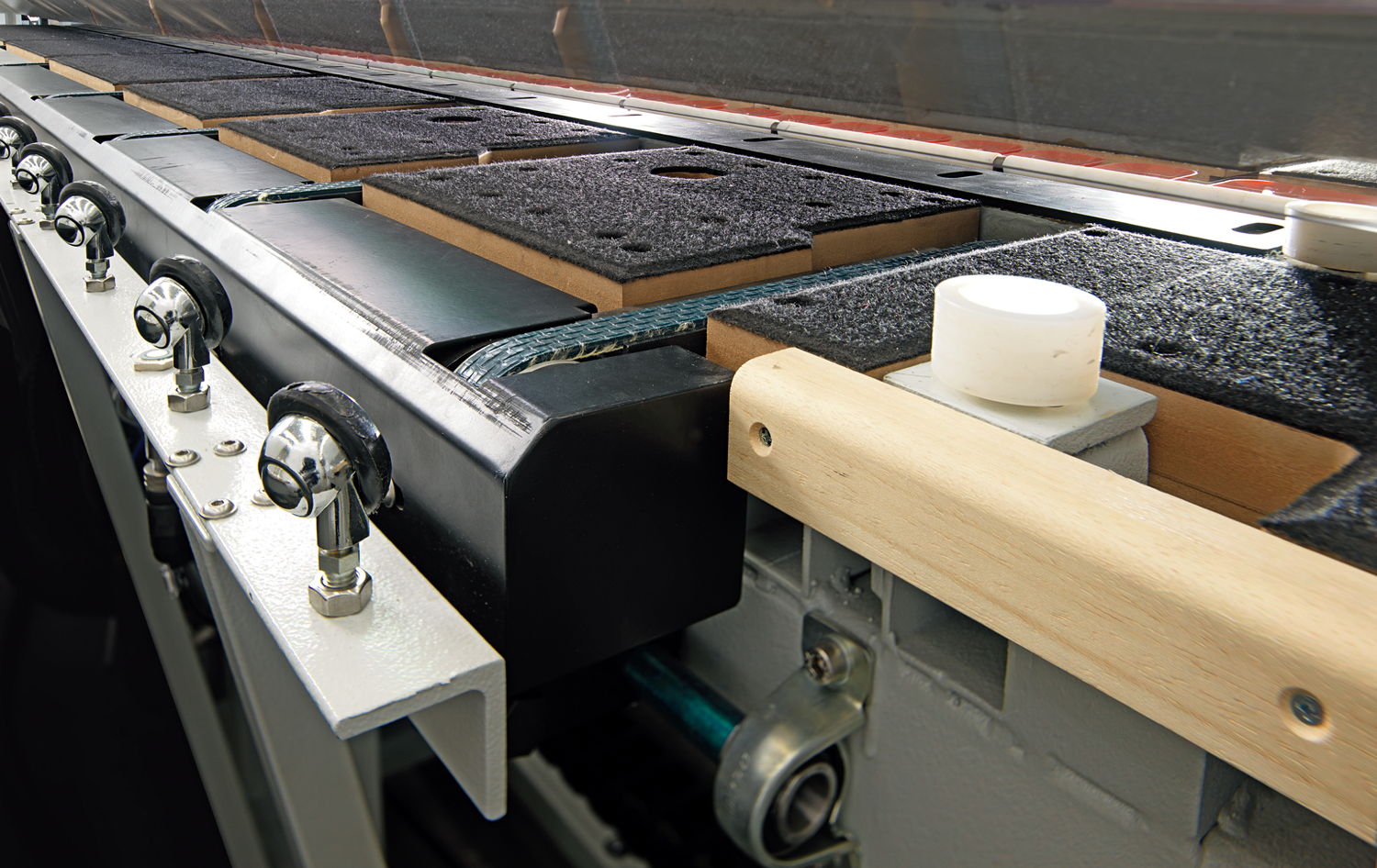

Efficient transport system for a smooth workflow

Following each cut, the integrated transport belts move the glass towards the work area, streamlining the repositioning process. This design eliminates time consuming tasks, such as reaching the back of the machine to push remnants or pulling the sheet out from inside the machine bridge, increasing the productivity up to 20%.

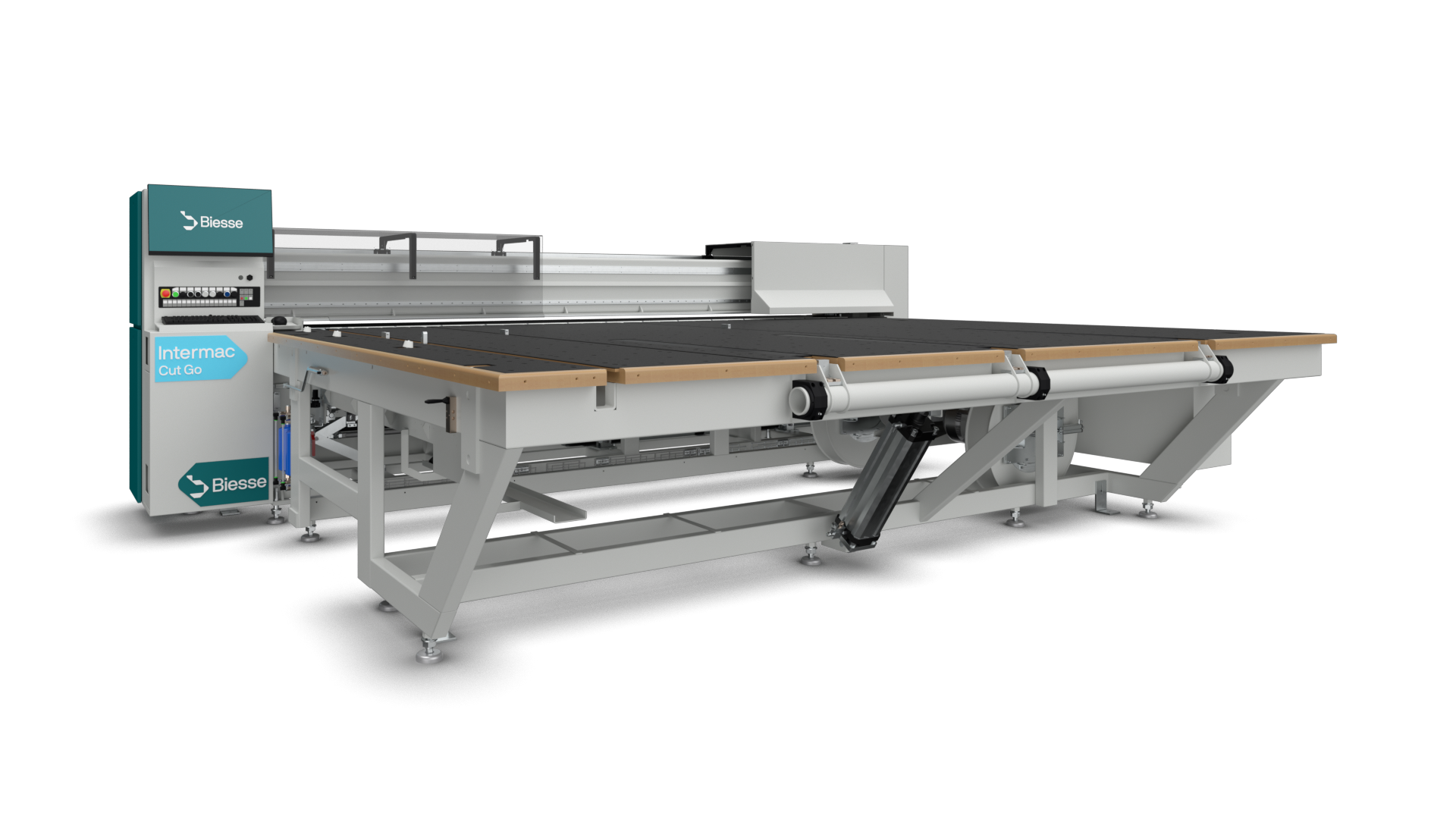

Easy-peasy

With its intuitive design, this machine is easy to operate, minimizing the learning curve and accelerating the training process, ideal for reducing production hiccups in environments with high operator turnover.

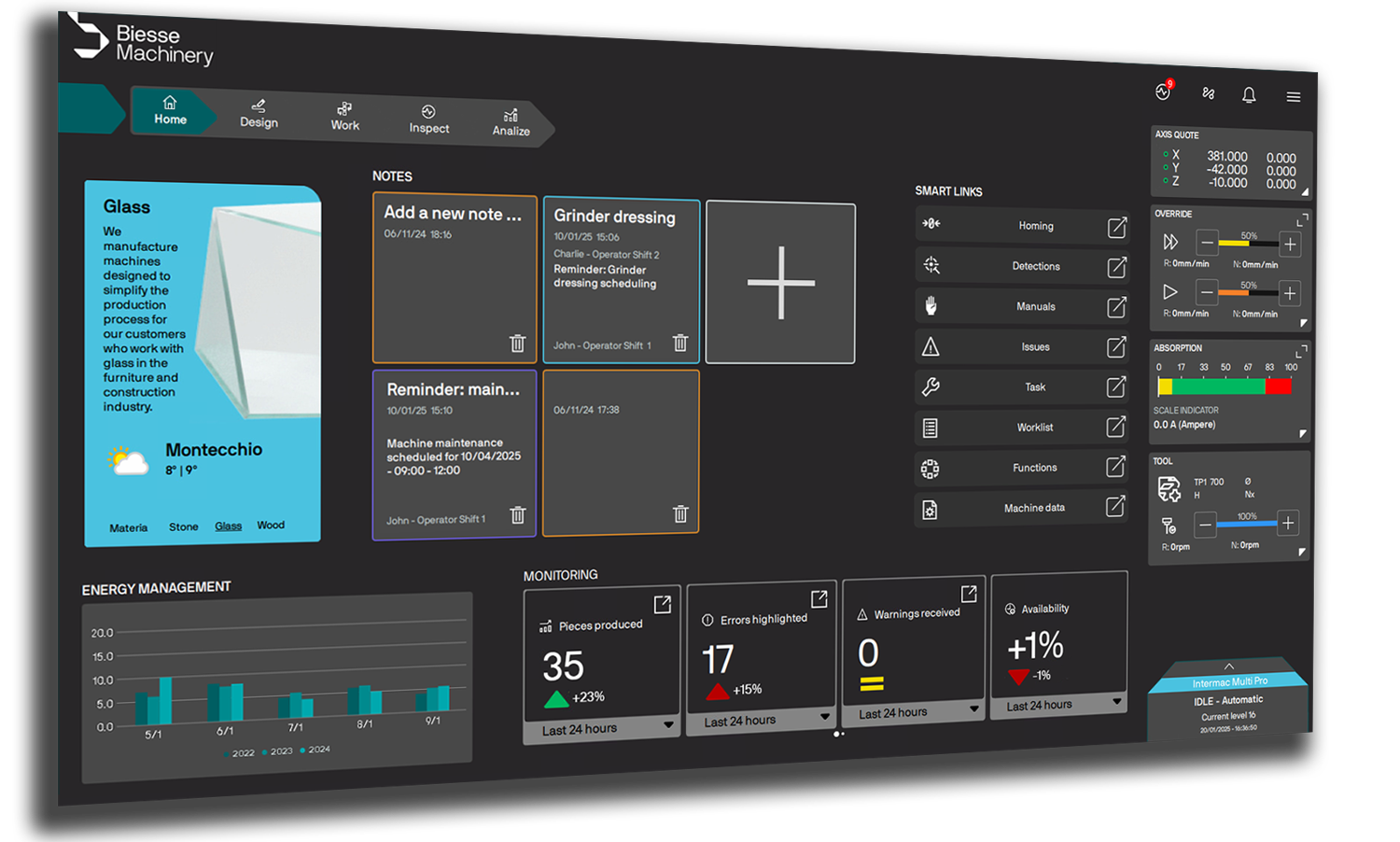

Human machine interface

A revolutionary interface enhances the user experience of Biesse machines, streamlining production processes like never before. This innovative system achieves its goal through improved usability, clear communication, and intuitive guidance, empowering operators to work more efficiently and with greater confidence.

Technical Specification

		Size 37
Max workable glass	mm	3710
Min workable glass	mm	150
Minimum breakout	mm	20 <44.2> - 60 <66.4>
Minimum PVB separation	mm	60
Workable glass thickness		33.1 - 1010.4
Max cutting speed	m/min	100
Low-E processing		BCR
Loading mode		Loading table - Tilting arms
Automatic glass handling		/

Applications

Laminated glass

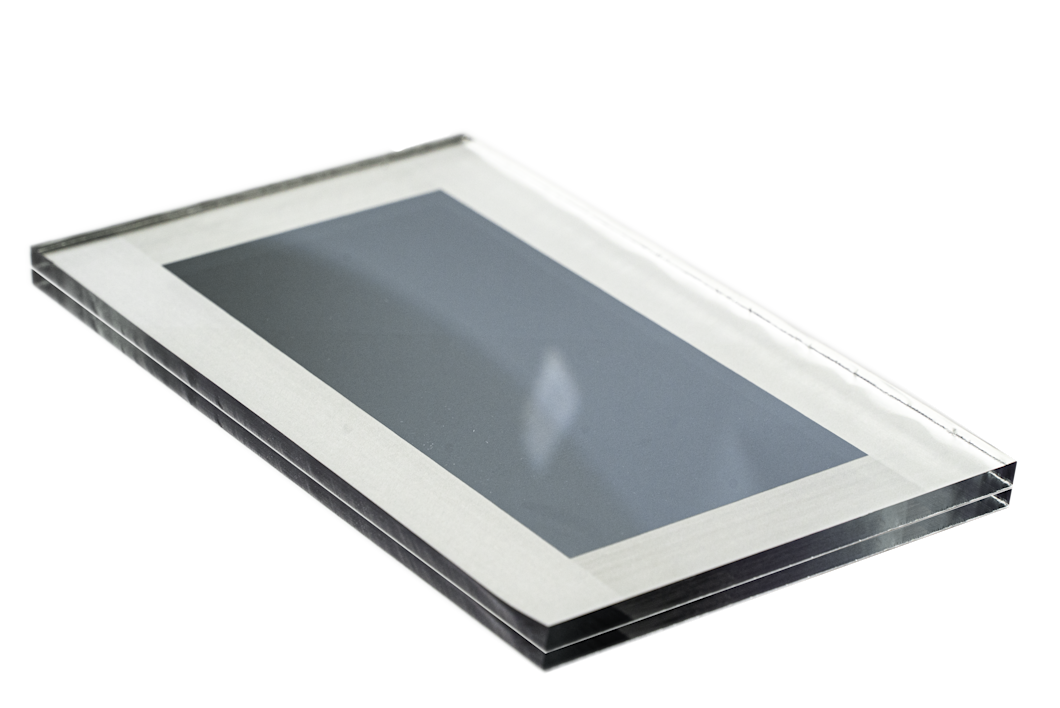

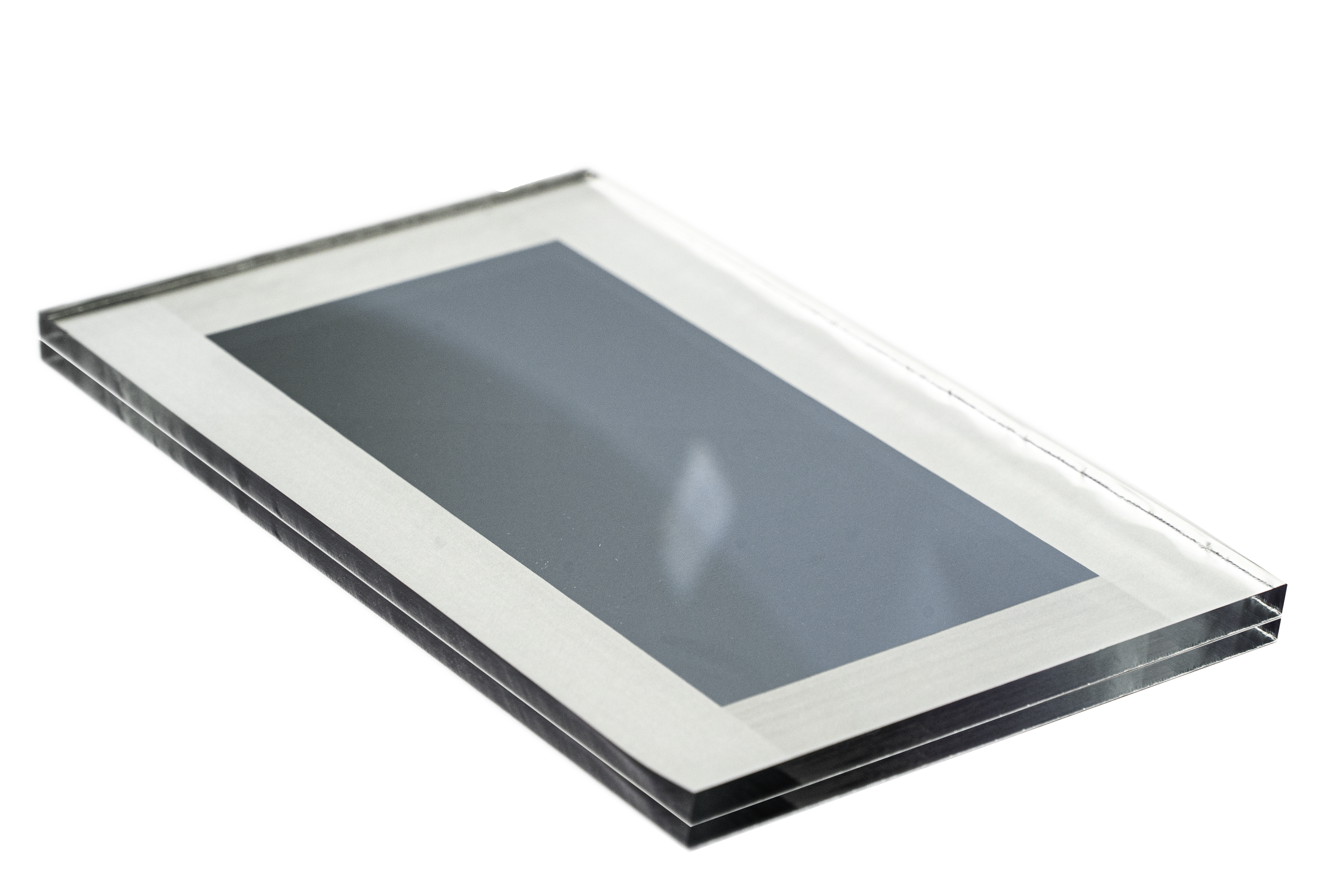

Low-E laminated glass

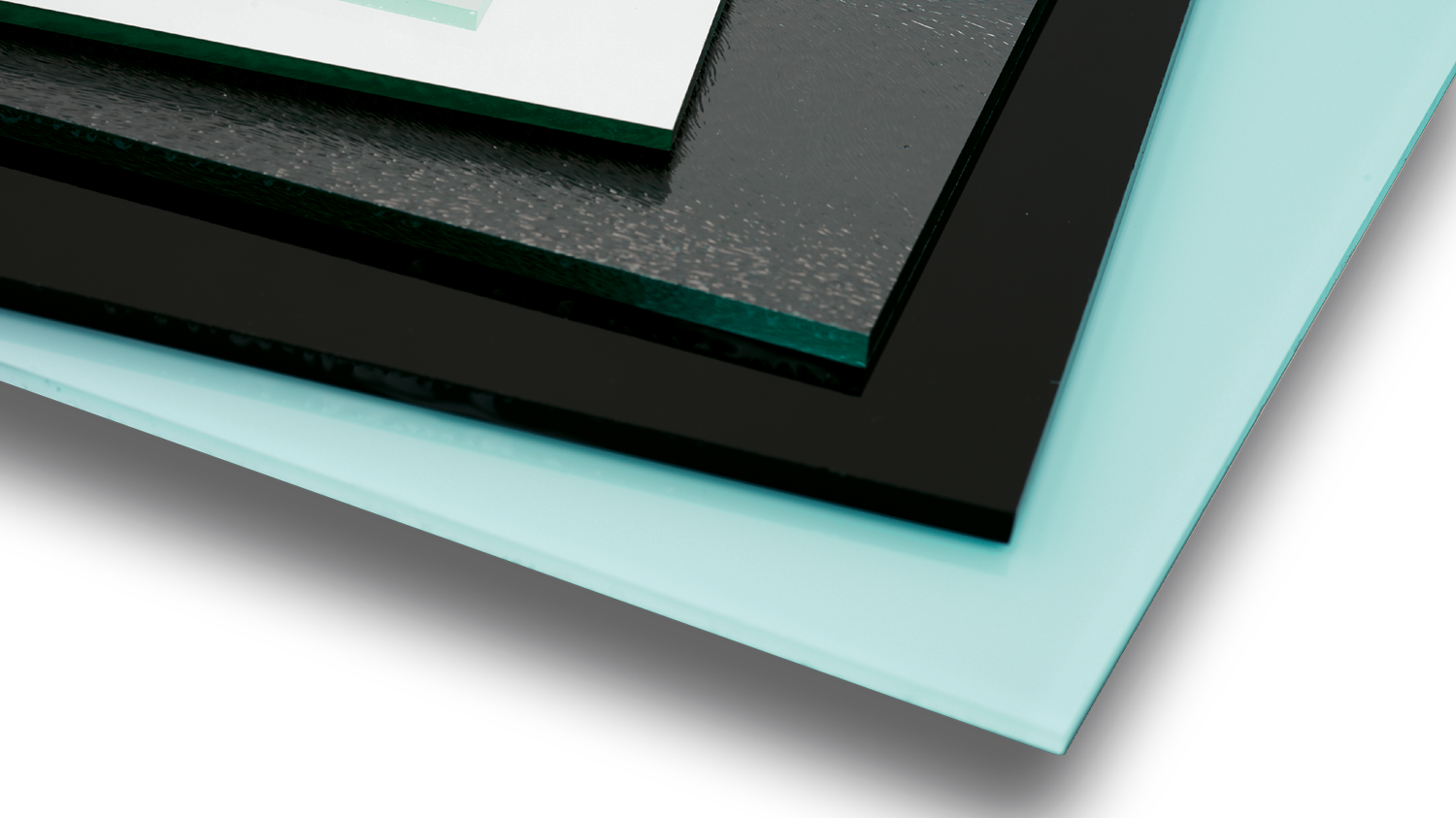

Monolithic glass
