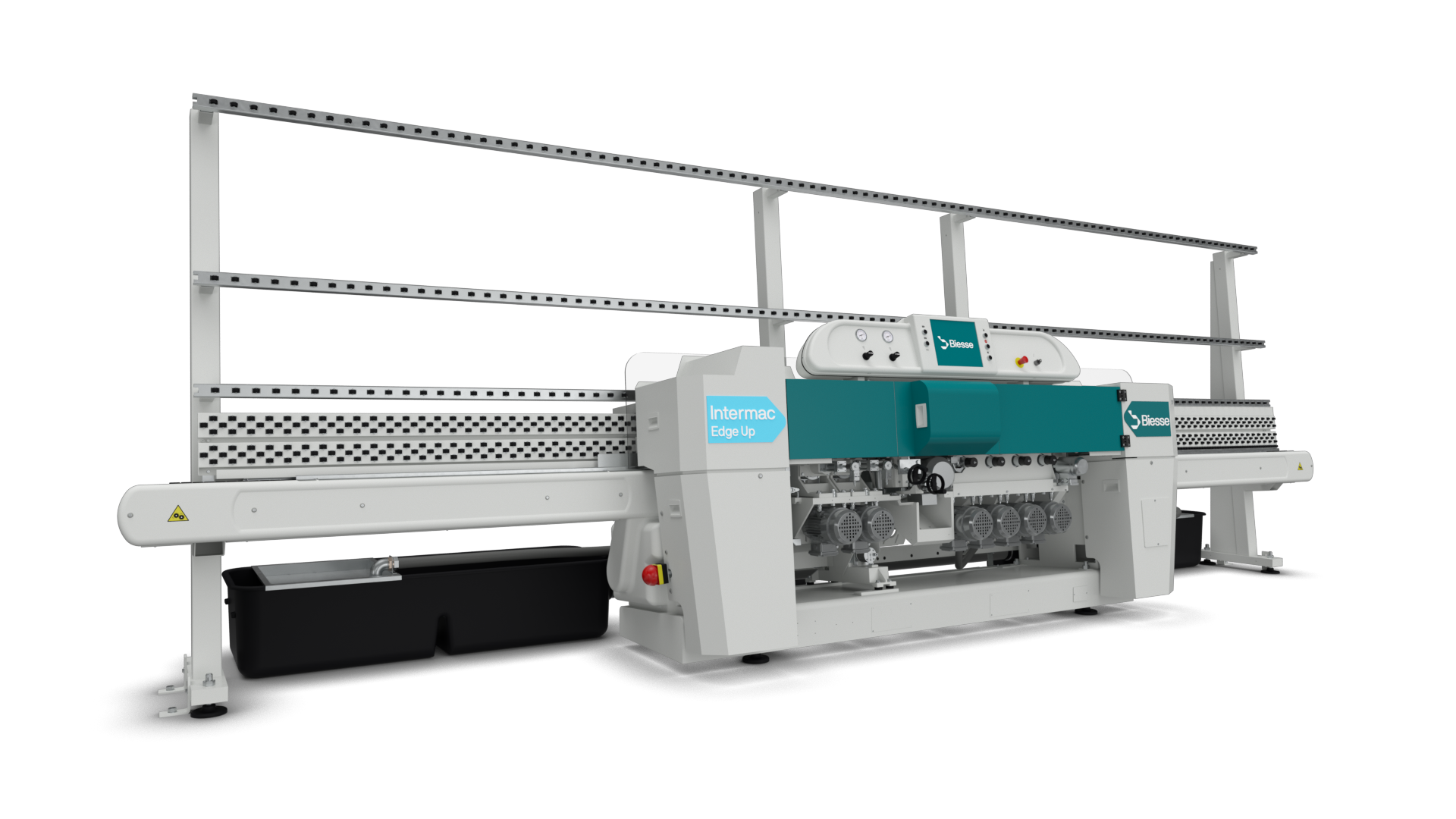

Intermac Edge Up S B35
The most popular beveling machines
The versatility is its great value.
An excellent machine for achieving a quality result with cutting-edge and reliable solutions, a balanced investment, capable of meeting the needs of most customers, also thanks to the 2 available versions.

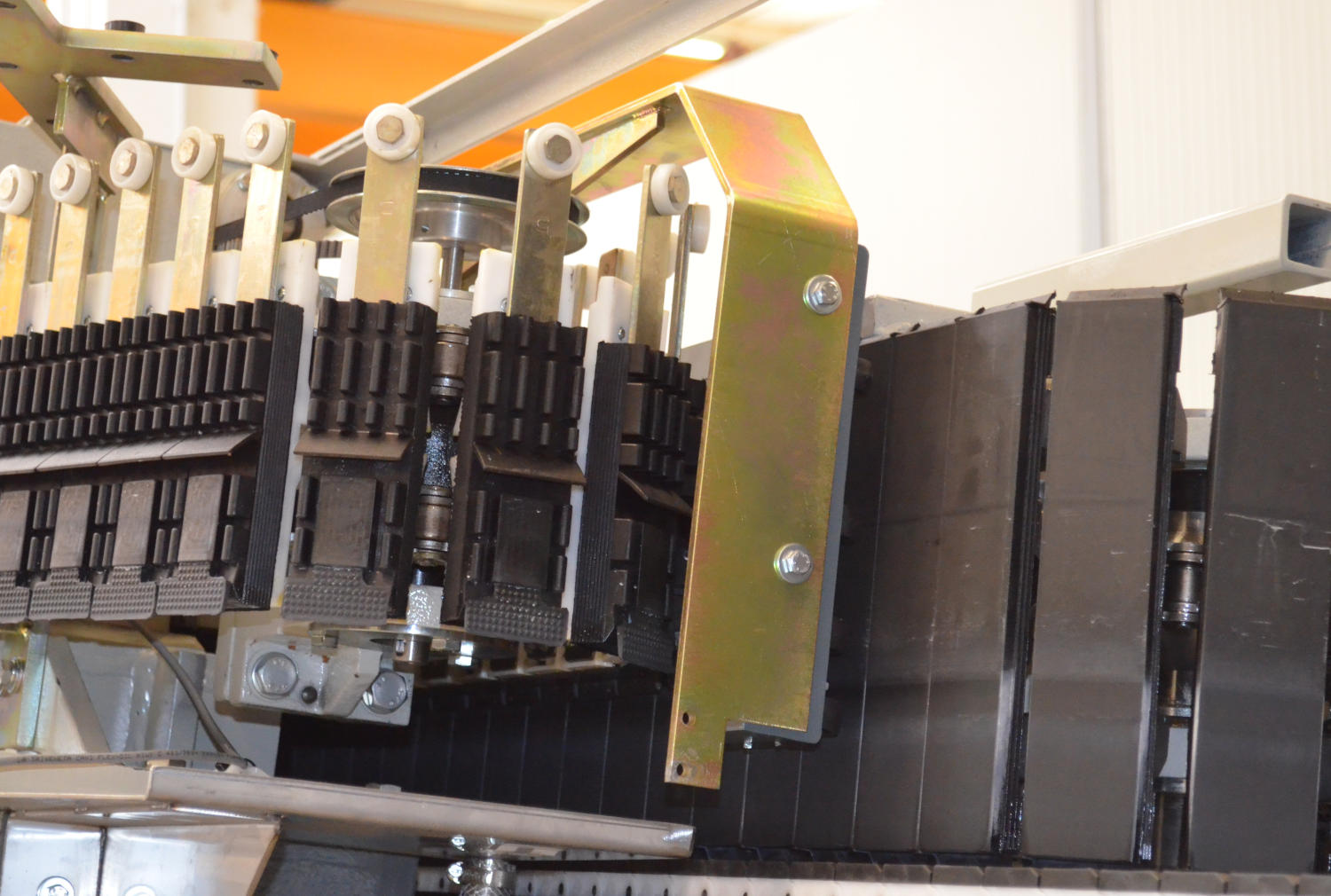

Without ball bearing to last longer
It consists of ground precision guides on which rubber-coated cast iron conveyors run without ball bearings, a distinctive feature that has always defined this brand.
This solution ensures low maintenance costs and consistently excellent performance.

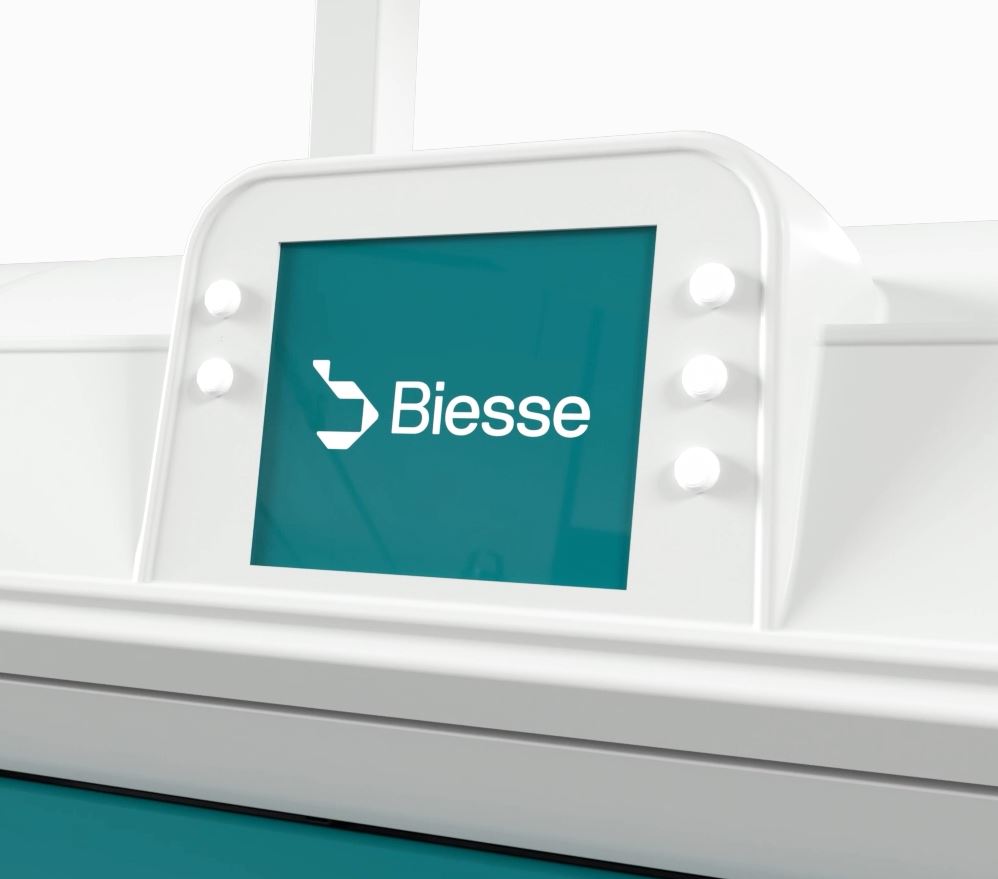

Wide color touchscreen monitor
10.4" color touchscreen monitor displays:
- bevel drawing
- automatic calculations of bevel geometry
- electrical motor absorptions
- maintenance interventions
- grinding wheels consumption monitoring"

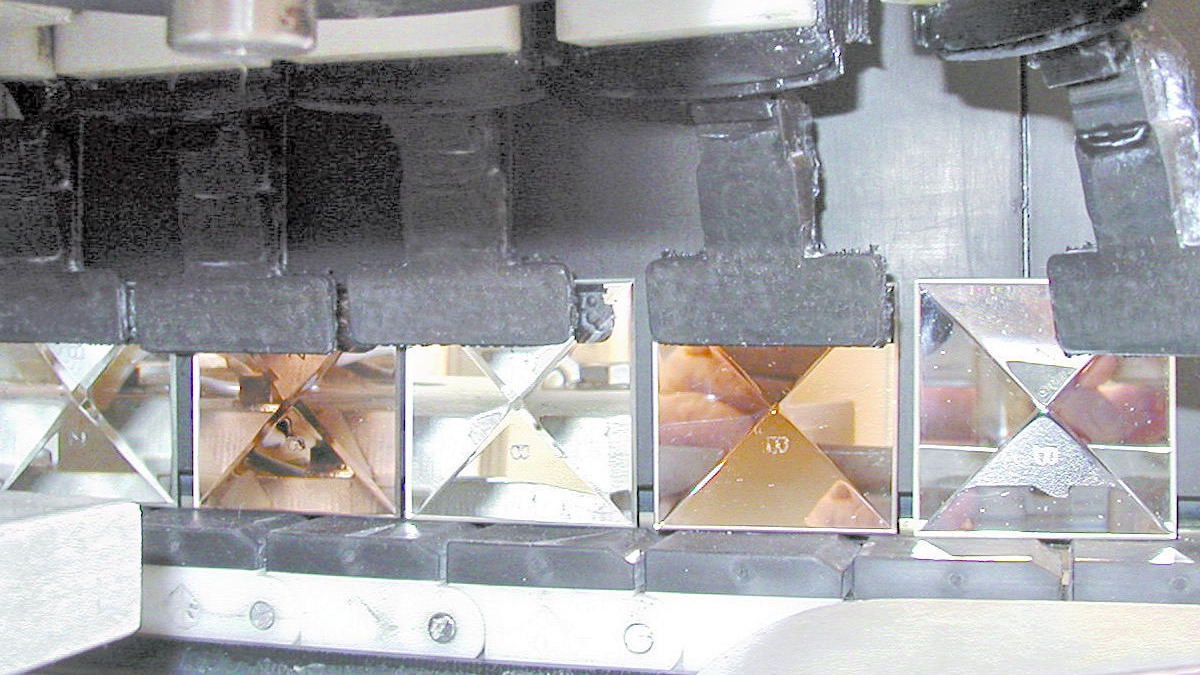

Extendable pads
The special system with extendable pads, distinctive characteristics of our bevelers, that is automatically operated by the machine control, allows working of pieces as small as 40x40 mm.

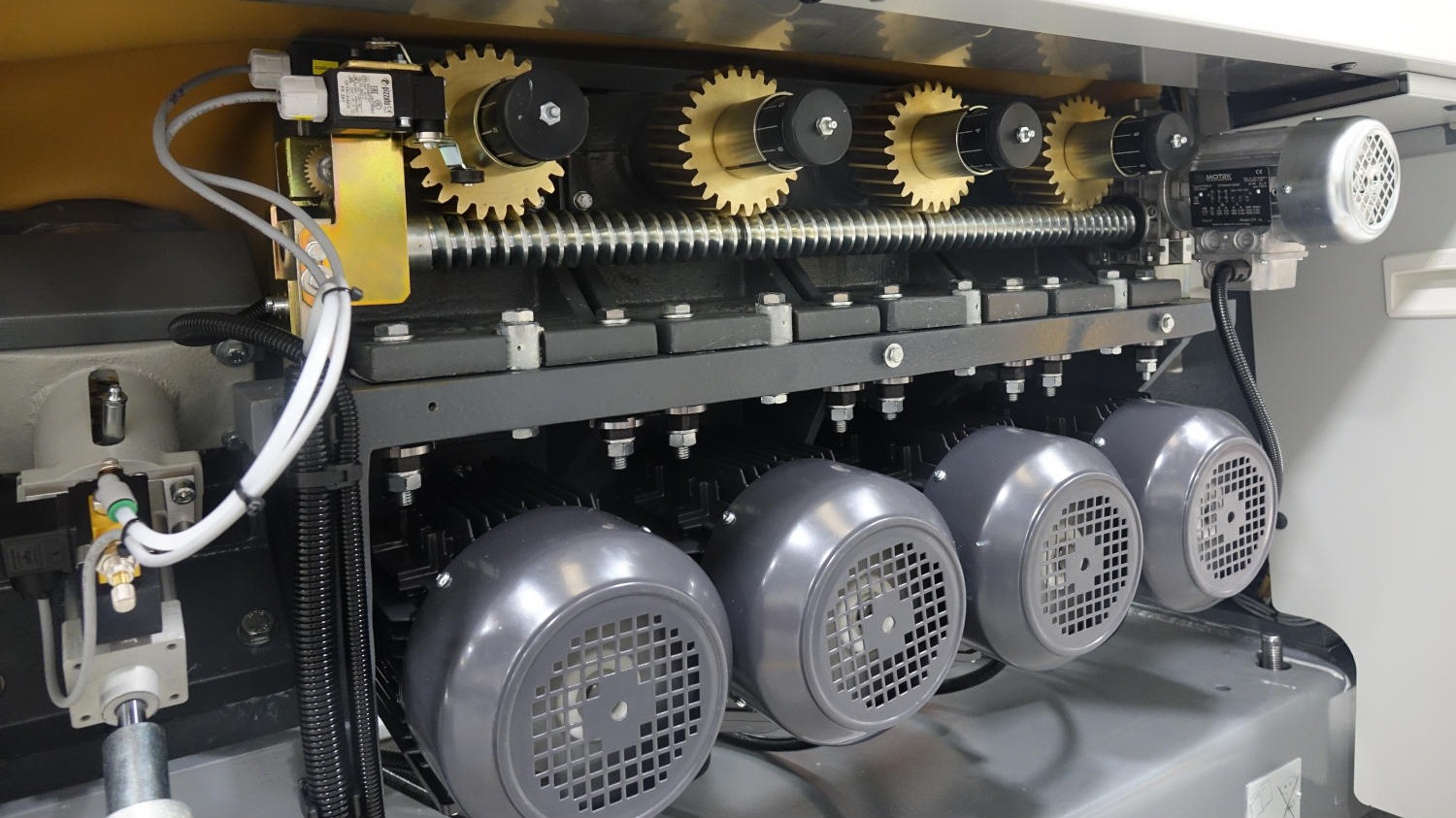

Change the beveling angle
Set by the operator via the Human Machine Interface, the bevel angle is adjusted with extreme precision thanks to the worm screw system, thus avoiding potential errors due to manual intervention.

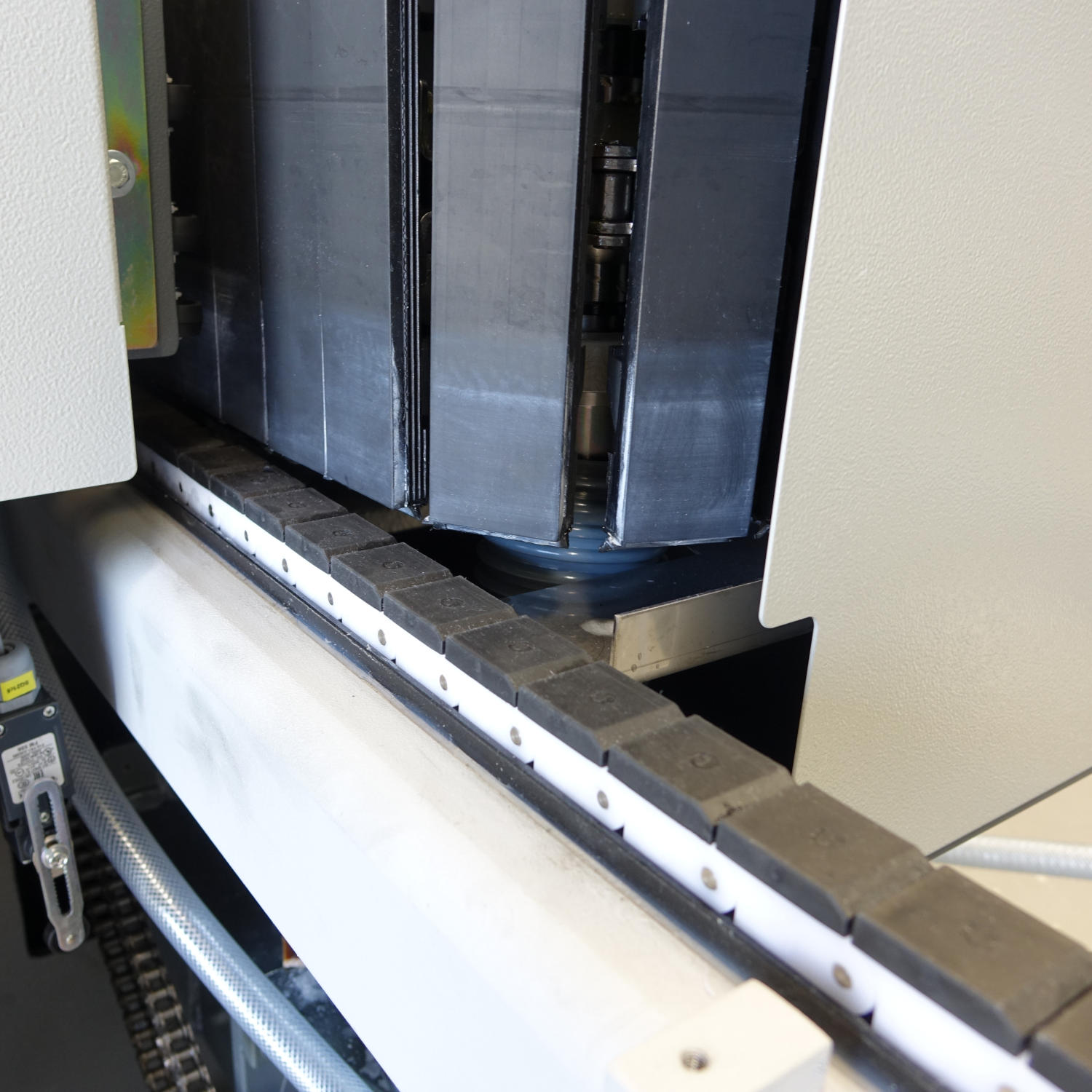

Glass in, glass out
The glass transportation on inlet and outlet arms is by means of Delrin made chains combined with rubber anti-friction pads.
All parts can be easily replaced one by one, ensuring low maintenance cost and fast change.

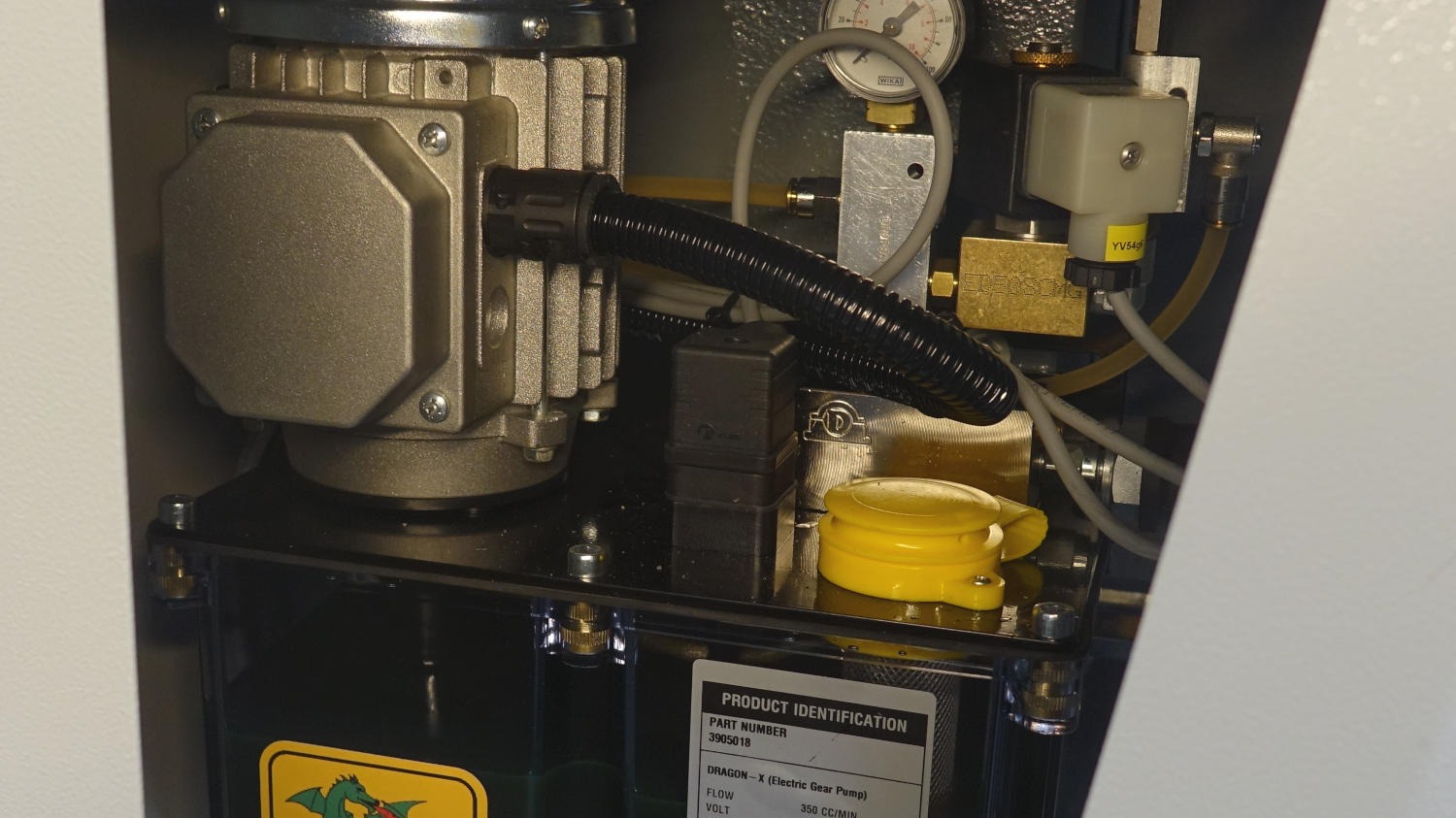

Centralized lubrication
The lubrication pump allows for greasing the conveyors with timed automatic cycles.
The durability of our bevelers is well recognized thank to the simplified maintenance process.
Smooth and vibration free
The processing spindles are isolated from the electric motor, with power transmission handled by belt and pulley to minimize any potential vibration.
Lubrication is ensured by long-life grease, optimizing performance and durability.
Technical Specifications
Applications
Interior furniture
Mirrors
