Intermac Cut Pro C

Digitaler Katalog

Registrieren Sie sich oder melden Sie sich an, um den digitalen Katalog herunterzuladen

Fordern Sie eine Demo an

Füllen Sie das Formular aus und geben Sie Ihren Bedarf an. Einer unserer Experten wird sich so schnell wie möglich mit Ihnen in Verbindung setzen.

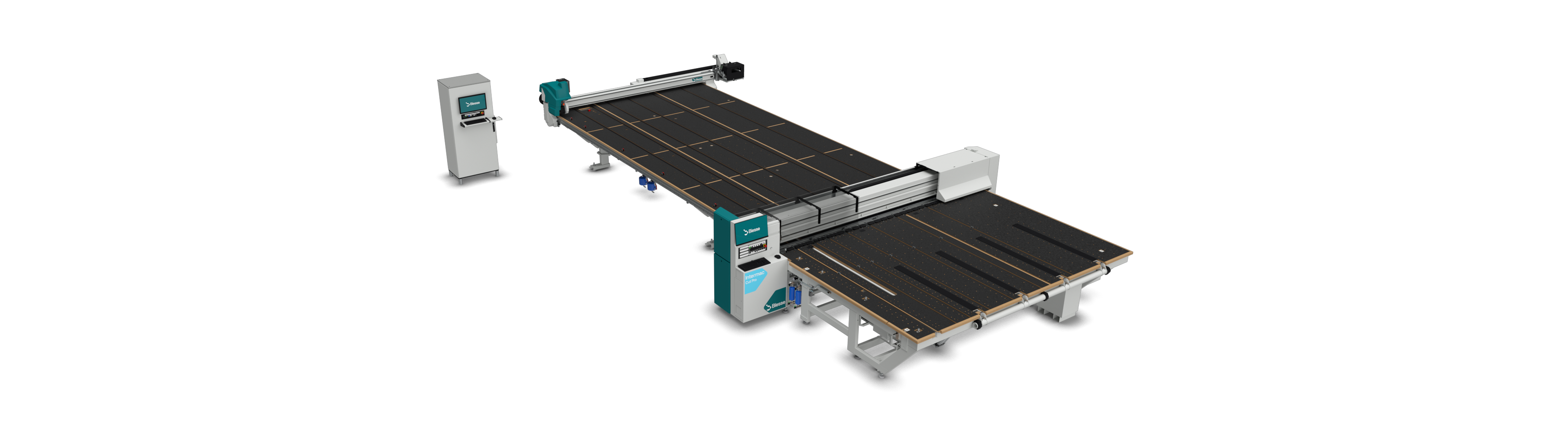

Integrierte Produktion für jeden Glastyp

Ein Doppelmaschinensystem, das die Verarbeitung von monolithischem und laminiertem Glas kombiniert, um Effizienz und Produktivität zu steigern.

The perfect combination

The system combines a monolithic glass cutting table with a laminated glass processing center, offering optimized functionality for both materials.

Shaped glass? We’ve got It covered

While shaped and out-of-square parts are standard for monolithic glass cutting tables, processing laminated glass presents additional challenges. Intermac Cut Pro C overcomes this by enabling the cutting curvilinear shapes through seamless interpolation between the squaring bridge and cutting head.

Digital pressure for consistent precision

Automatic cutting wheel pressure control via a digital proportional valve enhances cutting precision and overall quality on monolithic table.

Handling Every Glass, Maximizing Every Cut

When cutting monolithic glass, the first machine provides flexibility and precision for quickly cutting straight or shaped geometries, while the laminated glass machine automates X cuts breaking and serves as a service table for manual Y cuts opening, improving workflow efficiency. When processing laminated glass, the monolithic table becomes a service station with advanced transport and buffer systems, enabling seamless automated production with automatic rotation and processing stages. .

Track Every Cut

Manual tracking of cut glass is no longer required with an Intermac Cut Pro C.

It automatically applies labels before scoring, ensuring precise identification of each cut part and eliminating operator errors.

Engineered for Every Thickness

Engineered for precision and performance, the system can process monolithic glass from 3 to 25mm and automatically breaks the X cuts using the reinforced breakout bar of the laminated glass machine up to 10mm.

Clean edges, prefect cuts

Tangential wheel units with independent motors, installed on both monolithic and laminated glass cutting bridges, ensure efficient low-E coating removal for seamless scoring and breaking. .

Main Technical Data

Version P	Unit	Size 37	Size 46
Monolithic machine
Max workable glass	mm	6100 x 3355
Min workable glass	mm	500 x 600
Workable glass thickness	mm	mar-25
Max vector speed	m/min	200
Low-E processing		BCR - TCR
Laminated machine
Max workable glass	mm	3710	4600
Min workable glass	mm	150
Min breaking	mm	60 (<20 up to 66.4>)
Min separation	mm	60 (<20 up to 66.4>)
Workable glass thickness	mm	22.1 - 1010.4
Max cutting speed	m/min	150
Low-E processing		BCR - TCR
Common
Loading mode		Loading table - Air cushion - Tilting table

Version Red	Unit	Size 37
Monolithic Machine
Max workable glass	mm	3710 (3810*) x 2750
Min workable glass	mm	500 x 600
Workable glass thickness	mm	mar - 19
Max vector speed	m/min	200
Low-E processing		BCR - TCR
Laminated Machine
Max workable glass	mm	3710
Min workable glass	mm	150
Min breaking	mm	60 (<20mm up to 66.4>)
Min separation	mm	60 (<20mm up to 66.4>)
Workable glass thickness	mm	22.1 - 88.12 (1010.4)
Max cutting speed	m/min	150
Low-E processing		BCR - TCR
Common
Loading mode		Loading table - Air cushion - Tilting table
Automatic Glass Handling		Conveyor belts
