Explora Multi Up N B

Digitaler Katalog

Registrieren Sie sich oder melden Sie sich an, um den digitalen Katalog herunterzuladen

Fordern Sie eine Demo an

Füllen Sie das Formular aus und geben Sie Ihren Bedarf an. Einer unserer Experten wird sich so schnell wie möglich mit Ihnen in Verbindung setzen.

High precision and reliability over time

Explora Multi Up N B is the flat-table machining centre designed for companies that require high productivity, reliability and versatility in the processing of plastics, composites and advanced materials. Combining a rigid structure with advanced technology, it delivers consistent machining quality and dependable performance, helping manufacturers handle demanding applications with confidence.

Configuration tailored to your production

A highly configurable machining centre designed to adapt to different production requirements and factory layouts. Multiple configurations are available, including dual carriage for higher productivity, full-bumper protection for easy access from all sides, automated loading and unloading solutions and HD versions for enhanced dynamic performance.

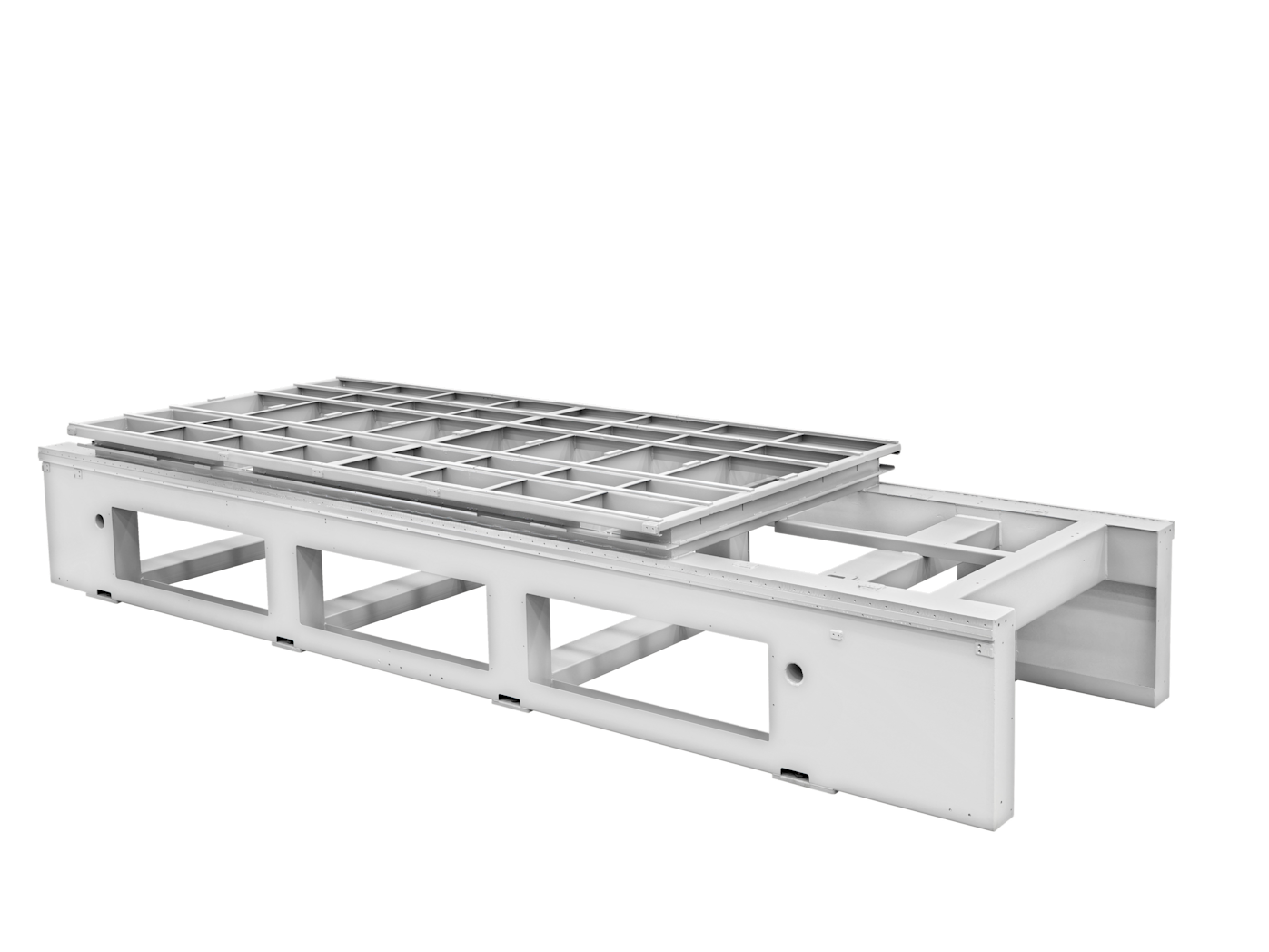

Robust structure for rigidity and precision

The frame of the Explora Multi Up N B delivers outstanding precision and long-term reliability, thanks to FEM analysis and a rigid electro-welded steel construction featuring a closed-ring architecture. This design minimizes deformation and enhances accuracy across all machining processes.

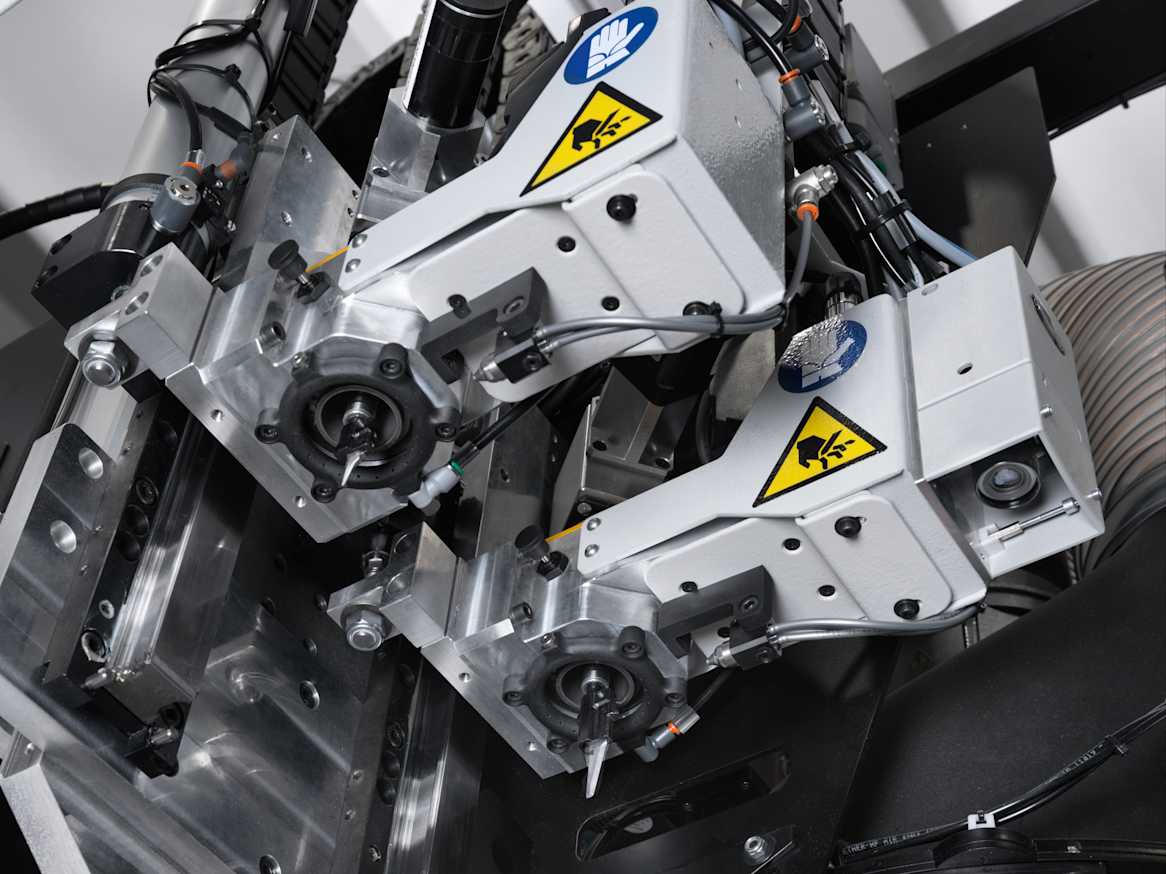

Flexible operating unit solutions

Operating units combined with an external vertical axis for knife cutting, allow the machine to handle a wide range of materials and applications. The availability of a dual-carriage configuration further increases productivity, enabling simultaneous machining operations and reduced cycle times.

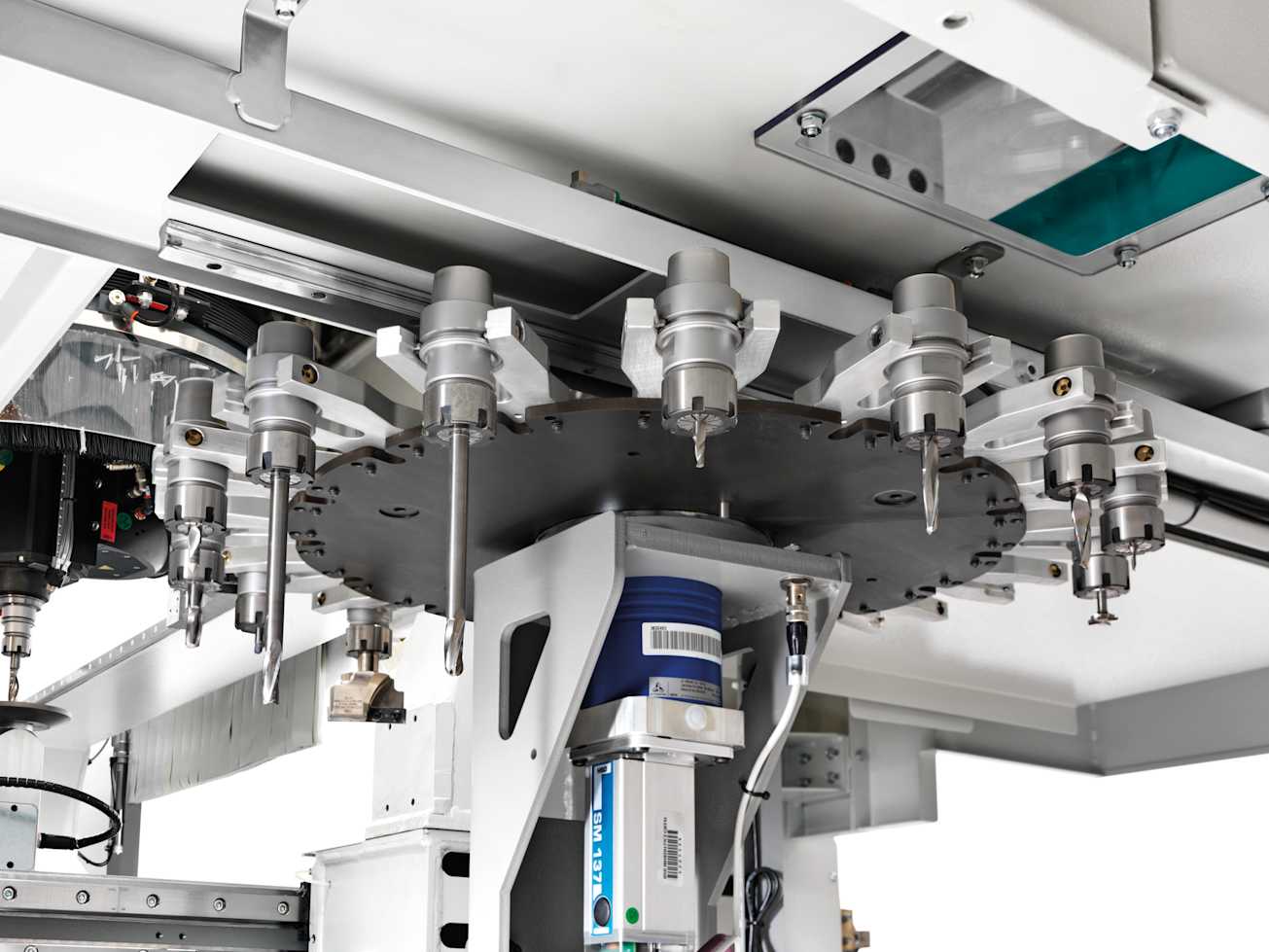

Optimized tool management

Tools and aggregates are always available to reduce setup times, thanks to a wide range of tool magazine solutions.

T-JET: Patented cleaning technology

The patented T-JET system works in perfect synergy with the CNC-controlled suction hood to efficiently remove chips and dust directly at the source. By following the machining trajectory and automatically adjusting the hood position, the system ensures effective extraction, cleaner surfaces and improved finishing quality, even during high-speed machining operations.

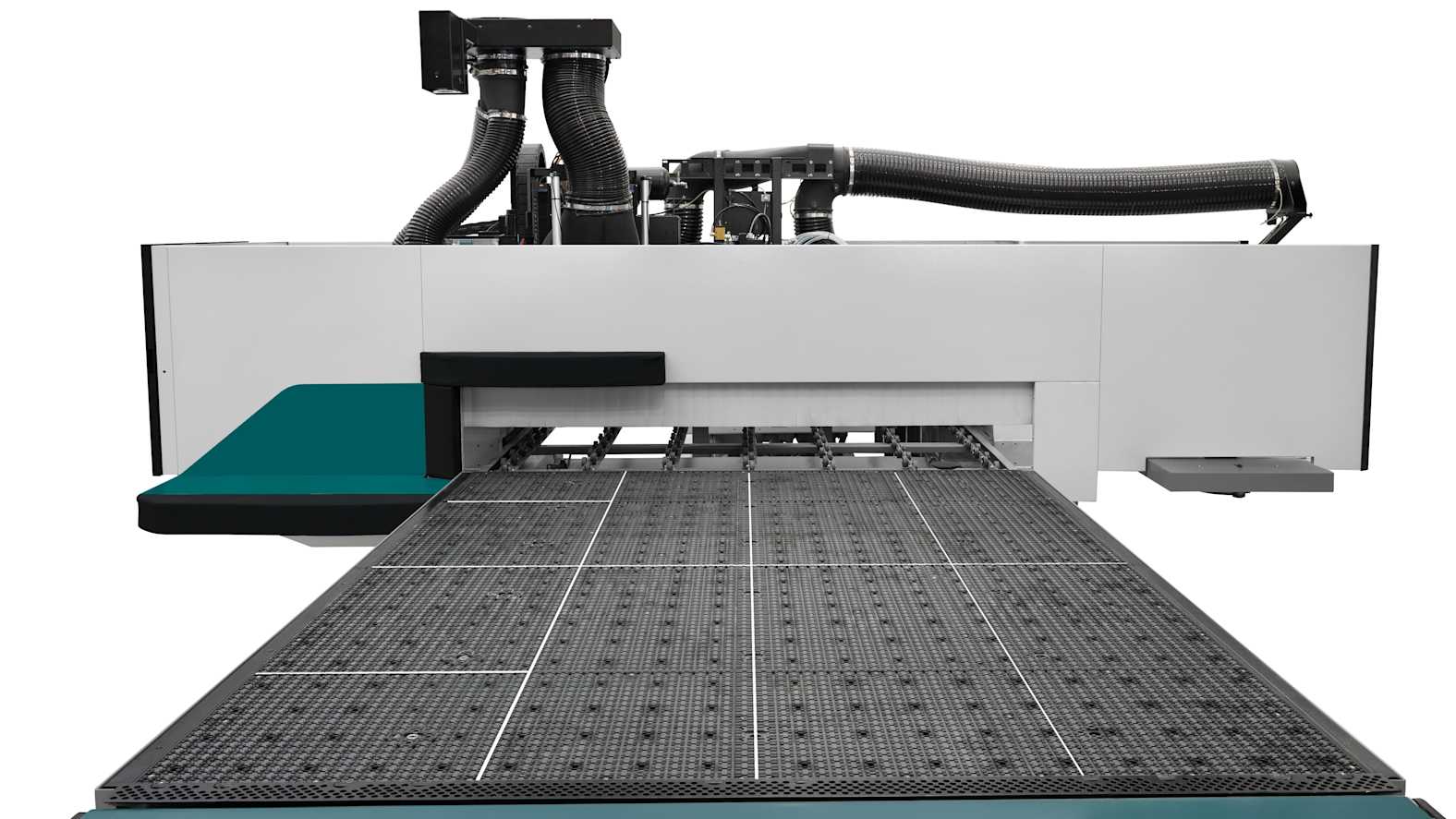

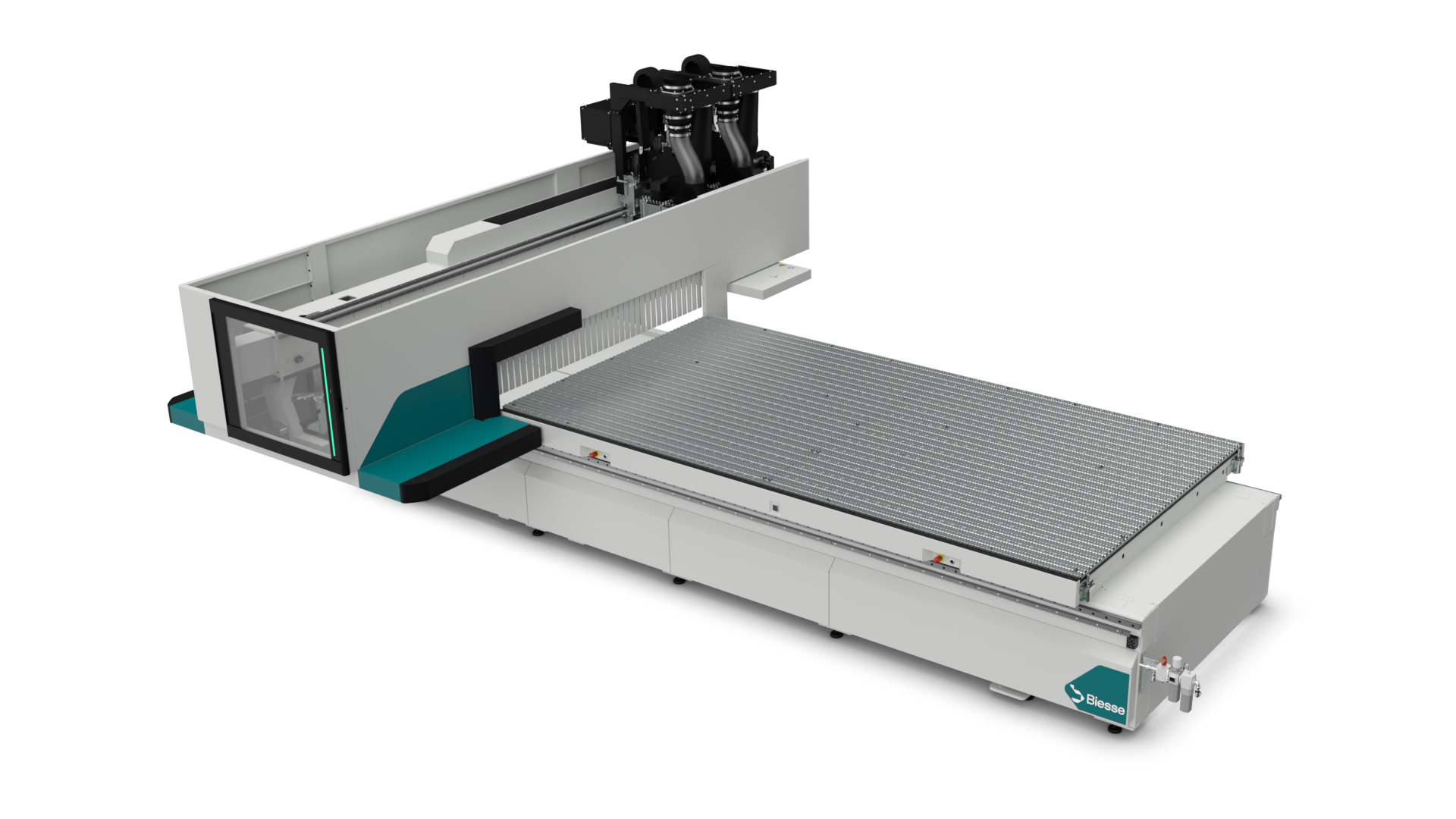

Large working area for maximum flexibility

With a worktable designed for large-format workpieces, the machine easily handles oversized panels and components, giving you the flexibility to switch between small and large jobs without constraint, while maintaining precision, stability and performance.

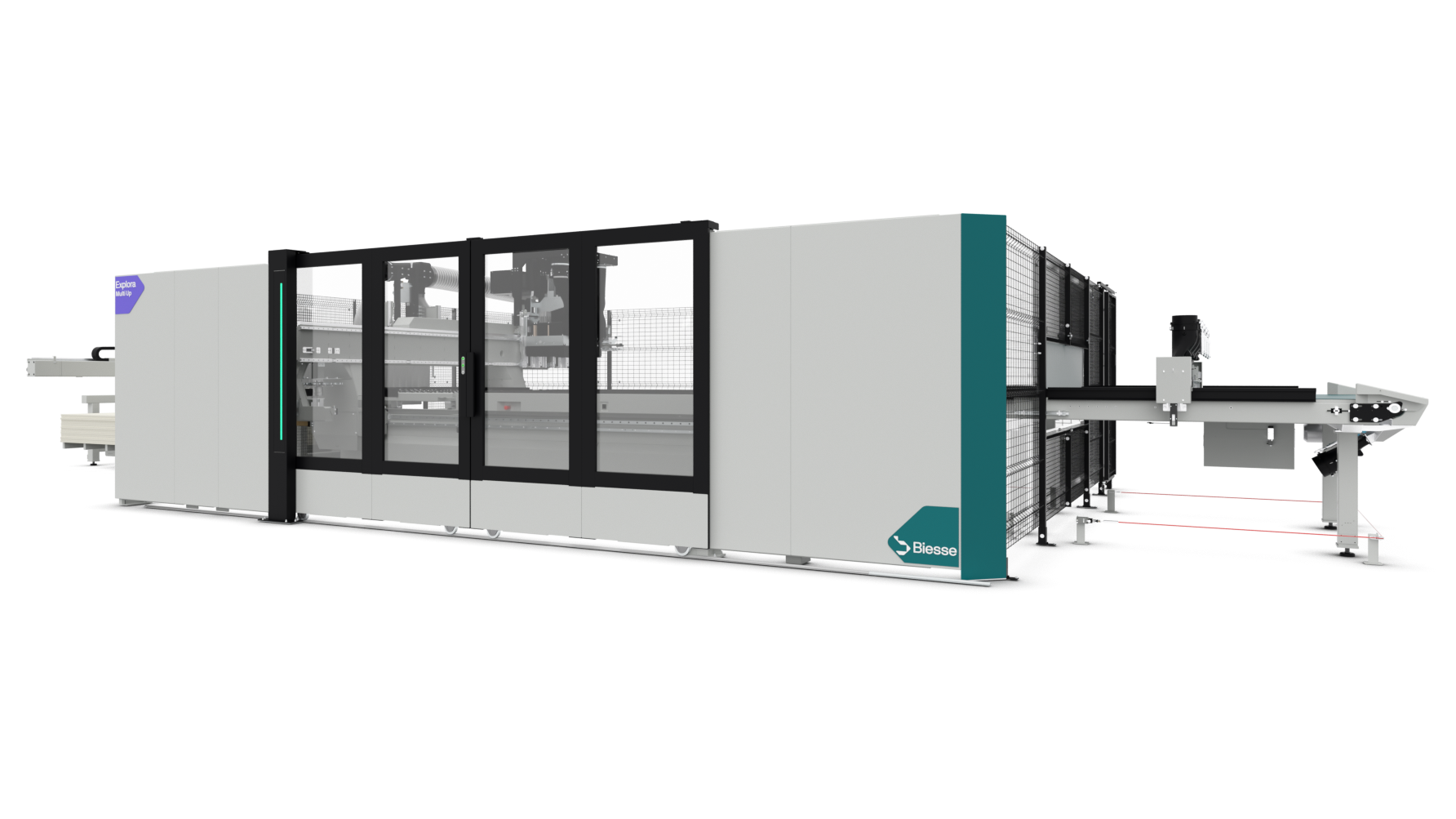

HD configuration for increased productivity

The HD configuration is engineered for high-speed machining and demanding production cycles. Advanced axis drives and optimized transmission systems enable higher speeds and accelerations, reducing waiting times during direction changes and significantly shortening cycle times.

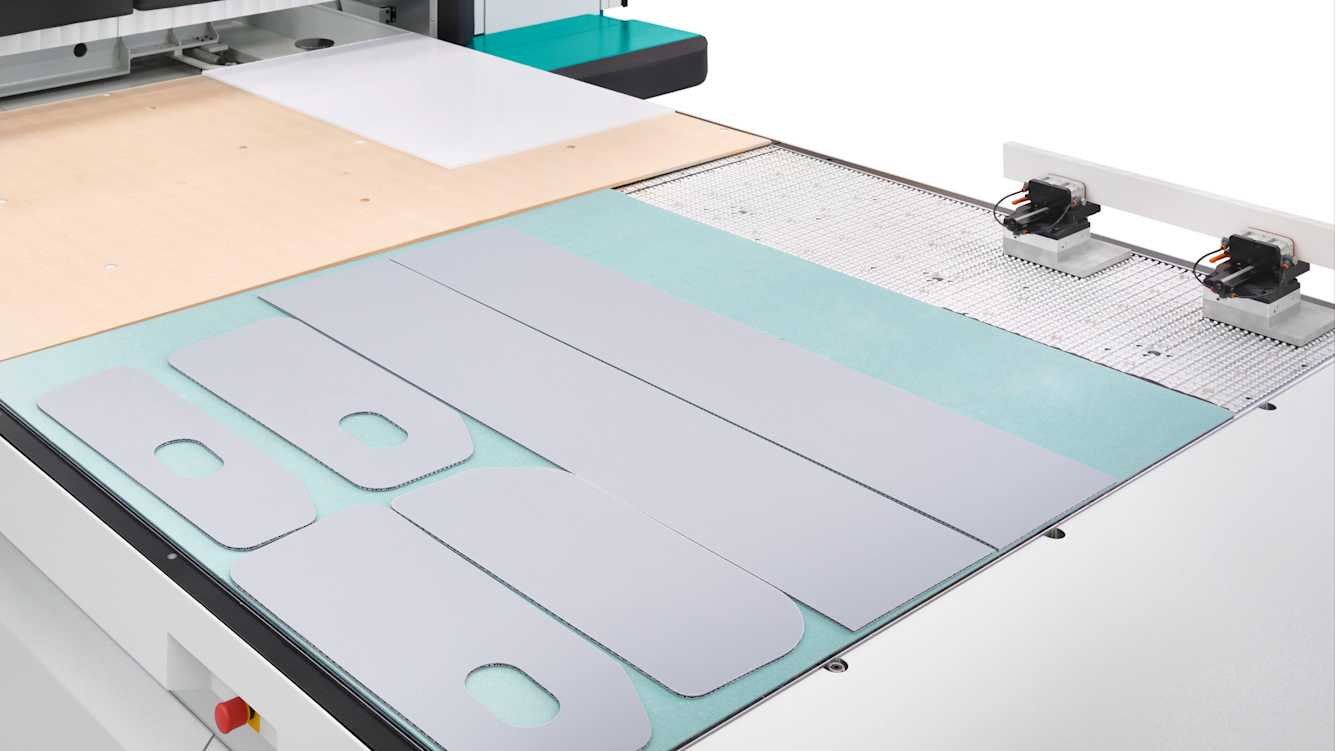

Worktable solutions designed for every processing need

The working table can be equipped with a wide range of dedicated solutions to ensure optimal holding for different types of materials, including a high-capacity worktable for breathable materials, a flat worktable for materials processed with cutting units, and clamping systems for securely holding small pieces.

Technical Specification

		1531	1536	1564	1836	2231	2243	2264
Working fields X	[mm]	3100	3765	6450	3765	3100	4300	6450
Working fields Y	[mm]	1560	1560	1560	1875	2205	2205	2205
Max. workpiece thickness	[mm]	310	310	310	310	310	310	310
Max. workpiece thickness with sweeping arm	[mm]	250	250	250	250	250	250	250
H- max	[mm]	2770	2770	2770	2770	2770	2770	2770
H- max High Dynamics	[mm]	2870	2870	2870	2870	2870	2870	2870

Kinematic characteristics

		X	Y	Z	Vector
High Speed Linear speed	[m/min]	85	60	35	120
High Speed acceleration	[m/s²]	3,5	5	5	/
High Dynamics Linear speed	[m/min]	128	114	35	172
High Dynamics acceleration	[m/s²]	10	10	10	/
