Intermac Multi Up S H3S

Catalogue numérique

Inscrivez-vous ou connectez-vous pour télécharger le catalogue numérique

Demandez une démo

Remplissez le formulaire en précisant votre demande. L’un de nos experts vous contactera dans les plus brefs délais.

Stairway to perfection

Full versatility for every use.
We drove the trend, We drive the processes.
Leading the way, setting the standard – the benchmark of excellence in our industry.

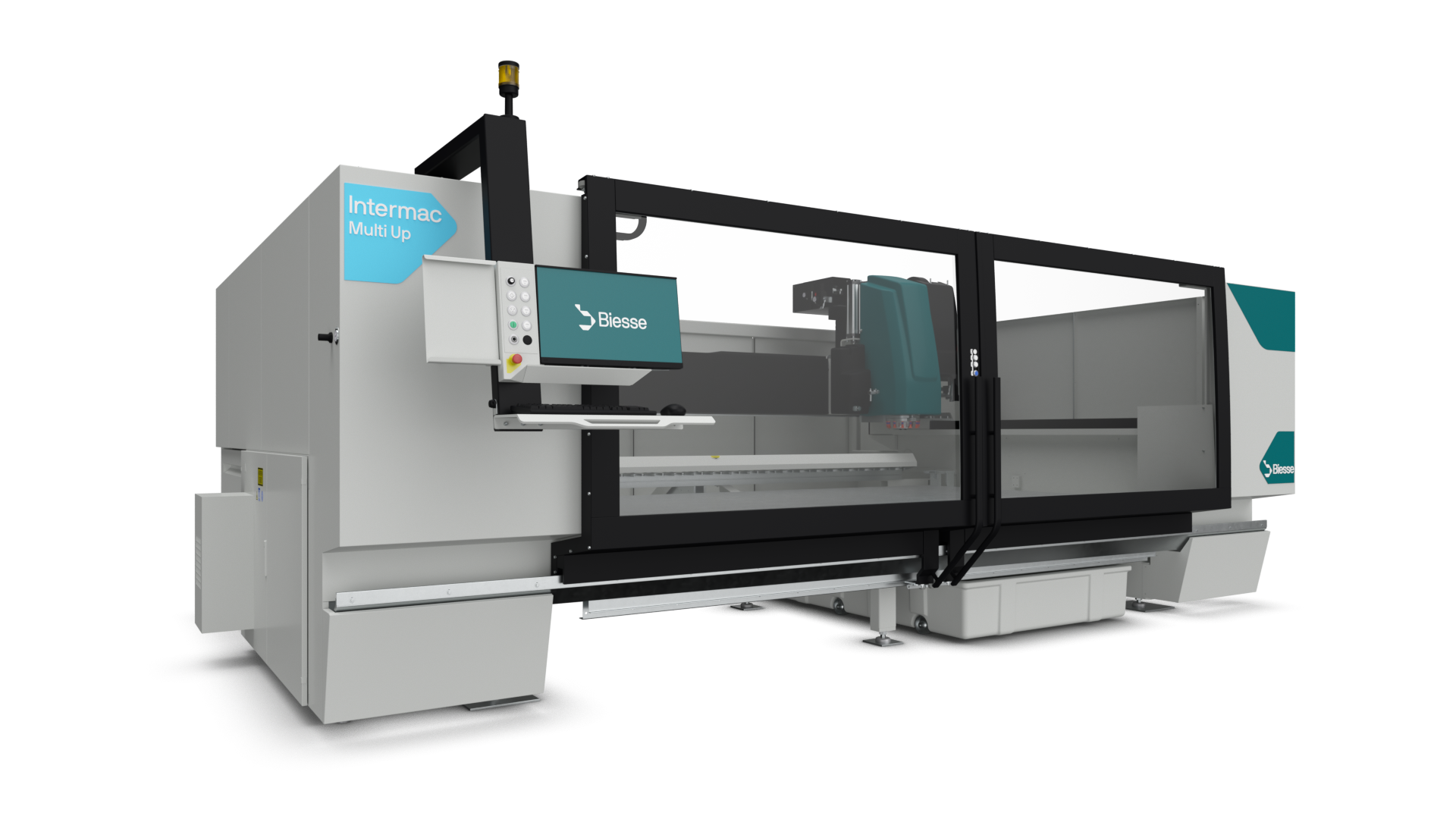

Horizontal NC centre to process the edge as well as the surface of any glass shape. Perfectly designed for medium-sized businesses, empowering growth and efficiency.

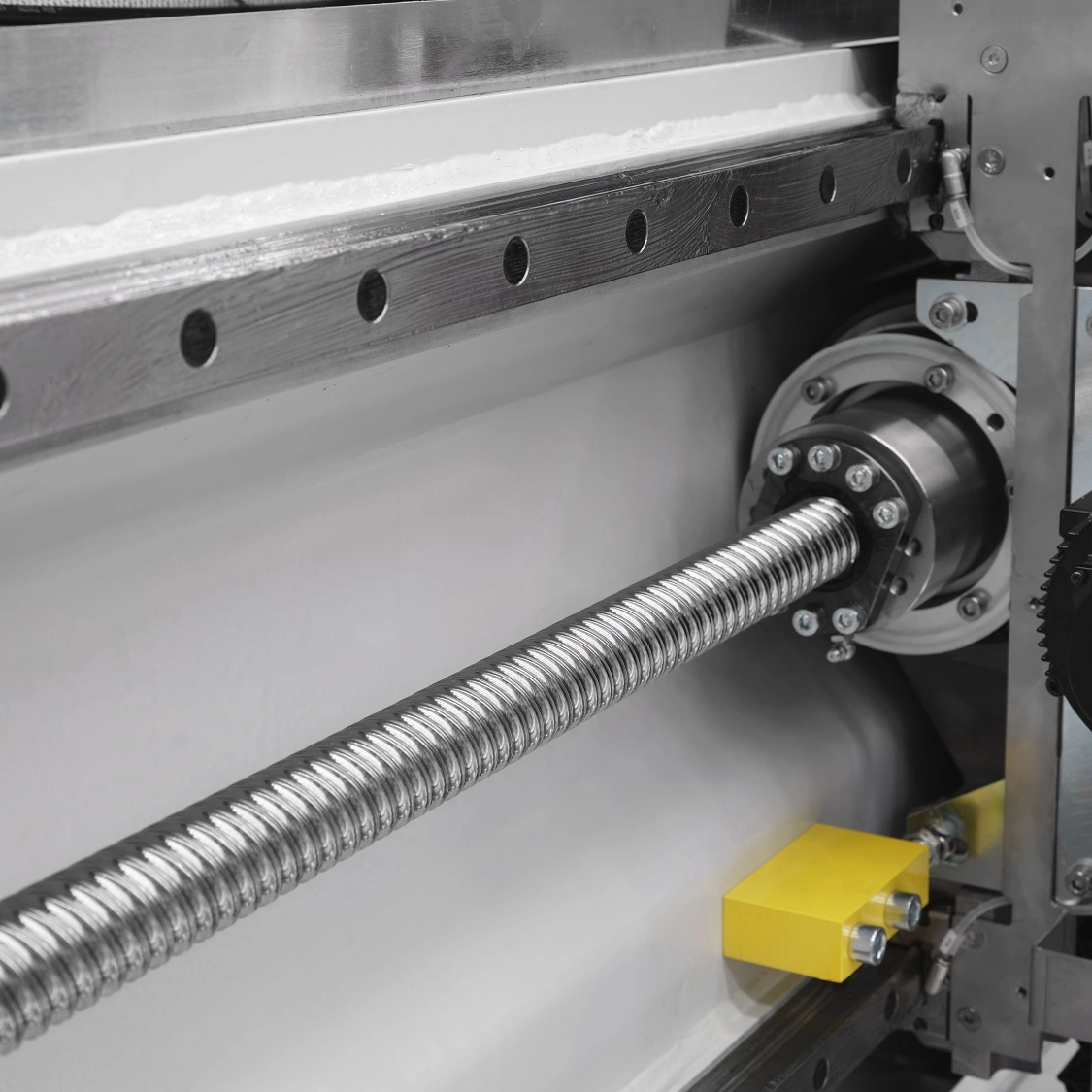

Smooth and stable

The rock-solid mechanical transmission, featuring linear guides, ball screws and rack/pinion design, ensures smooth, vibration-free axis movements. These advanced technologies are designed to deliver exceptional precision, speed, reliability, and robustness.

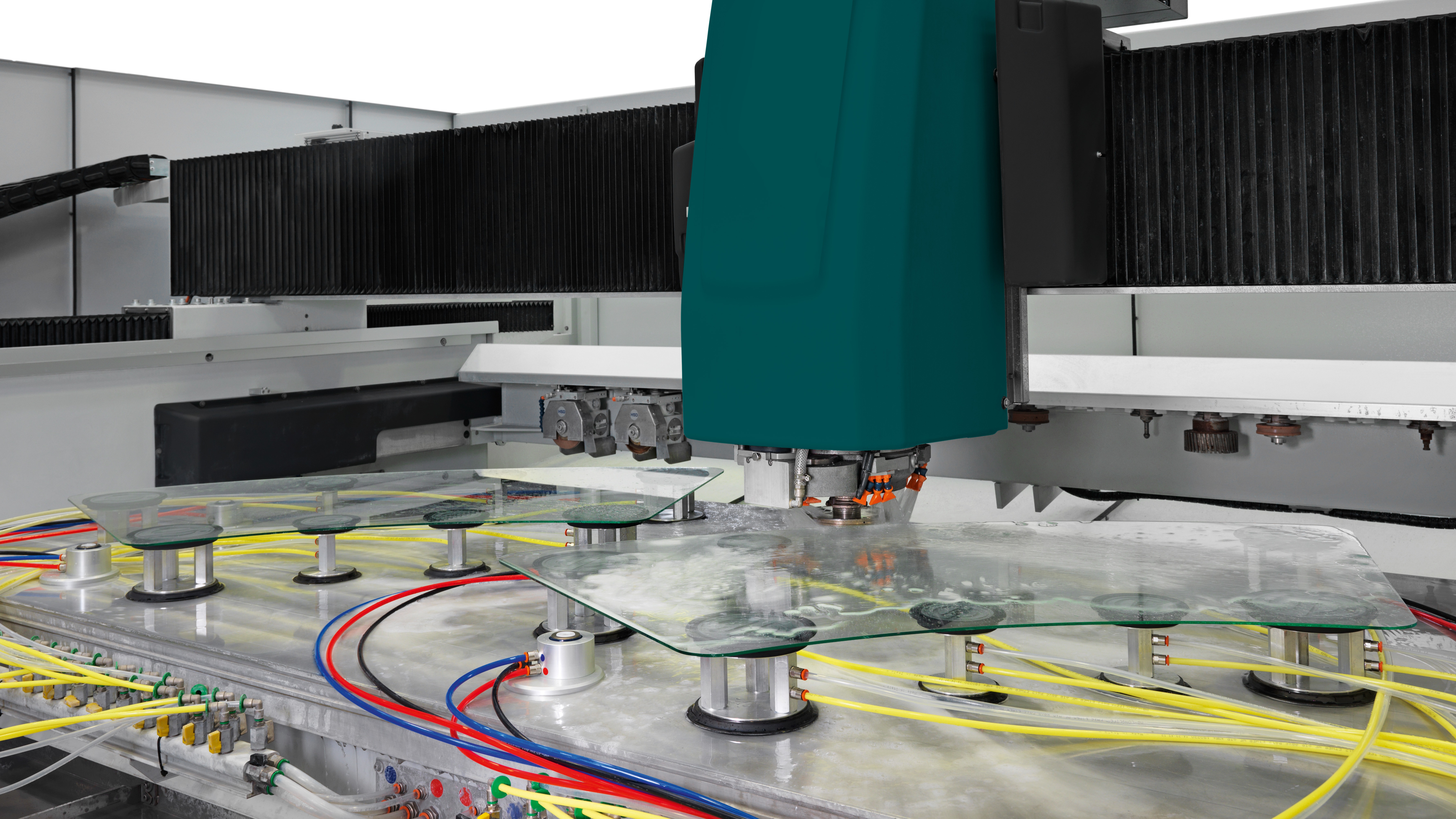

All you need is here

Depending on the glass size, you can place more pieces on the work table so to work in double station, optimizing each step of the working cycle and, as a result, increasing production speed. This flexibility allows you to efficiently process both a single glass door or a set of refrigerator brackets with ease.

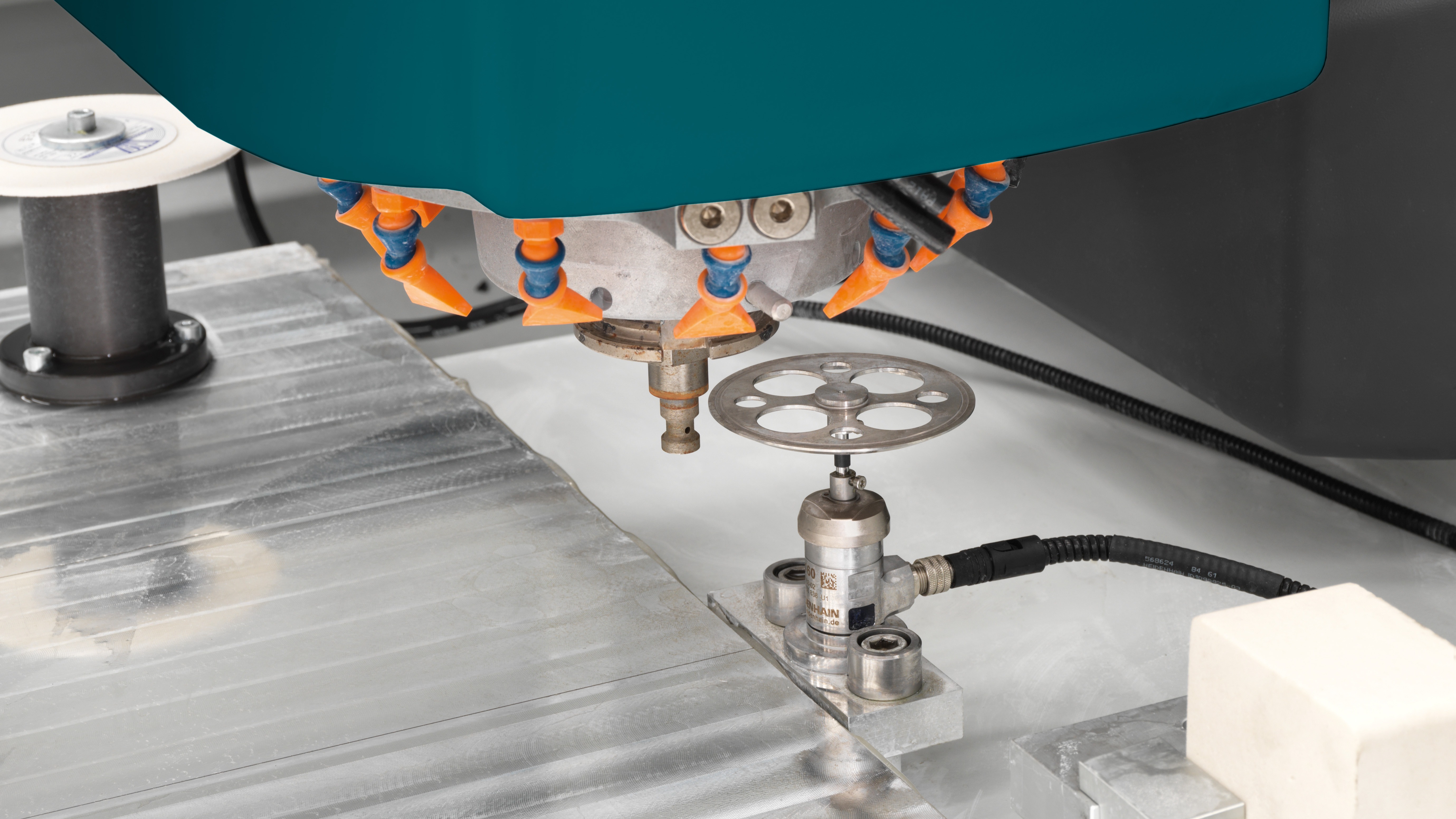

Effortless Tooling

We have designed our machine with precision and efficiency not only in machining operations but also in tooling setup and maintenance. With advanced automated systems designed to streamline tooling setup and redressing processes, this machine ensures that tools remain sharp and ready for optimal performance without manual intervention.

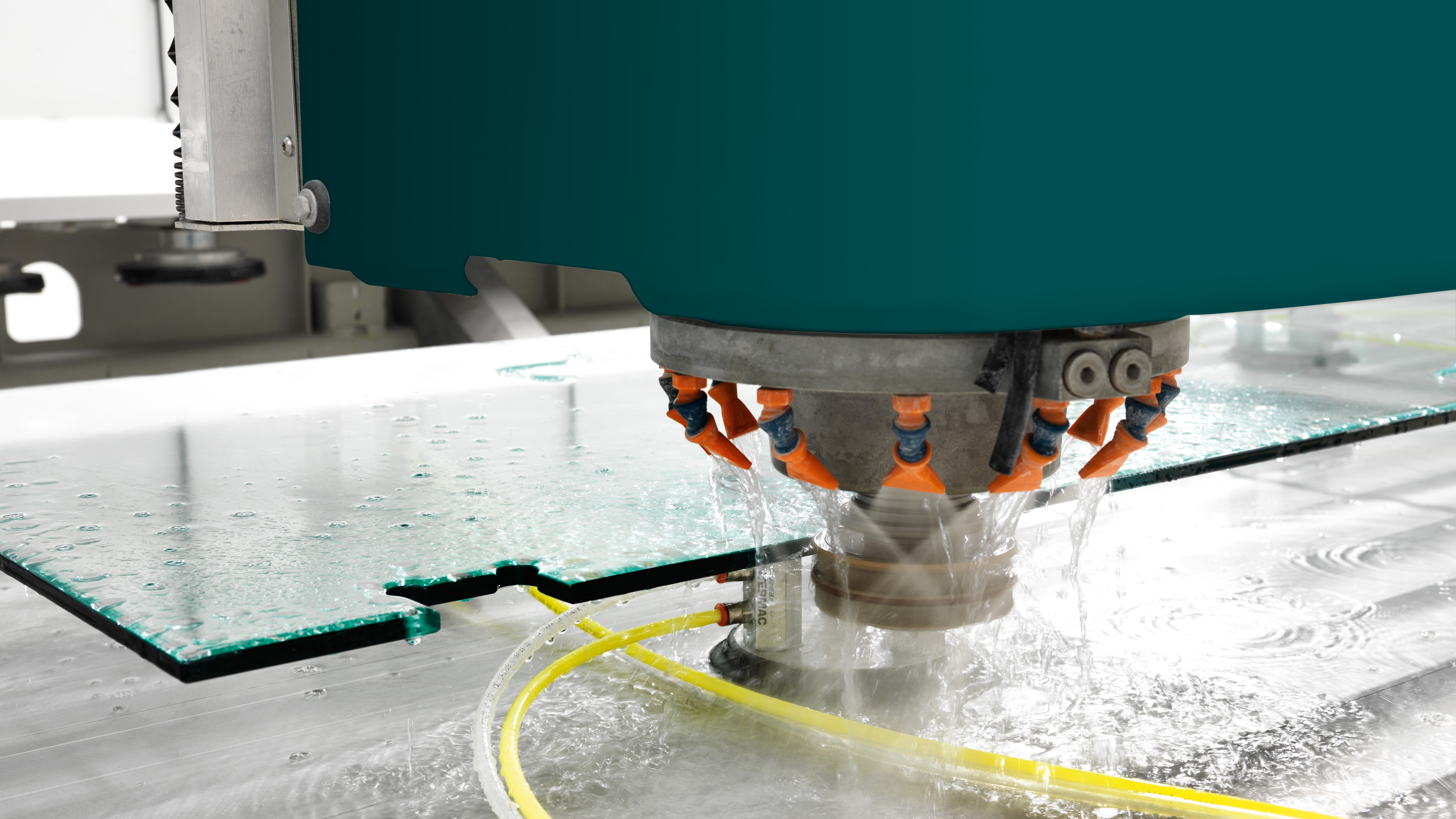

Create your work logic No matter which program Computerize your axes

Our axis control module (CNC) offers exceptional interpolation capabilities, allowing for highly precise movements tailored to specific requirements.This ensures smooth processing of parts.The reliable hardware is seamlessly integrated into the machine's PC, providing a perfect foundation for the custom-built machine interface, optimizing performance and delivering consistent results.

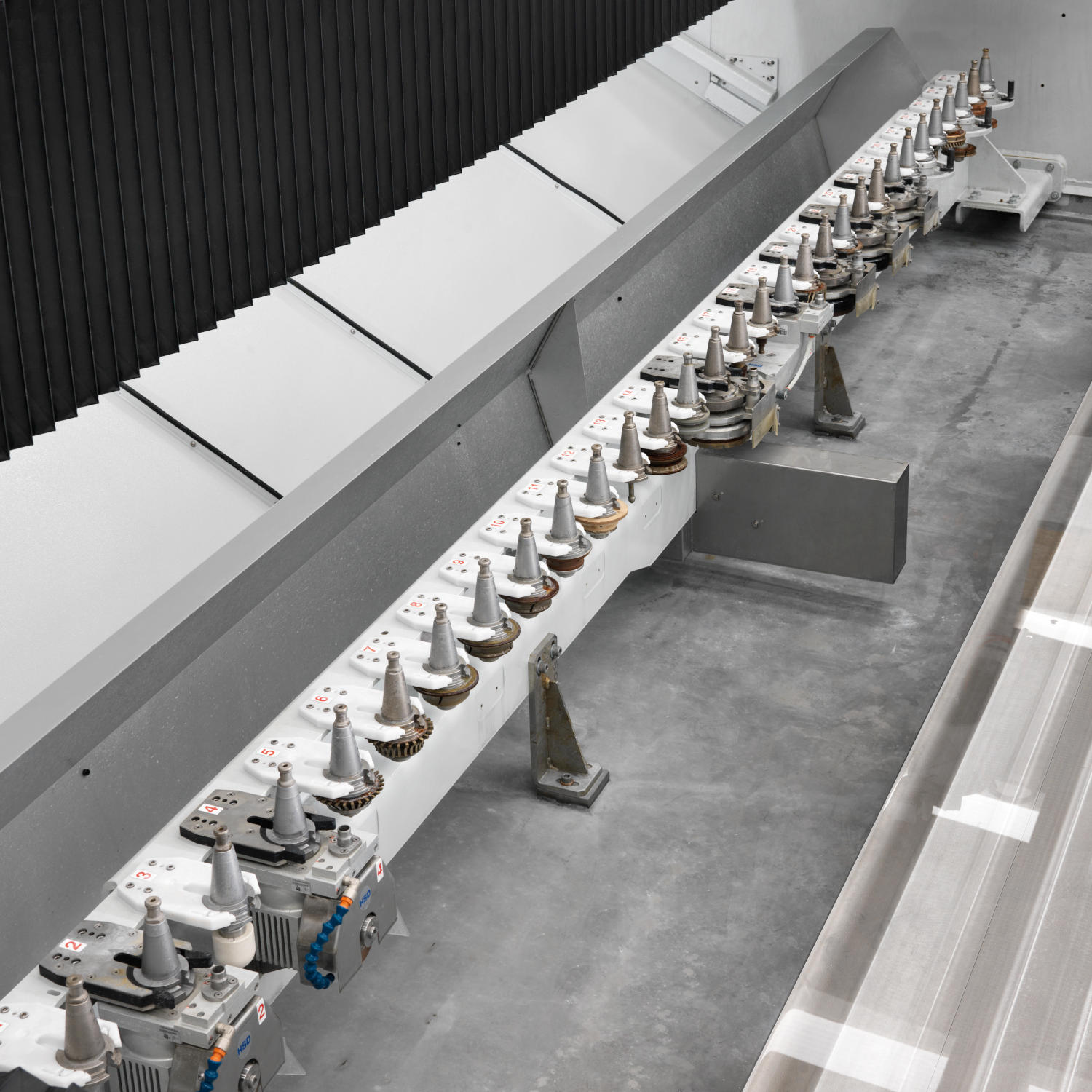

All the tools you need

You can select from various tool magazine configurations, offering up to 39 tool positions. Such versatility optimizes your workflow by having all the necessary tools readily available, or you can save space by opting for the side tool rack, tailored to meet your specific production needs.

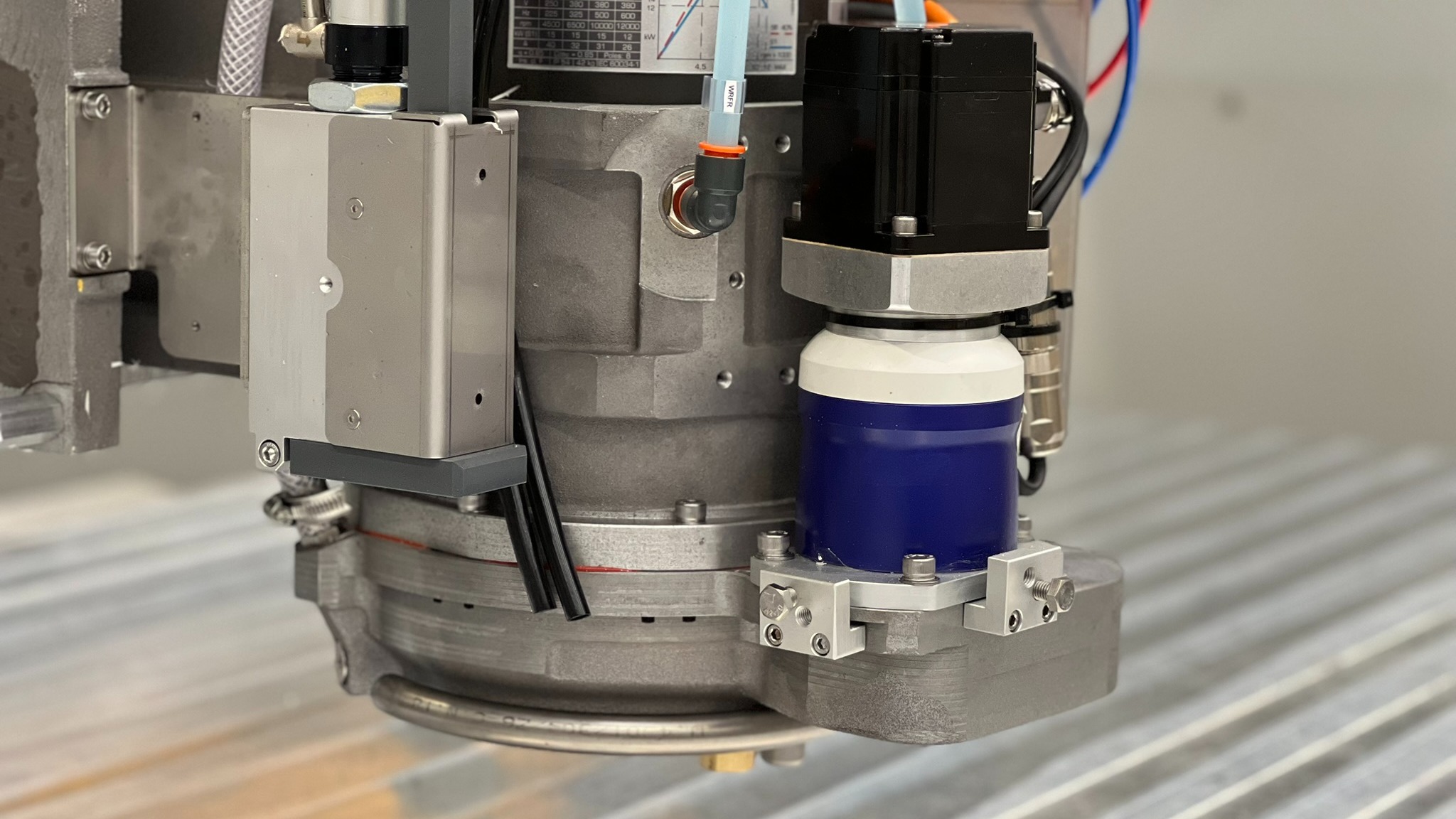

Multiprocessing needs 4

The built-in head support with the 4th axis unlocks versatile V-grooving capability.This makes the Multi Up a multipurpose solution.Perfect for customers seeking to meet different production needs with precision and efficiency.

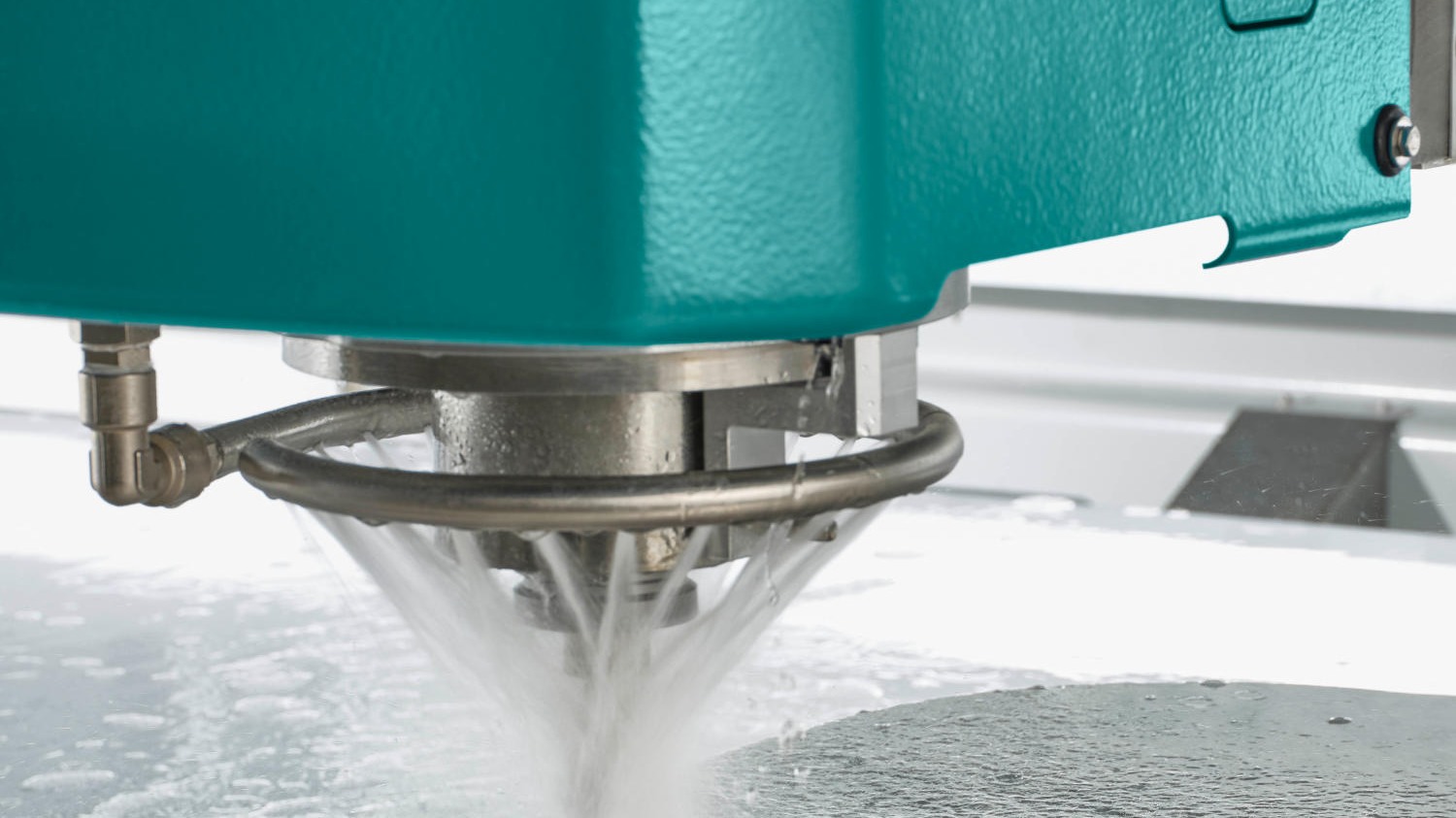

High water pressure, here it comes

The water pressure booster raises processing speed by up to 60%. It features a circular crown with 2mm inclined holes, delivering a powerful, directional water jet precisely at the grinding wheel, enabling high-speed operations.

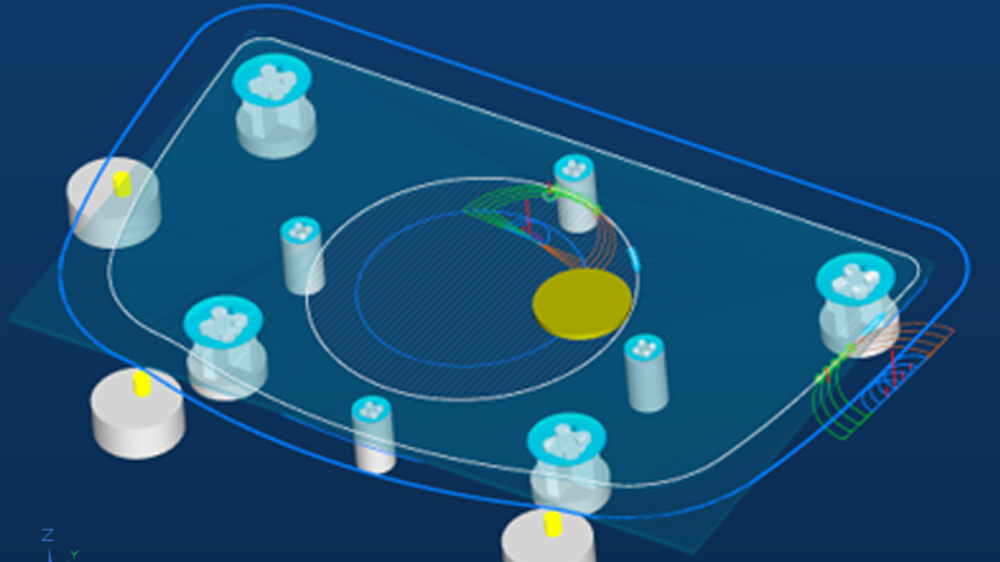

From idea to production in just 5 steps

A comprehensive software package designed to simplify the programming phase, streamlining the process into just five intuitive steps.User-friendly features enable powerful programming without the need for extensive training, helping operators avoid costly mistakes.

Main Technical Data

	U.M.	Value
Sizes		33	38	45
Working area	mm	3300 x 1600 (*)	3800 x 2000 (*)	4500 x 2500 (*)
Z axis stroke	mm	465
Operator unit	kw	15 spindle by HSD iso 40
Maximum number of tools on racks		23+8=31	27+8=35	31+8=39
Axes		3 / 4 (opt)
