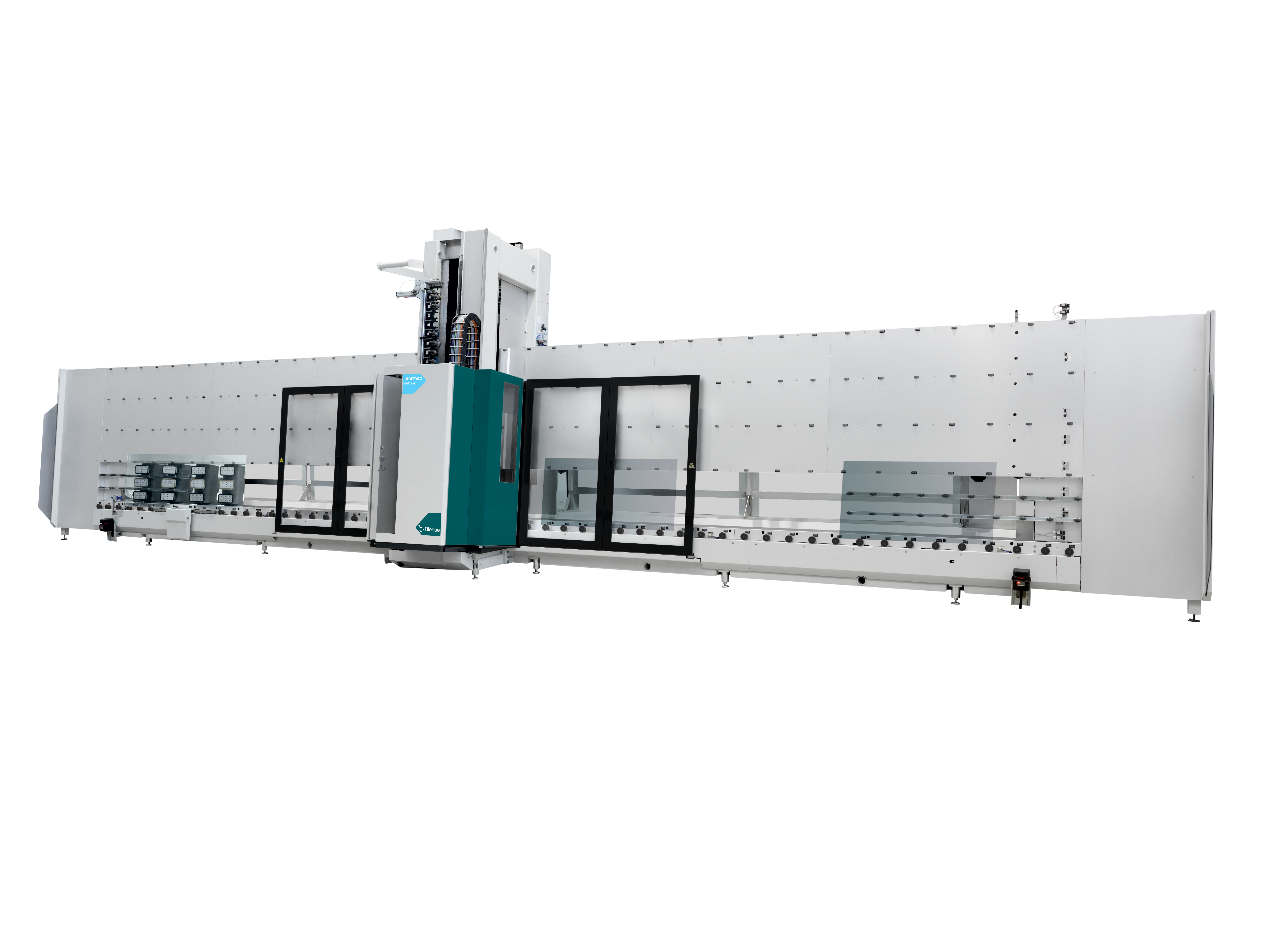

Intermac Multi Pro M V0X

Digital Catalogue

More info

Fill in the form, specifying your requirements, and one of our experts will be in touch as soon as possible

Change your perspective

Outstanding productivity in a vertical dimension
The vertical NC glass processing centre is capable to perform grinding, polishing, drilling, milling and arrising in a quick and easy way, with the most advanced solutions available on the market.
Boost your production with speed and quality, without any more need to setup the machine for processing.

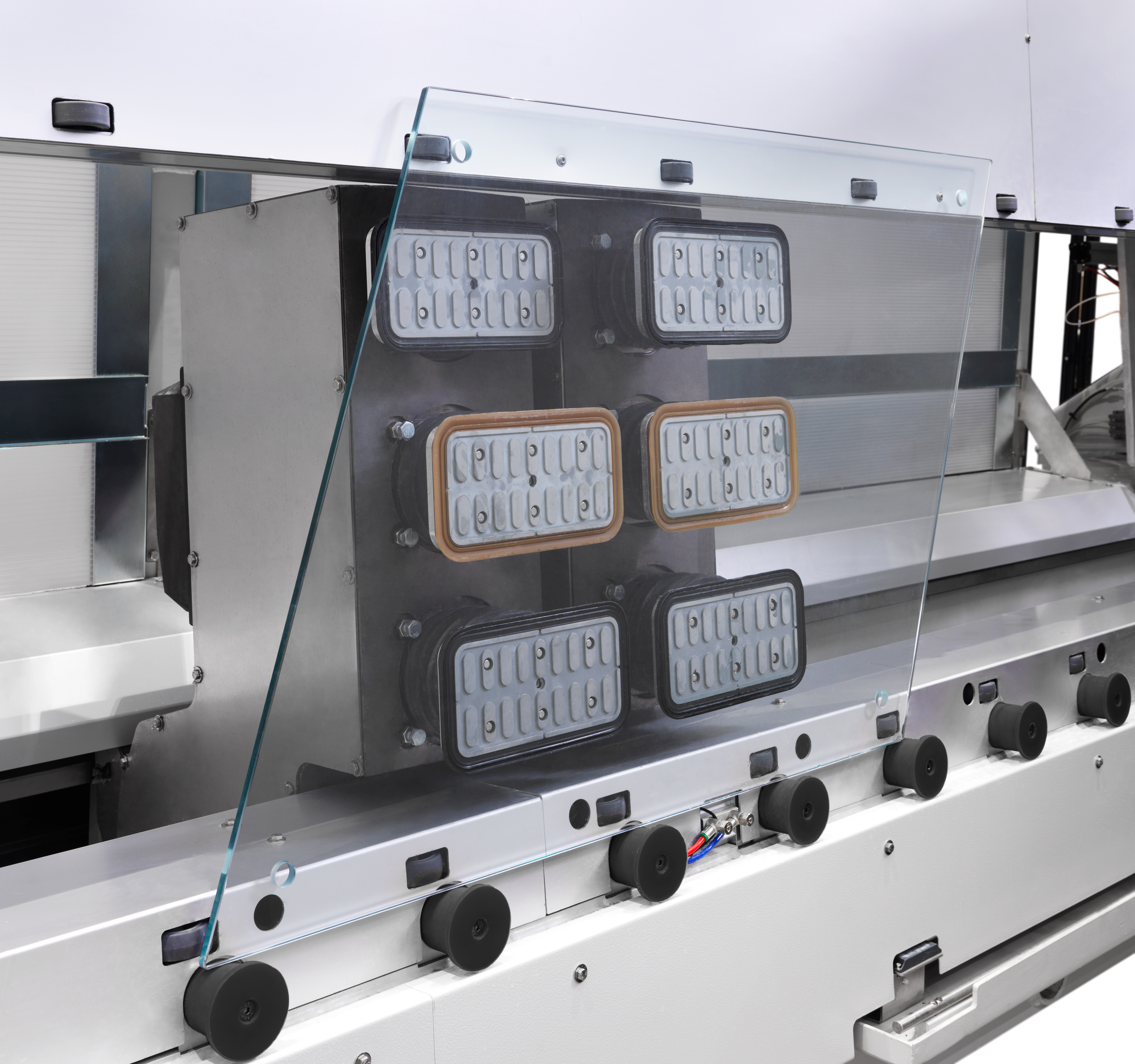

Smart Shuttles

Intelligent shuttles and suction cups management make the glass movimentation precise and smooth.
Automatic repositioning according to the glass shape without operator intervention with zero set time.
Thanks to intelligent suction cup management, we also manage glass scrap by automatically holding it in place with a suction cup, preventing it from falling off.

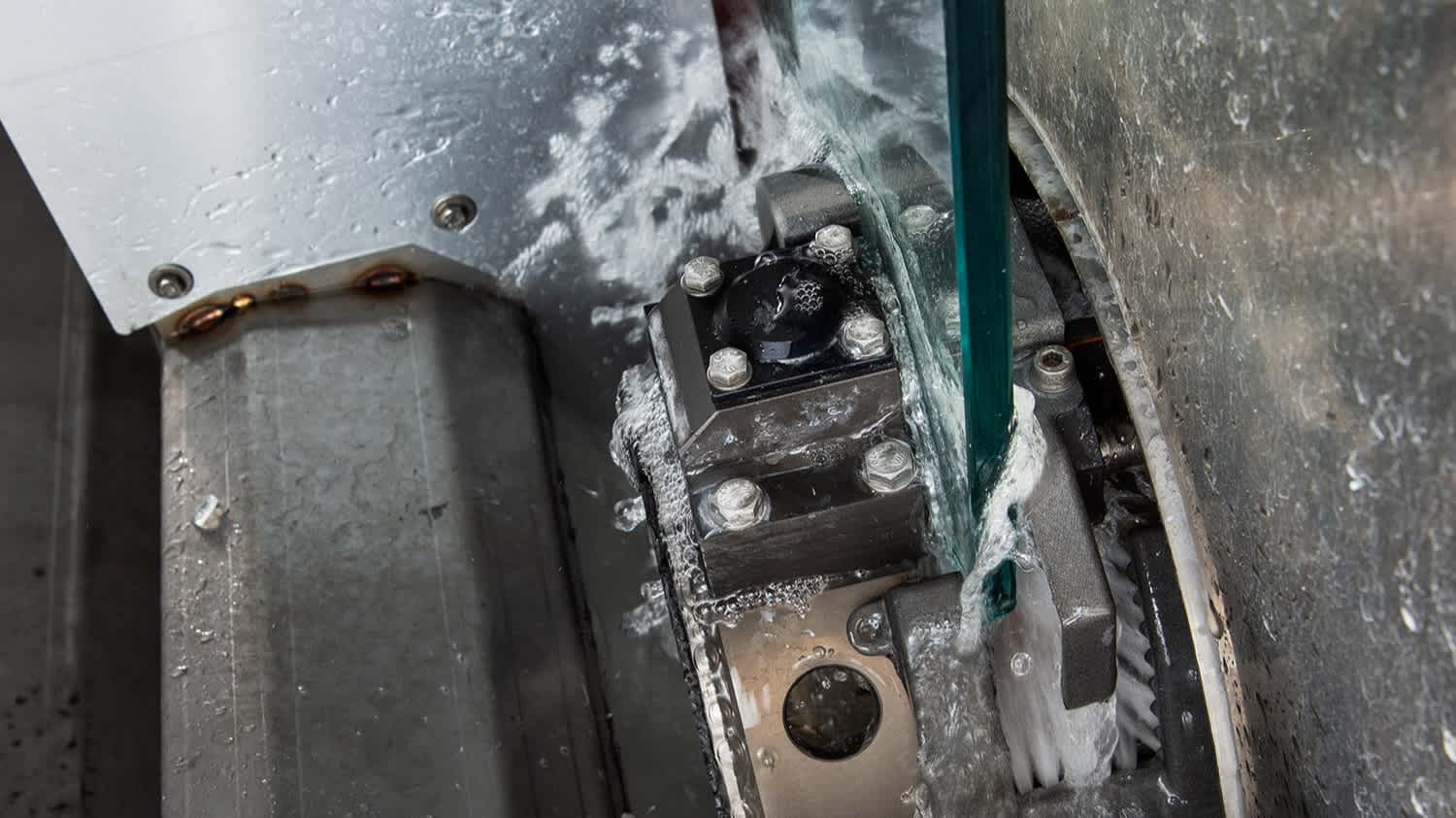

Pilot system

"Stay centered, stay stable. Perfect glass finishing is garanteed by the pilot system."

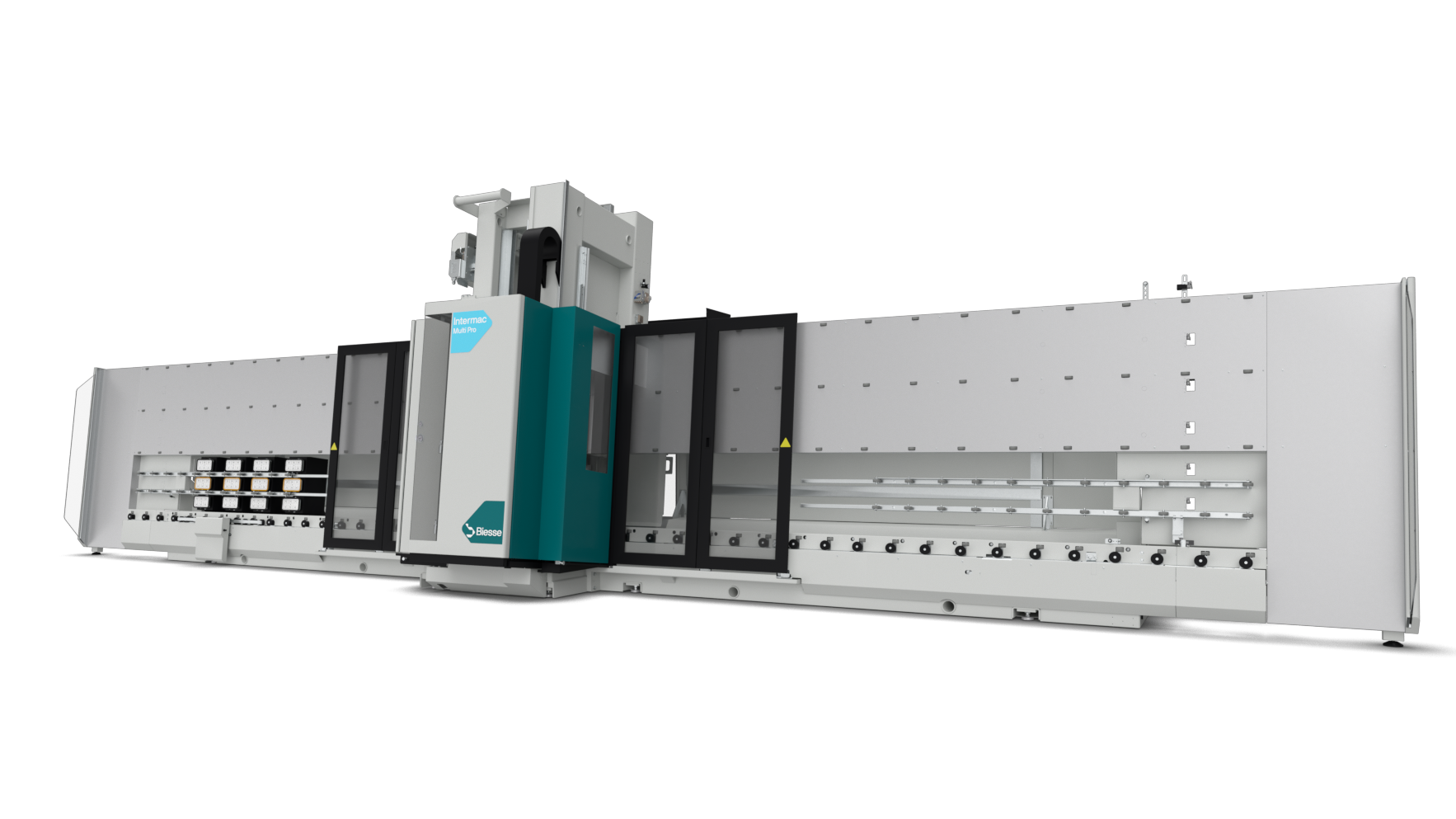

Hidden loading time

"No stop production. Possibility to load and offload pieces in hidden time. "

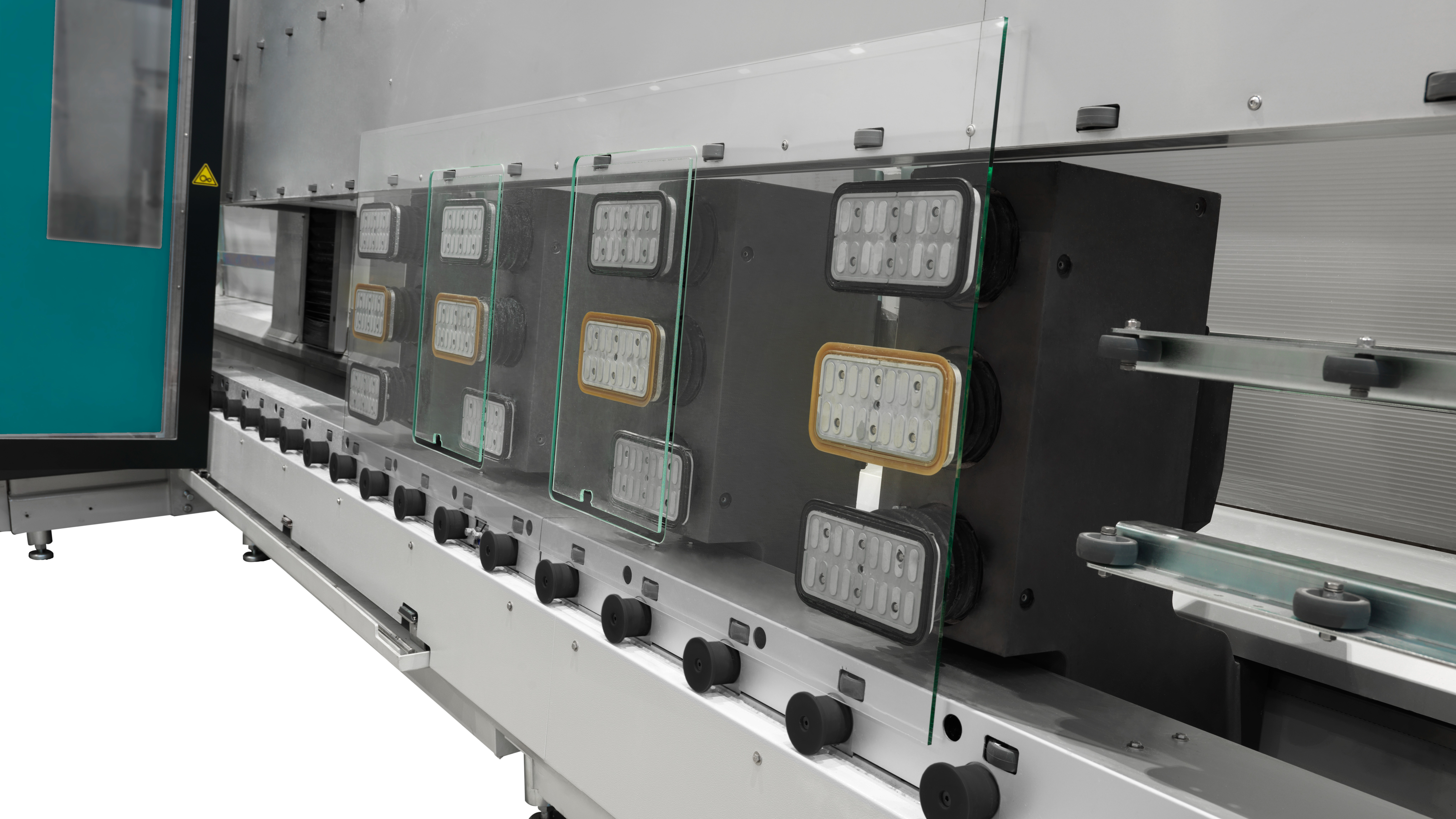

Automatic waste management system

Maximum efficiency, safety, and continuity during glass processing

Helix drilling system

“Helix” your drill. Forget about limitations in drilling using Helix.

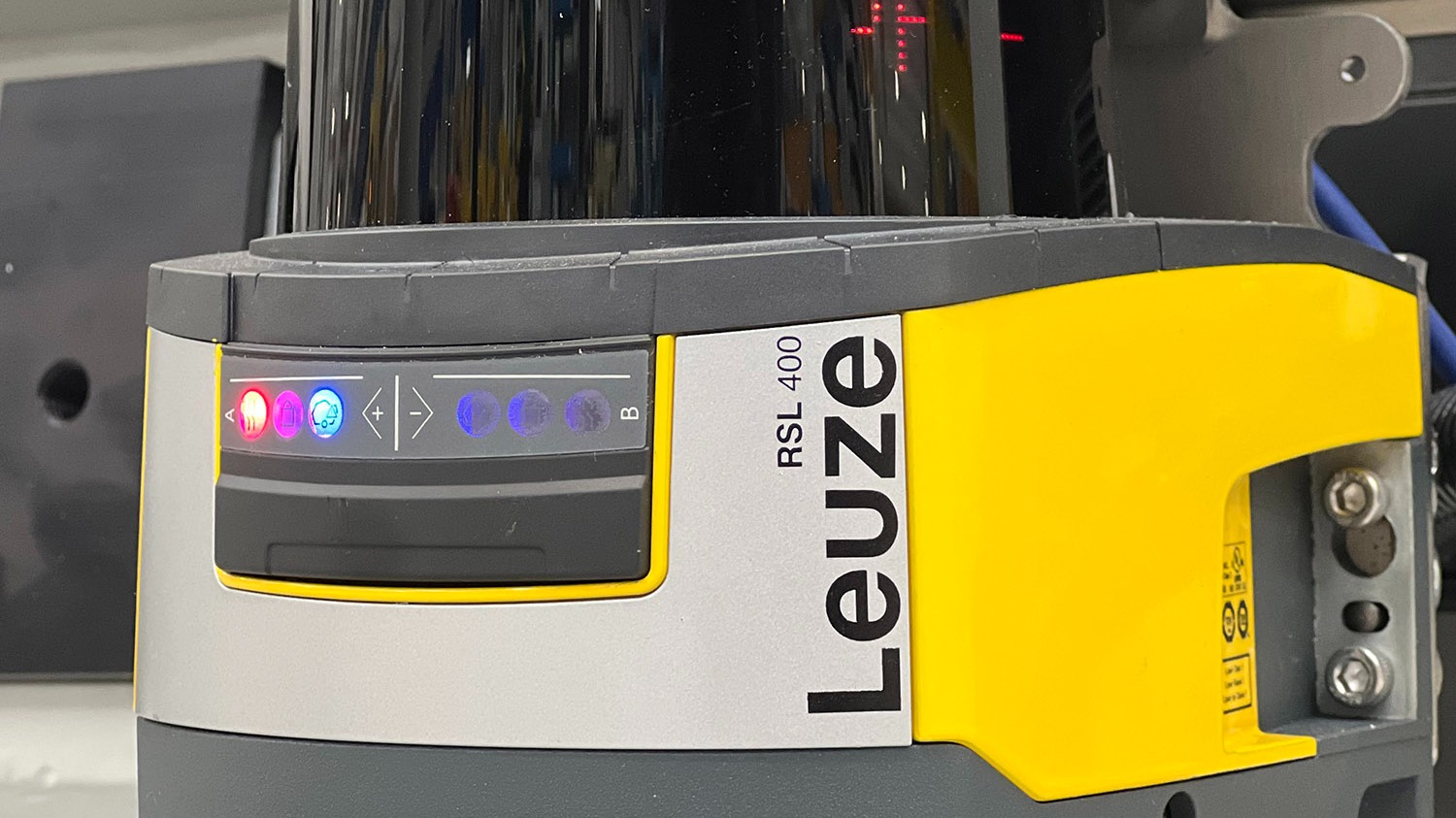

Safety with no compromises

Best safety solutions brought to the queen of the vertical machining, machine is protected 360° all around.

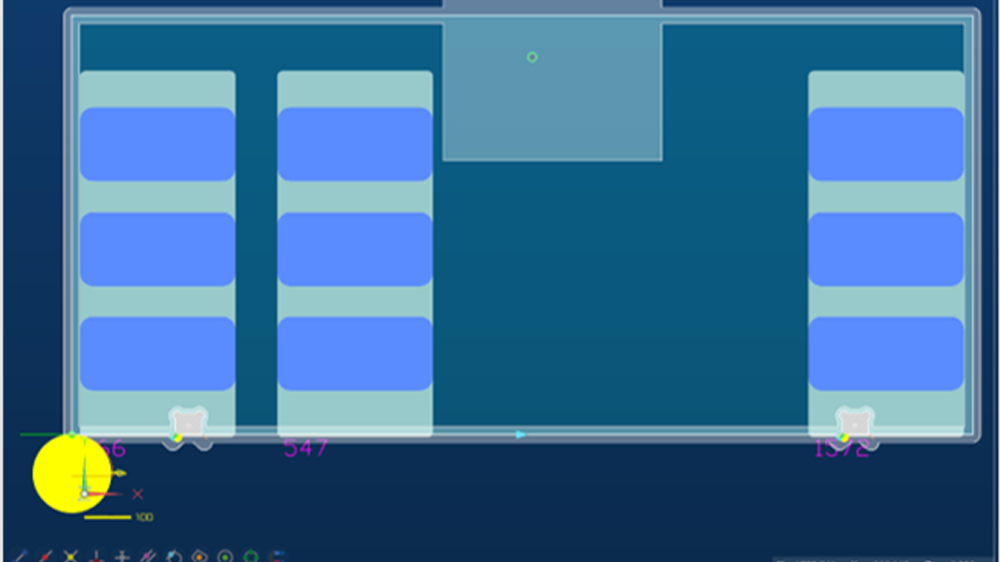

IC software : 5 steps to processing

A comprehensive software package designed to simplify the programming phase, streamlining the process into just five intuitive steps. User-friendly features enable powerful programming without the need for extensive training, helping operators avoid costly mistakes.

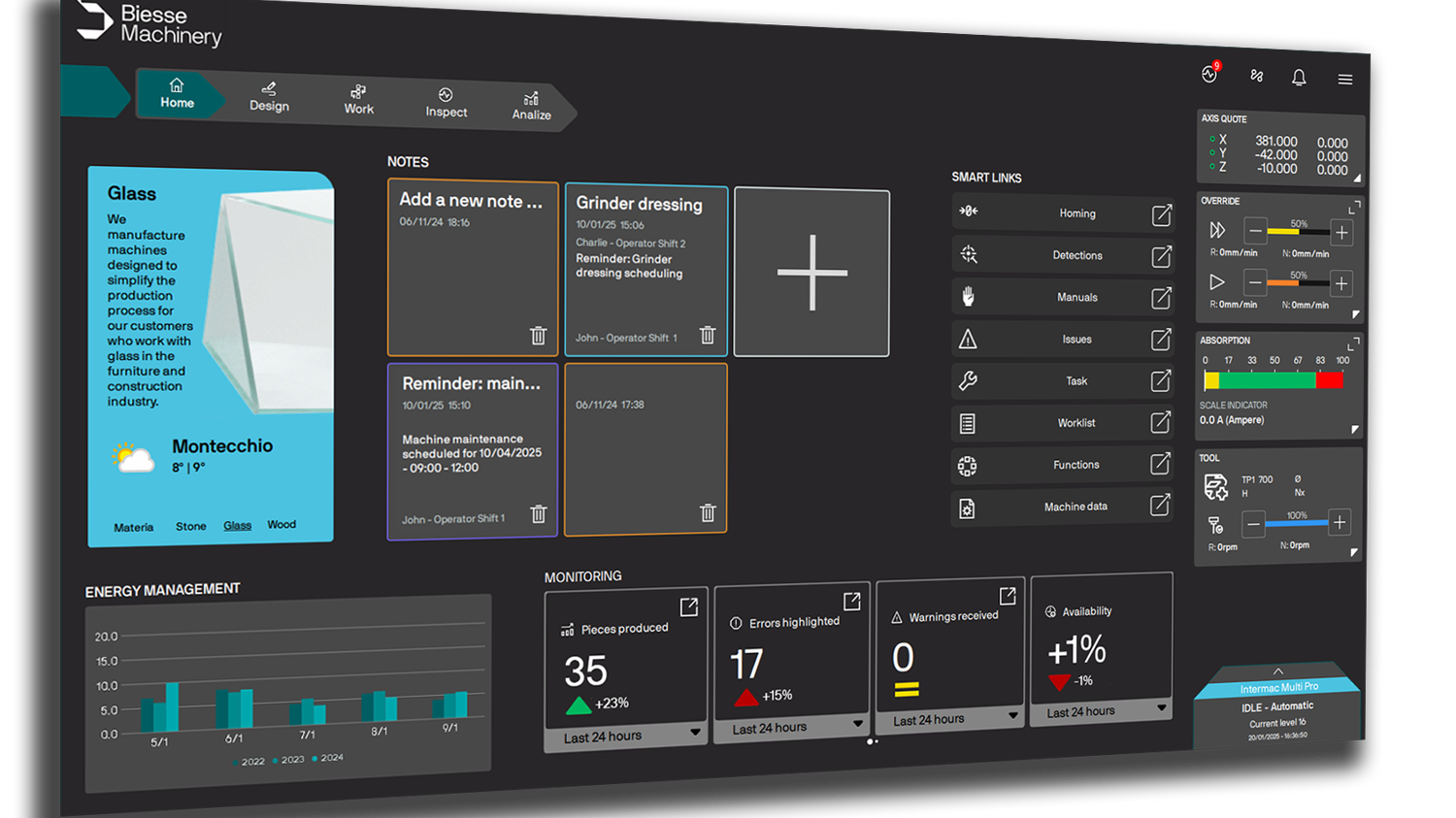

Human Machine Interface

A revolutionary interface enhances the user experience of Biesse machines, streamlining production processes like never before. This innovative system achieves its goal through improved usability, clear communication, and intuitive guidance, empowering operators to work more efficiently and with greater confidence.

Technical Specifications

Technical specifications	U.M.	Value
Sizes		22	28	33
Max working dimension	mm	3500 x 2200	5100 x 2800	6000 x 3300
Max glass height	mm	2400	3000	3300
Front operator unit	kw	6	14	14
Rear operator unit	kw	6
Max glass thickness	mm	19 (25-30 opt.)	30	30
Min glass thickness	mm	4	4	4
Shuttles	n.	2 (3rd and 4rd opt)	4	4
Front tool racks	n.	10 (+5 opt)	10 (+10 opt)	15 (+10 opt)
Rear tool racks	n.	10	10 (+5 opt)	10 (+10 opt)
