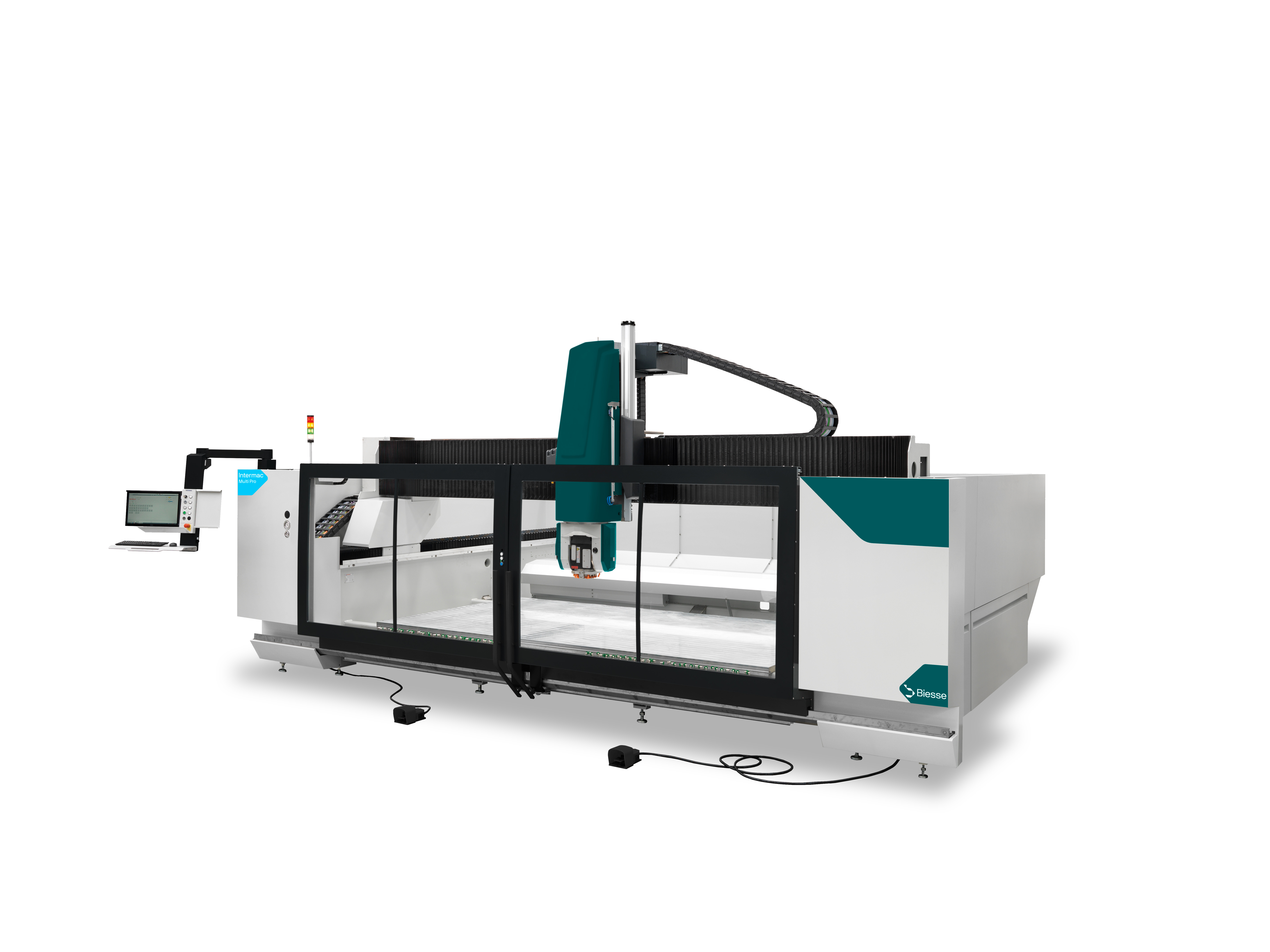

Intermac Multi Pro S H5S

Digital Catalogue

More info

Fill in the form, specifying your requirements, and one of our experts will be in touch as soon as possible

Historical exclusivity

A big boost for creativity and production.

Biesse glass machines have always been at the forefront, offering innovative and highly praised solutions for all types of glass processing.

The A axes enable beveling angles from 0 to 90°, as well as engraving on the sides, creating bubble engravings, finishing 3D surfaces, and any other processes made possible by full axis interpolation.

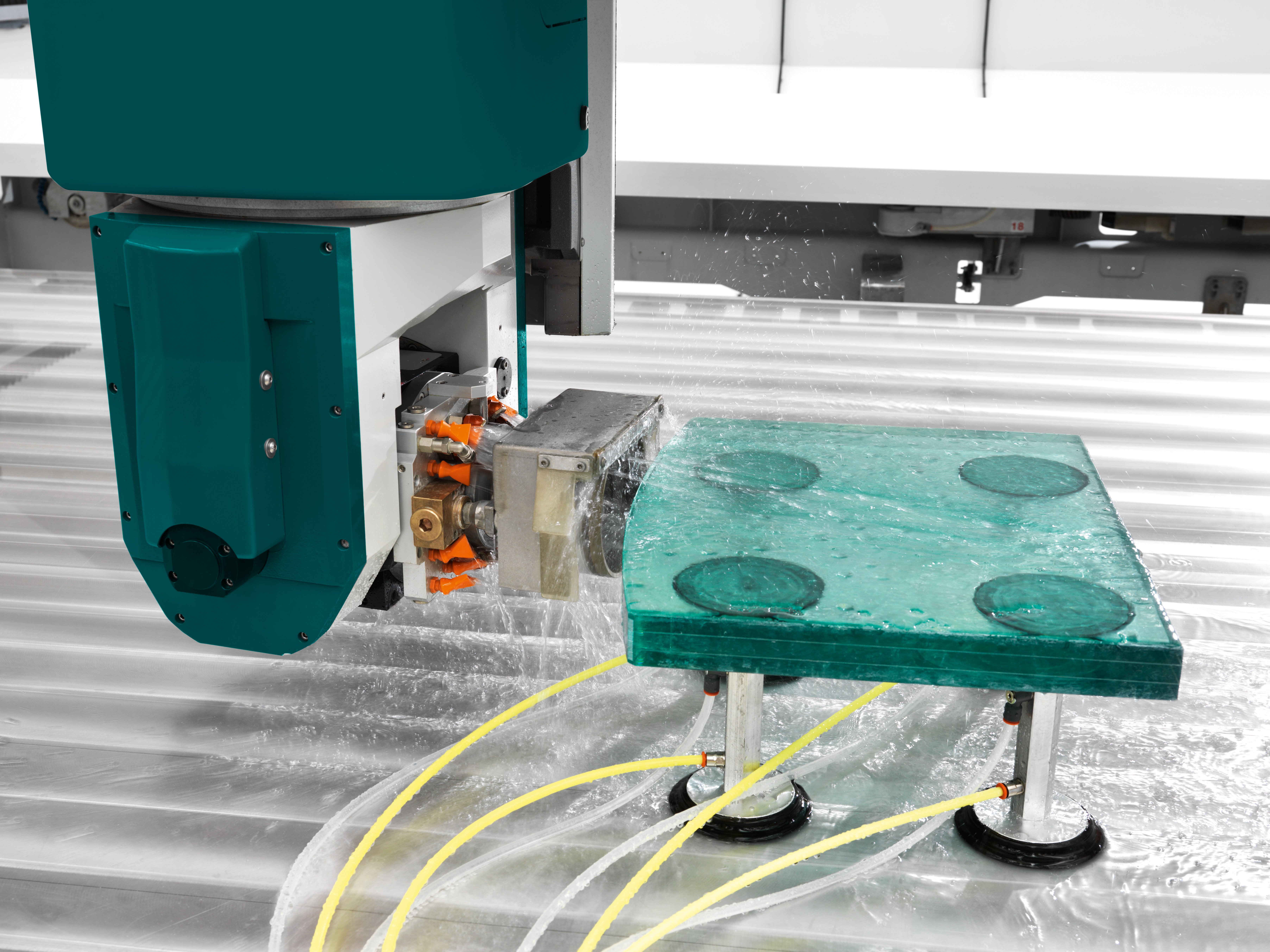

Beveling without limits

With the ability to handle any type of beveling and curved glass finishing, we make complex tasks effortless.

Thanks to its precise axis transmission, accurate tool measurements, and cutting-edge CAD/CAM software, it ensures flawless results every time.

Let the machine guide you through a world of possibilities and bring your glass processing to the next level.

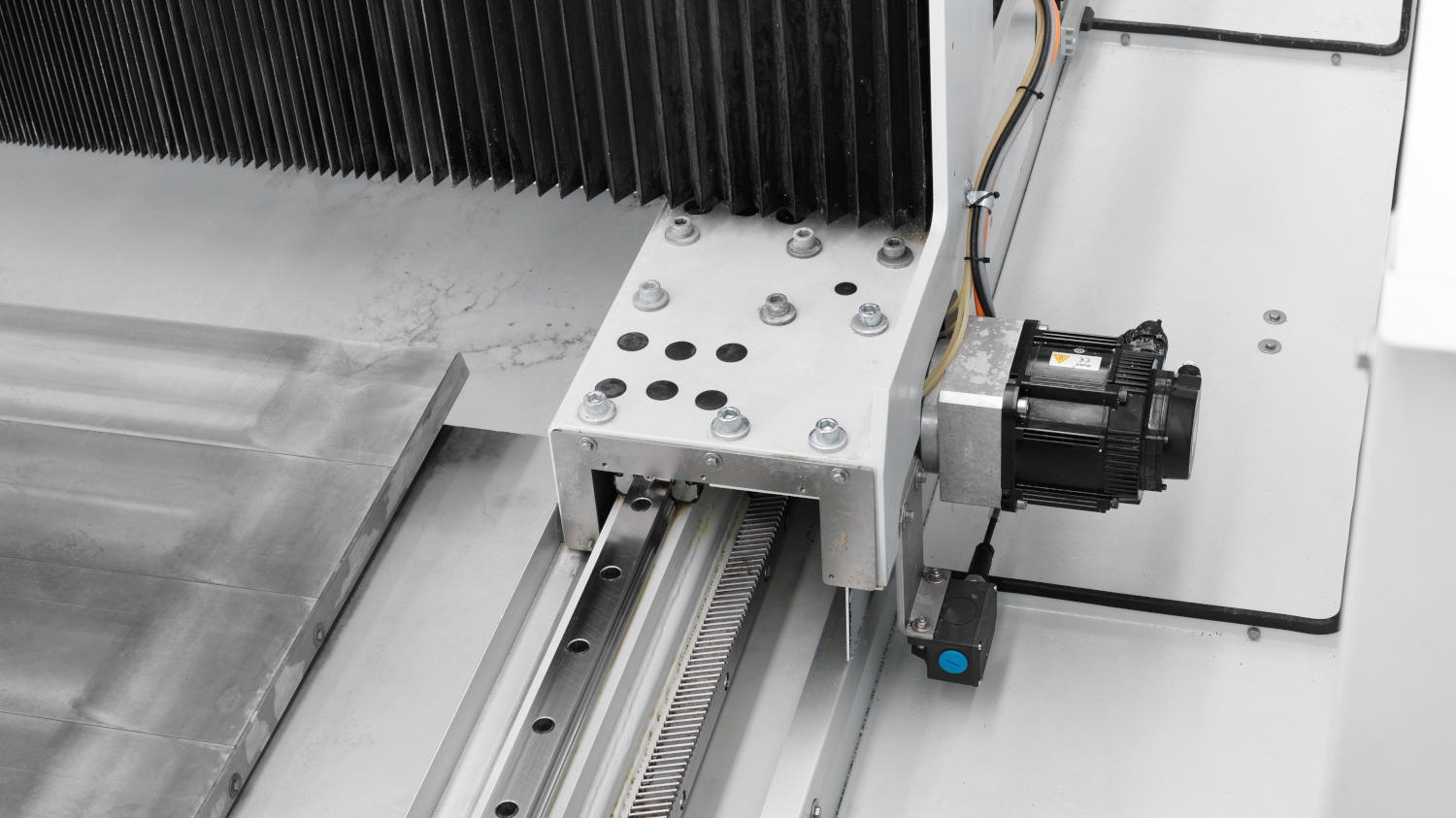

Best transmission in class

Featuring high-quality mechanical solutions like ball screws, linear guides, and toothed racks & pinion design, the system ensures top-tier performance. The automatic greasing system guarantees reliable maintenance, supported by the operator’s periodic checks, for long-lasting precision and durability.

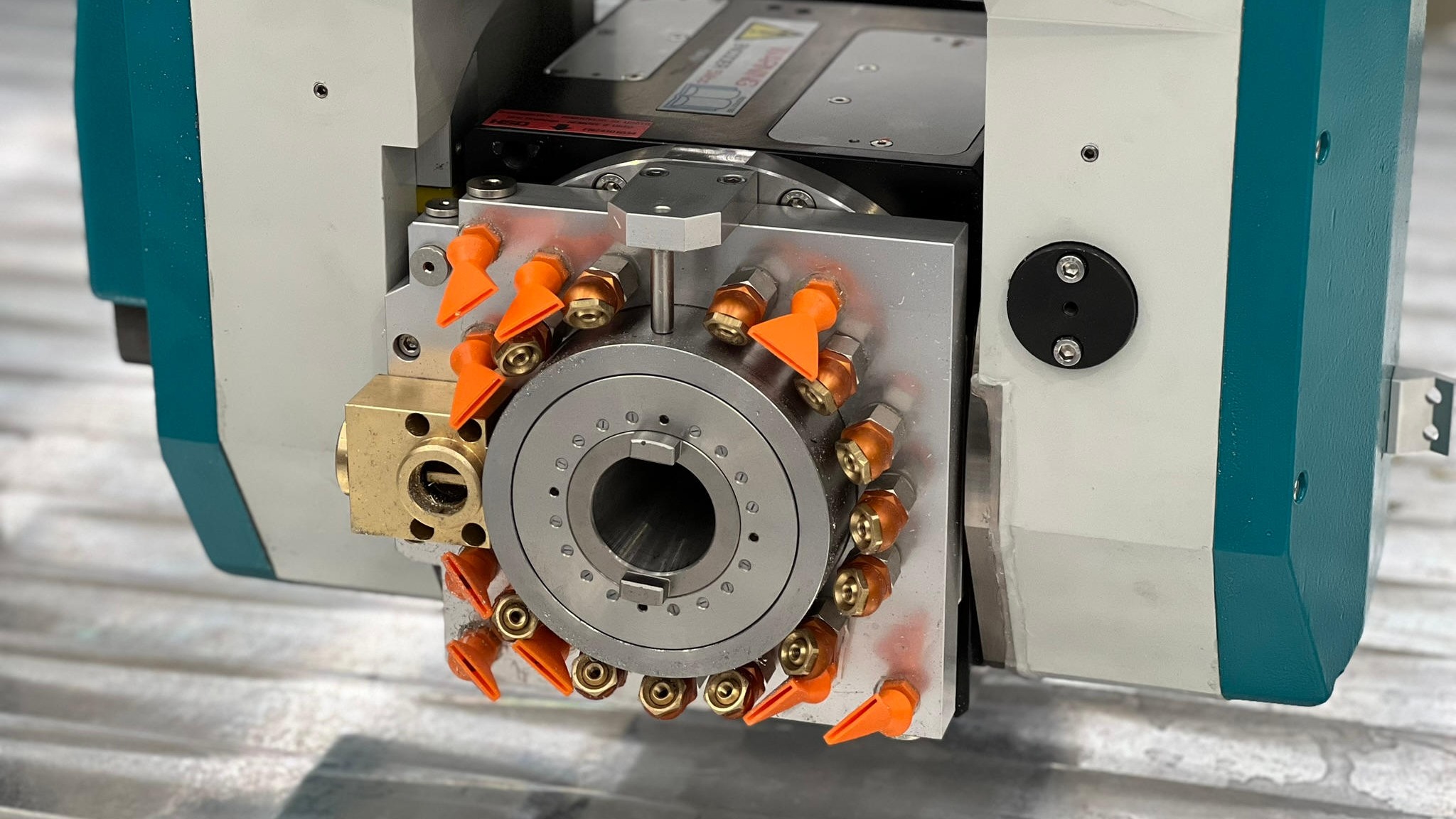

Spindle power with no compromises

With 15 kW of available power for any task, the cartridge-type spindle is built to deliver exceptional strength and reliability, offering an unbeatable, high-performance solution for all your needs.

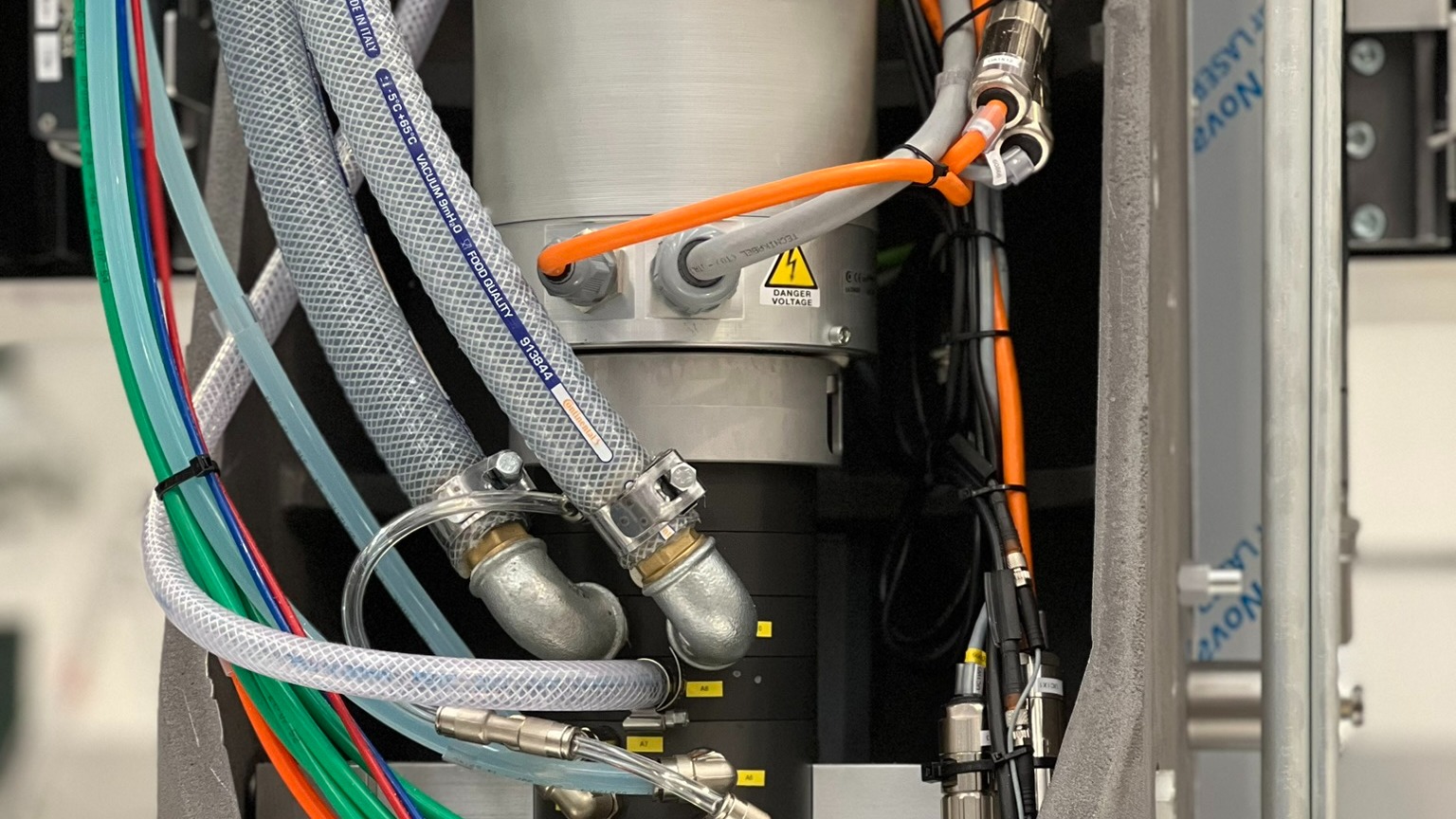

Smoothing your movements

The continuous head rotation ensures incredibly smooth movements, thanks to a cutting-edge electric and hydrolic distribution system. This innovative technology guarantees flawless processing surfaces, free from any signs of directional changes. Whether it’s for bubbles, soap dishes, lens finishing, or any other process, this feature elevates every application to a new level of precision and quality.

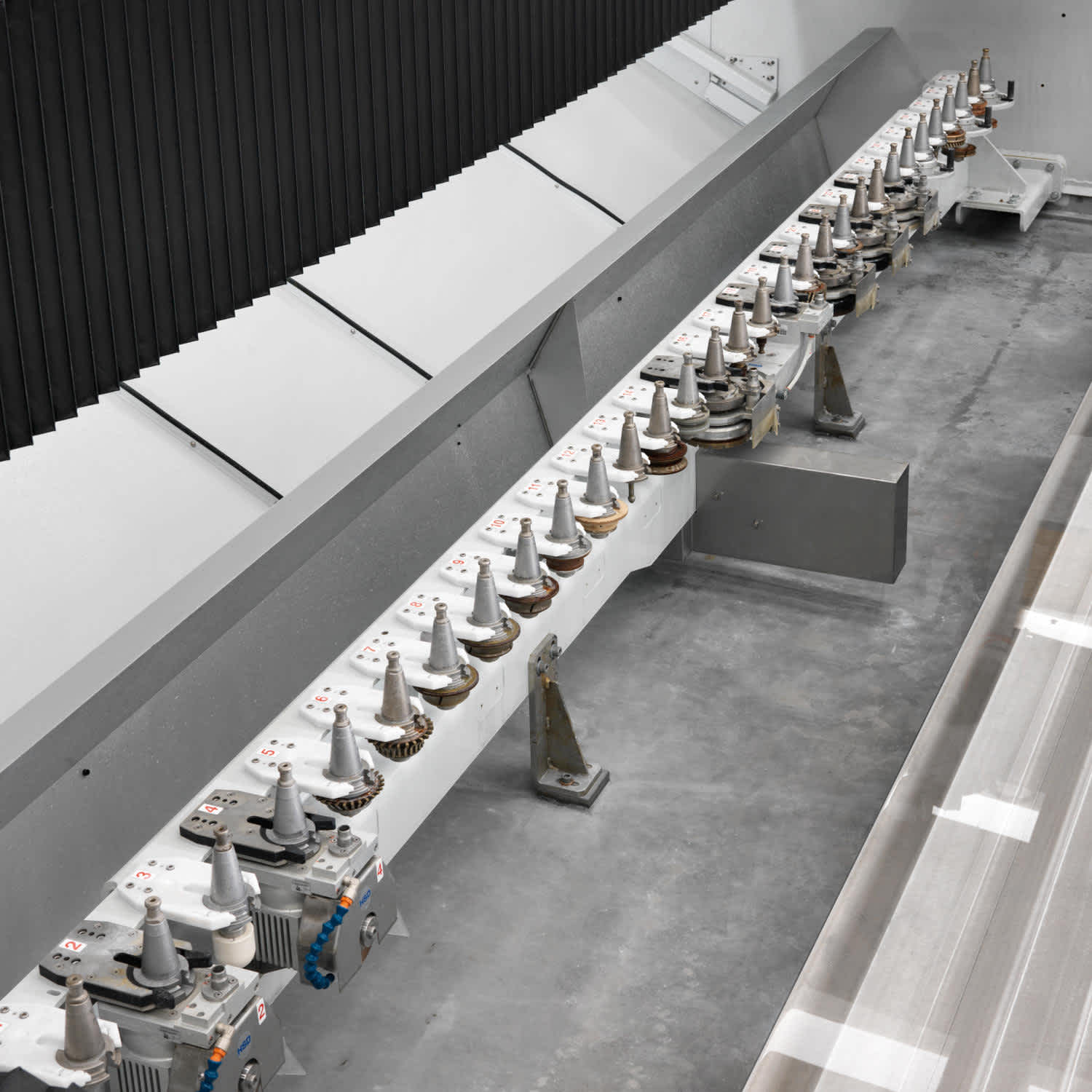

All the tools you need

You can select from various tool magazine configurations, offering up to 39 tool positions.

Such versatility optimizes your workflow by having all the necessary tools readily available, or you can save workspace by opting for the side tool rack, tailored to meet your specific production needs.

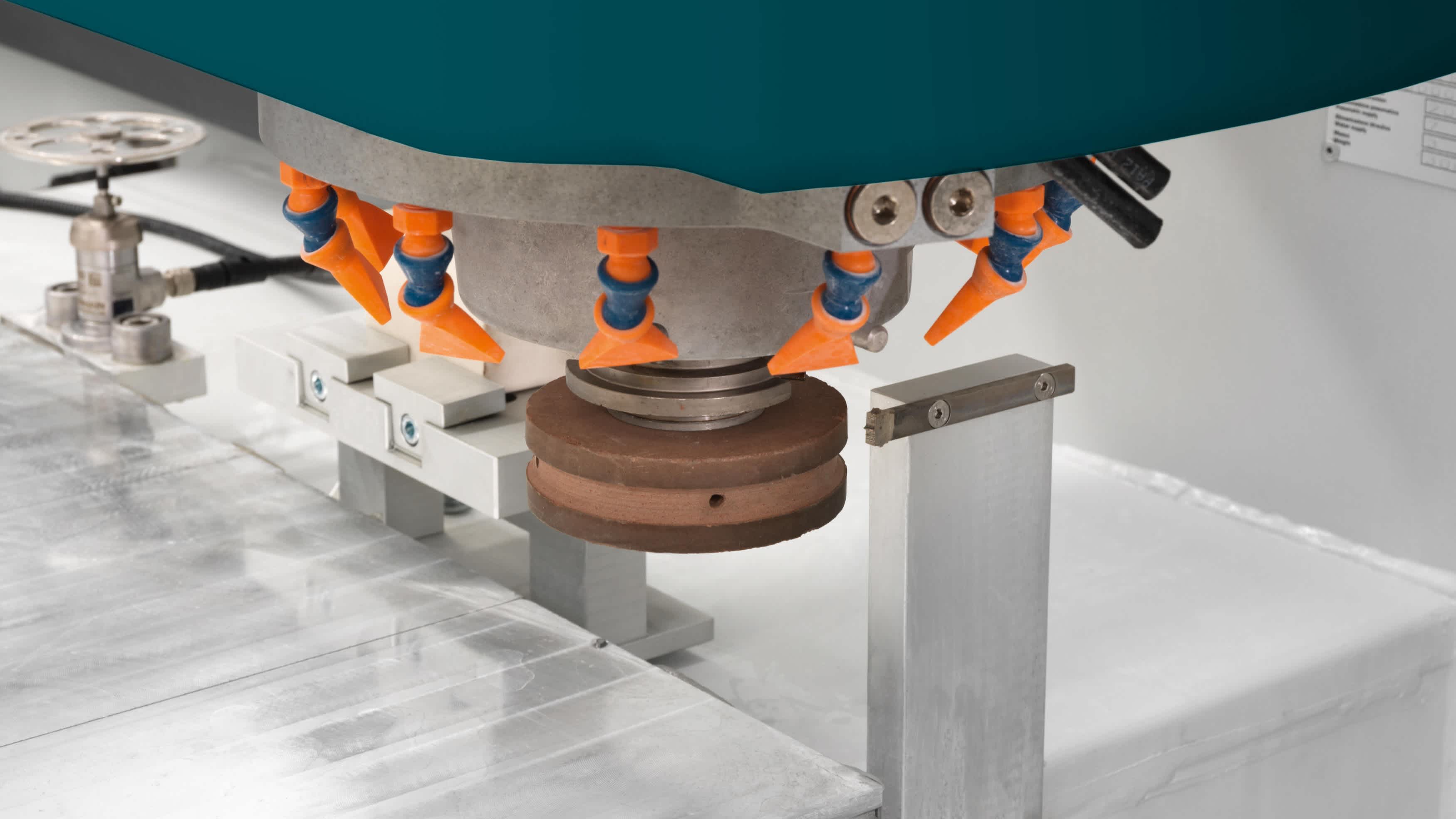

Effortless Tooling

Our machine is engineered for precision and efficiency, featuring advanced automation that streamlines tool setup and maintenance. With its automatic tool sharpening system, it keeps tools sharp and ready for peak performance, all without the need for manual intervention.

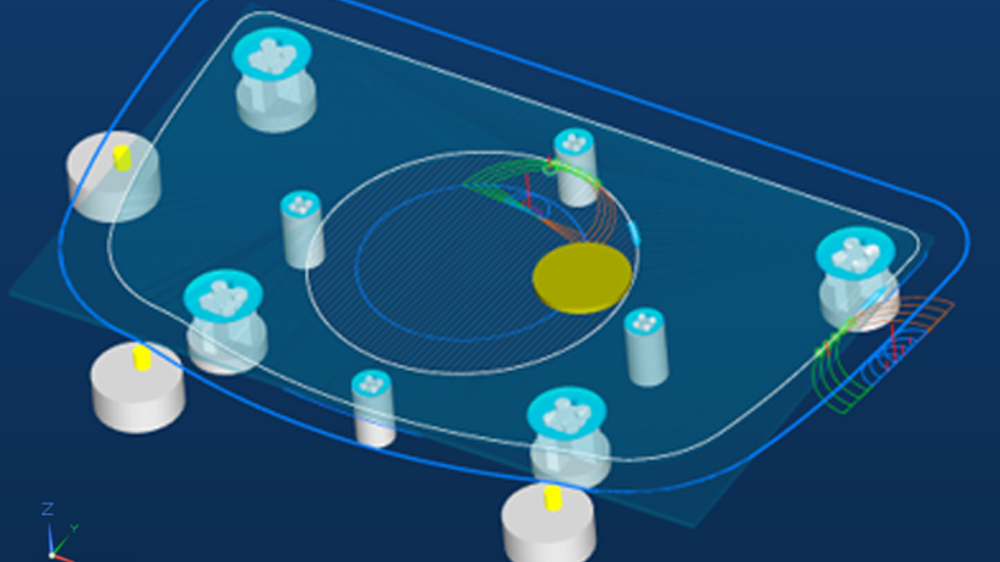

From idea to production in just 5 steps

A comprehensive software package designed to simplify the programming phase, streamlining the process into just five intuitive steps

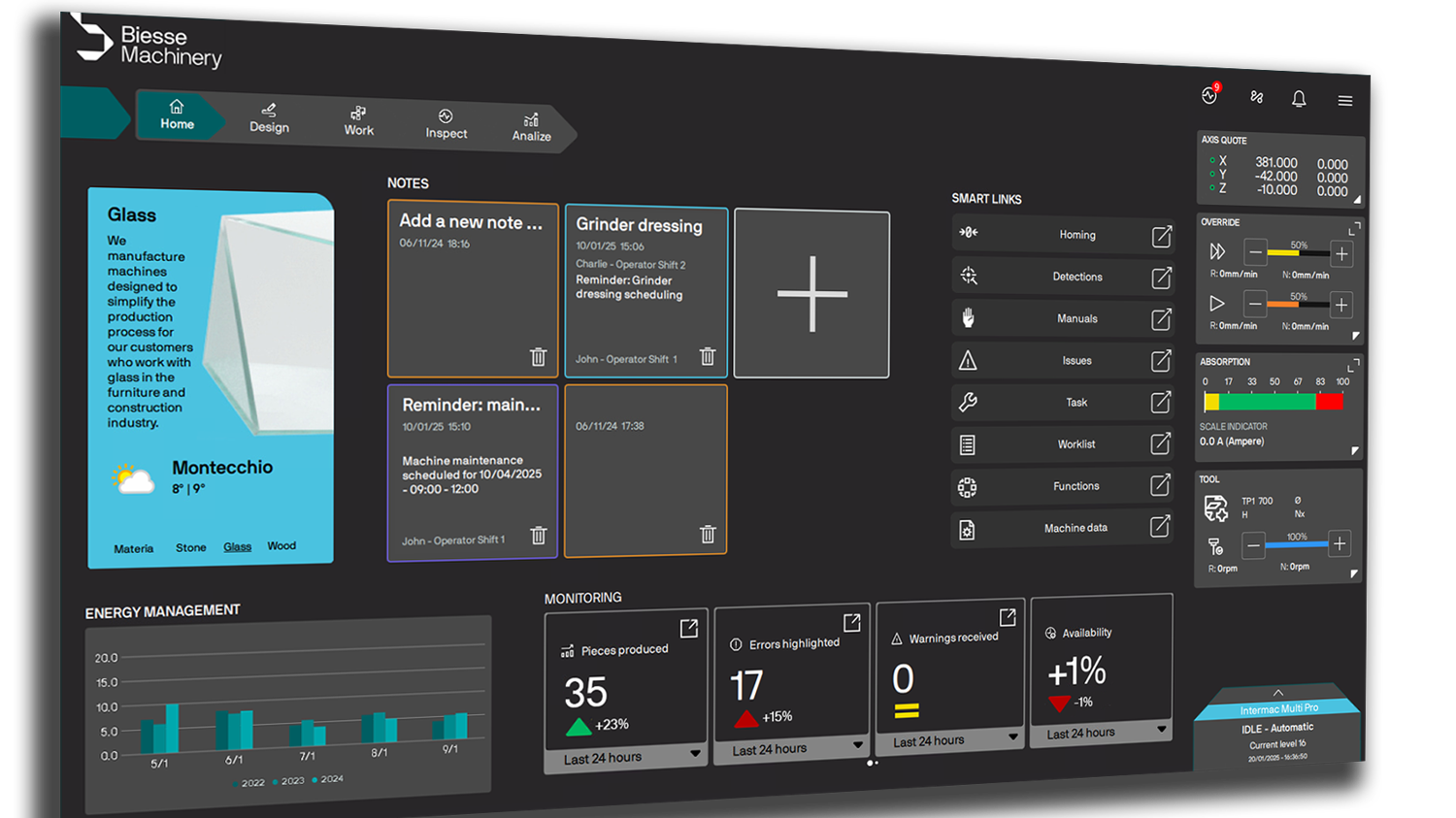

Human Machine Interface

A revolutionary interface enhances the user experience of Biesse machines, streamlining production processes like never before. This innovative system achieves its goal through improved usability, clear communication, and intuitive guidance, empowering operators to work more efficiently and with greater confidence.

Technical Specifications

Sizes		33	38	45
Working area	mm	3300 x 1550	3800 x 2000	4500 x 2500
Max glass thickness	mm	100
Operator unit	kw	15 kw spindle by HSD iso 40
Maximum tools number on racks	n.	31	35	39
Axes	n.	5

Furniture

Doors

Balustrades
