Master Cut Go C M

Digital Catalogue

More info

Fill in the form, specifying your requirements, and one of our experts will be in touch as soon as possible

Monoblock design & intuitive control for instant productivity.

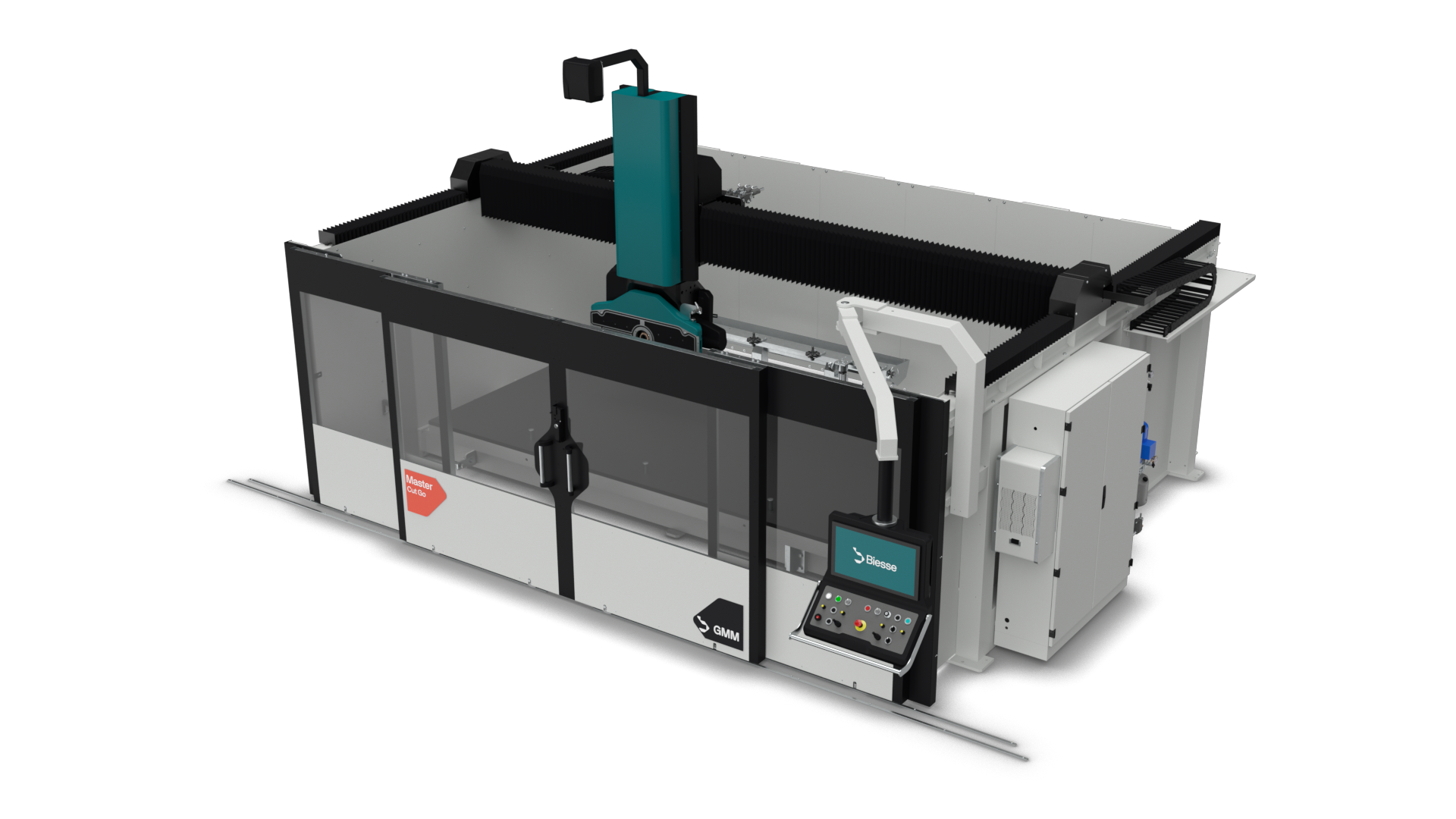

Master Cut GO C M is a compact, reliable 5-axis CNC monoblock saw designed for maximum ease of use. Its robust, integrated structure ensures fast installation and high-quality performance even in tight spaces. Intuitive programming enables immediate start-up and versatile processing for homeware and furniture applications.

Human Machine Interface

Control at your fingertips: smart, intuitive and ready to go. The 21″ ergonomic multitouch HMI is integrated into the machine controls, supported by GMM software designed to be simple, innovative and intuitive, enabling quick and efficient start-up of any stone-processing job.

Side Spindle

Integrated in the head for faster workflows.The Side Spindle, built into the machine head, works with the blade and Vacuum System to cut processing times. It excels at creating kitchen worktops in just a few steps, ensuring stable, efficient, and precise operations.

Vacuum System

Save time and energy. The Vacuum System, integrated on the machine head, automatically handles parts across the worktable. Aligned with the Z-axis, its design minimizes backlash and torque, ensuring maximum stability and efficiency.

5 Axis Technology

Unlock complex cuts with ease. The 5-axis bridge saw enables advanced stone processing with precision. Its head moves and rotates in multiple directions, allowing complex shapes and angles to be cut efficiently, all while maintaining stability and accuracy.

Slab Thickness Reader

Automatic precision for perfect cuts. The Slab Thickness Reader measures slab thickness and automatically compensates for variations. This ensures consistent cutting accuracy, optimized material use, and precise results, even for complex operations like inclined cuts.

Magnetic tool changer

The right tool, always ready. The 4-position Magnetic Tool Changer enables fast and precise tool swaps. Designed for milling and drilling, it is ideal for users working with a variety of tool diameters.

Tool Diameter Reader

Real-time control for flawless machining. The Tool Diameter Reader precisely measures cutting tools and integrates with the machine software. It monitors wear and enables automatic adjustments, ensuring reliable, consistent, and highly accurate processing every time.

Camera

The right point of view. The Camera, integrated on top of the machine head, moves with it to capture the optimal perspective of each slab. This ensures precise edge detection, accurate measurements, and efficient, error-free machining.

Main Techinical Data

TECHNICAL DATA	U.M.	Value
Interpolated Axes	n°	5
Maximum longitudinal stroke (X Axis)	[mm]	3800
Maximum bridge translation (Y Axis)	[mm]	2900
Maximum vertical travel of the blade (Z Axis)	[mm]	480
Maximum Blade Orientation Angle (W Axis)	°	0 ÷ 370
Maximum blade tilting (R Axis)	°	0 ÷ 90
Worktable Area	[mm]	3800x2250
Worktable Area with table extension	[mm]	3800x2400
Maximum blade diameter	[mm]	625
Maximum cutting depth	[mm]	205
Blade Hole	[mm]	60
Blade Locking Flange Diameter	[mm]	213
Blade motor power	[kW]	13 (S6) / 16,5 (S6)
Side spindle motor power	[kW]	4
Variable Blade Speed?	rpm	800 ÷ 6000
Variable Side Spindle Speed	rpm	12000
Variable Sledge Cutting Speed (X Axis)	[m/min]	35
Variable Sledge Cutting Speed (Y Axis)	[m/min]	35
Maximum Speed Z Axis	[m/min]	7,5
Water Clean Consumption (3 bar - psi)	[l/min]	30
Air Consumption (6 Bar - psi) (* With Vacuum System)	[l/min]	55 (*355)
Max liftable weight with vacuum system	[kg]	500
Standard Installation Dimensions (Width X Depth X Height)	[mm]	7600x4480x3570
Total machine mass	[kg]	5000
