Master Cut Pro B W
Digital Catalogue
Register or log in to download the digital catalogue
More info
Fill in the form, specifying your requirements, and one of our experts will be in touch as soon as possible

Big block cutter with 5-axis bridge saw agility.

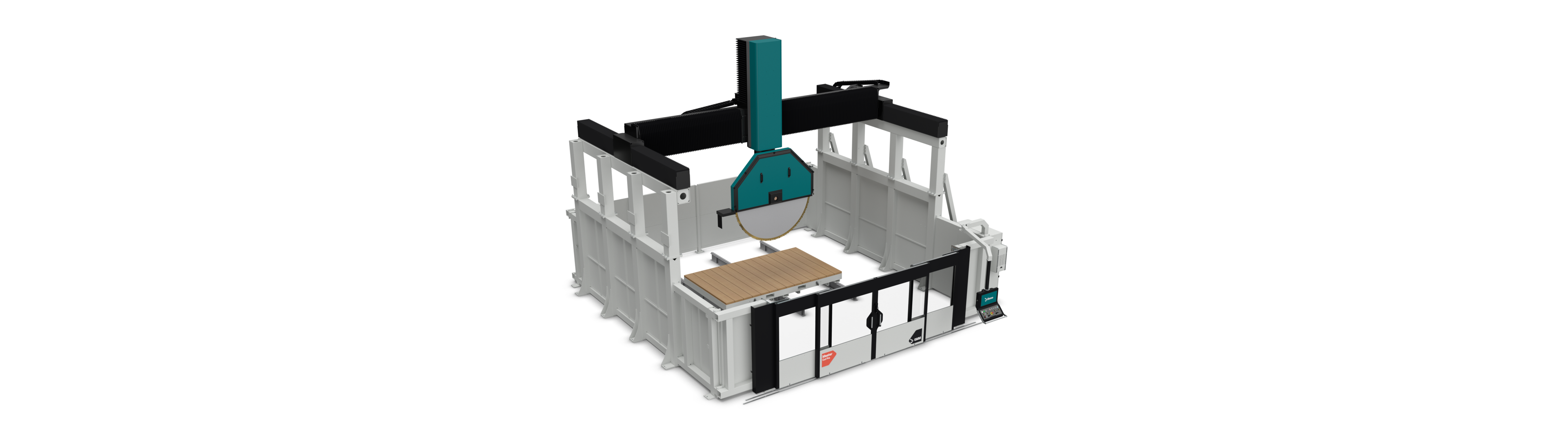

Master Cut Pro B W: a one-of-a-kind machine concept, delivers the power of a large block-cutting machine with the agility and versatility of a 5-axis bridge saw. Its robust structure, advanced motion technology and precise control system enable complex cuts, high productivity and exceptional accuracy. Master Cut Pro B W is engineered to handle demanding workloads while providing the flexibility required for modern stone processing.

Human Machine Interface
Human Machine Interface

Control at your fingertips: smart, intuitive and ready to go. The 21″ ergonomic multitouch HMI is integrated into the machine controls, supported by GMM software designed to be simple, innovative and intuitive, enabling quick and efficient start-up of any stone-processing job.

Cutting Capabilities
Cutting Capabilities
The machine offers versatile cutting capabilities, including vertical, inclined, parallel, orthogonal, and diagonal cuts. Its tilting head and precise guides ensure flexibility and accuracy for every production need.
Workable Dimensions
Workable Dimensions
Flexibility for every material size. The machine accommodates large and thick materials, with blade diameters up to Ø 1400–2200 mm (depending on configuration) and cutting depths from 510 mm to 910 mm. This allows cutting everything from thin veneers to blocks nearly a meter thick without platform changes.
Architecture
Architecture
Built to last under any load. The machine features a robust structural design with welded and hot‑galvanized steel, stabilized to ensure dimensional stability even under heavy loads, providing durability and reliable performance.
5-Axis Technology
5-Axis Technology

Achieve complex shapes with precision. With a tilting and rotatable head, the optional 5-axis system enables non-standard cuts, ideal for customized work and intricate profiles, providing maximum flexibility for advanced stone processing.

Mechanical System
Mechanical System
Smooth, precise, and reliable motion. The machine features brushless axes with absolute encoders, recirculating ball guides, and zero-backlash rack-and-pinion drives, ensuring fluid, repeatable, and highly accurate movements for every operation.

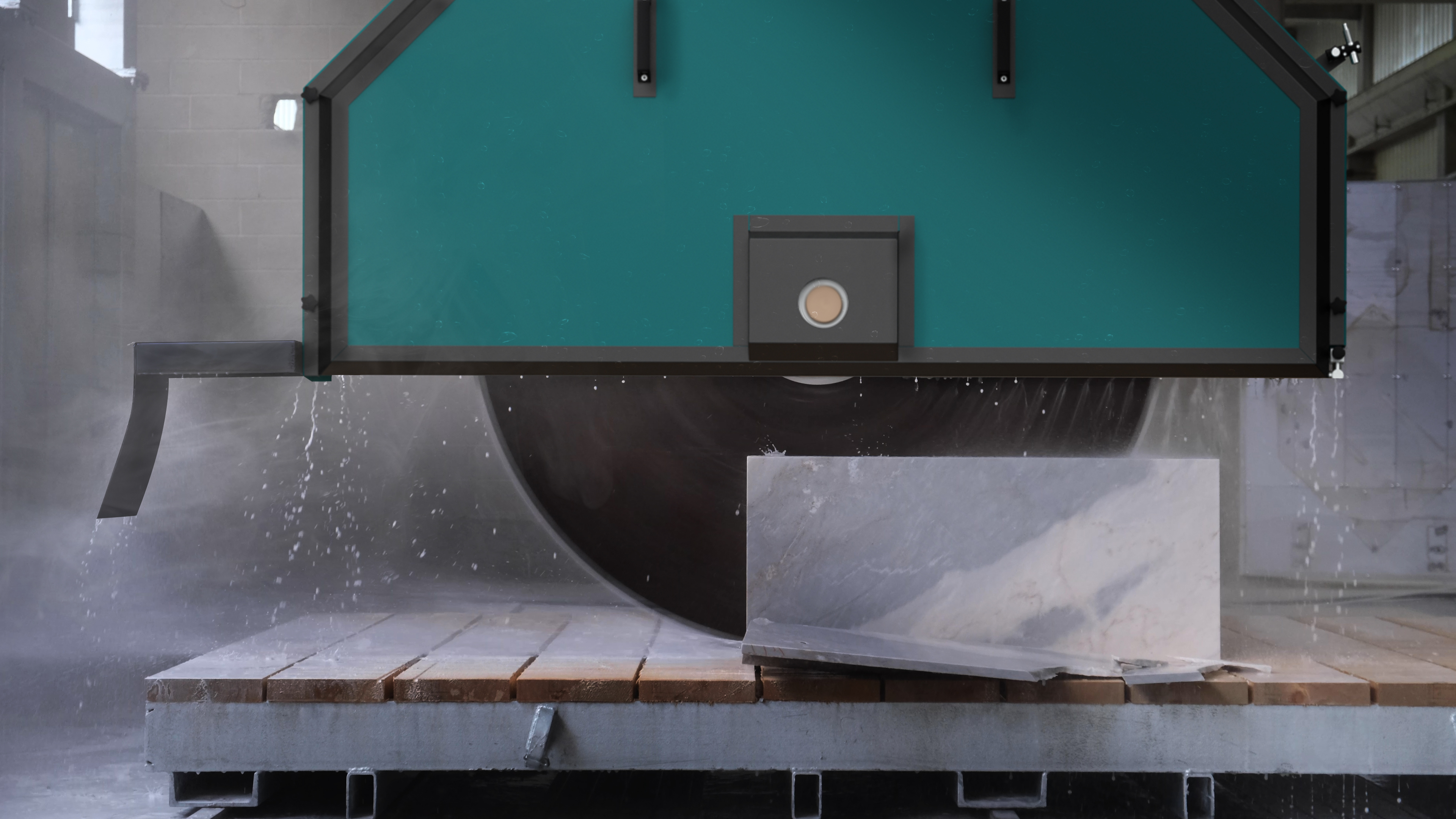

Power and Gear Reducer Head
Power and Gear Reducer Head
All the power you need for precise cutting. The Master Cut Pro B W features a high-power motor, up to 57kW, and gear reducer head, delivering exceptional torque and speed control. This ensures efficient, precise cutting of hard materials, deep cuts with large tools, and reliable performance for small or large productions.
Continuous and Efficient Operations
Continuous and Efficient Operations
Flexible production with streamlined workflow. The machine handles both serial and single-piece processing while the low table support with adjustable anchors allows fast, easy material loading and unloading. This combination ensures smooth, high-throughput operations.

main technical data

TECHNICAL DATAU.M.Value
Interpolated Axesn°3 (5)
Maximum longitudinal stroke (X Axis)[mm]4000
Bridge translation (Y Axis) (Min/Max Std defined)[mm]3650 to 14500
Maximum vertical travel of the blade (Z Axis)[mm]1300
Maximum Blade Orientation Angle (W Axis)°0 ÷ 370
Maximum blade tilting (R Axis)°0:46°
Worktable Area[mm]3500x2000
Maximum blade diameter std /Optional[mm]2200
Maximum cutting depth[mm]910
Blade Hole for Std Motor[mm]80
Blade Locking Flange Diameter[mm]370
Blade motor power[kW]44 / 57 (S6)
Variable Blade Speed for Std Motor / for Iso cone 50 Motor [rpm]350 ÷ 600
Variable Sledge Cutting Speed (X Axis)[m/min]36
Variable Sledge Cutting Speed (Y Axis)[m/min]36
Maximum Speed Z Axis[m/min]6
Water Clean Consumption (3 bar - psi)[l/min]60
Air Consumption (6 Bar - psi) (* With Vacuum System)[l/min]80
Standard Installation Dimensions (Width X Depth X Height)[mm]9500x7830x6140
Total machine mass (without steel wall and table)[kg]8555

Sectors & Applications

Block size reduction
Block size reduction
Making slabs from blocks
Making slabs from blocks
