塑料、树脂、复合材料及轻合金大型部件加工的理想伙伴

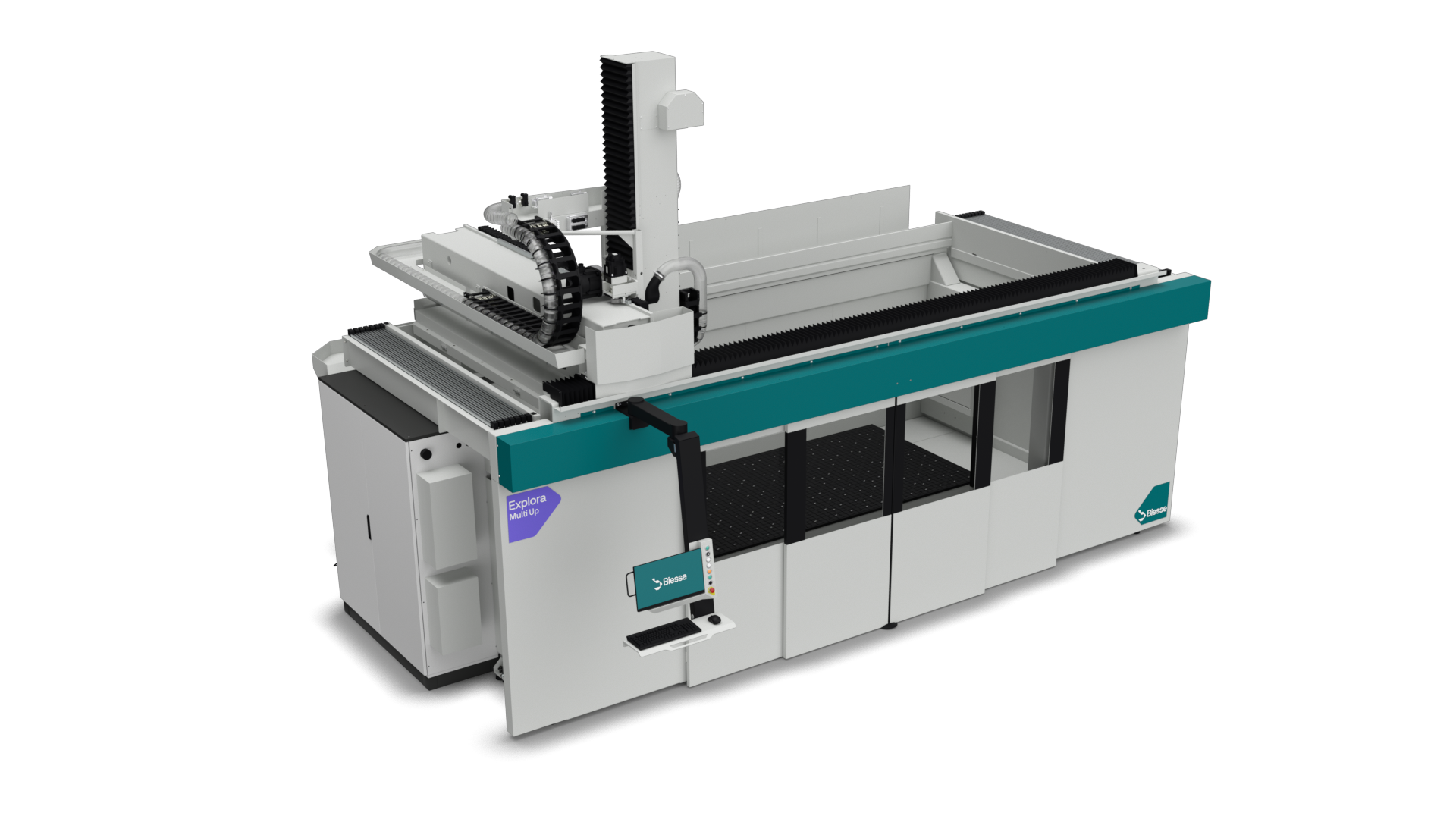

Explora Multi Up M C 是一款多功能五轴数控加工中心，专为加工塑料、复合材料、轻合金和树脂等三维构件而设计

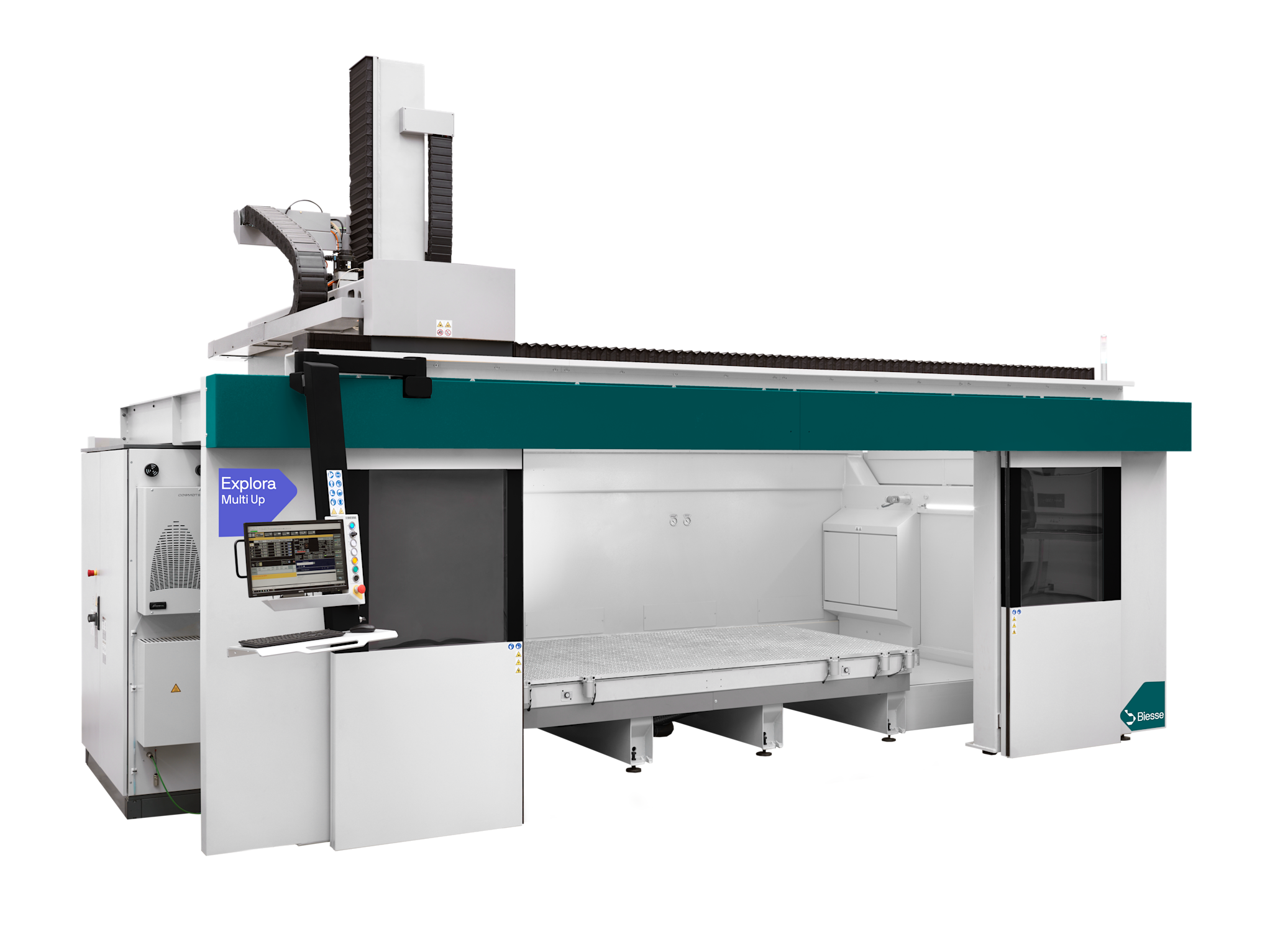

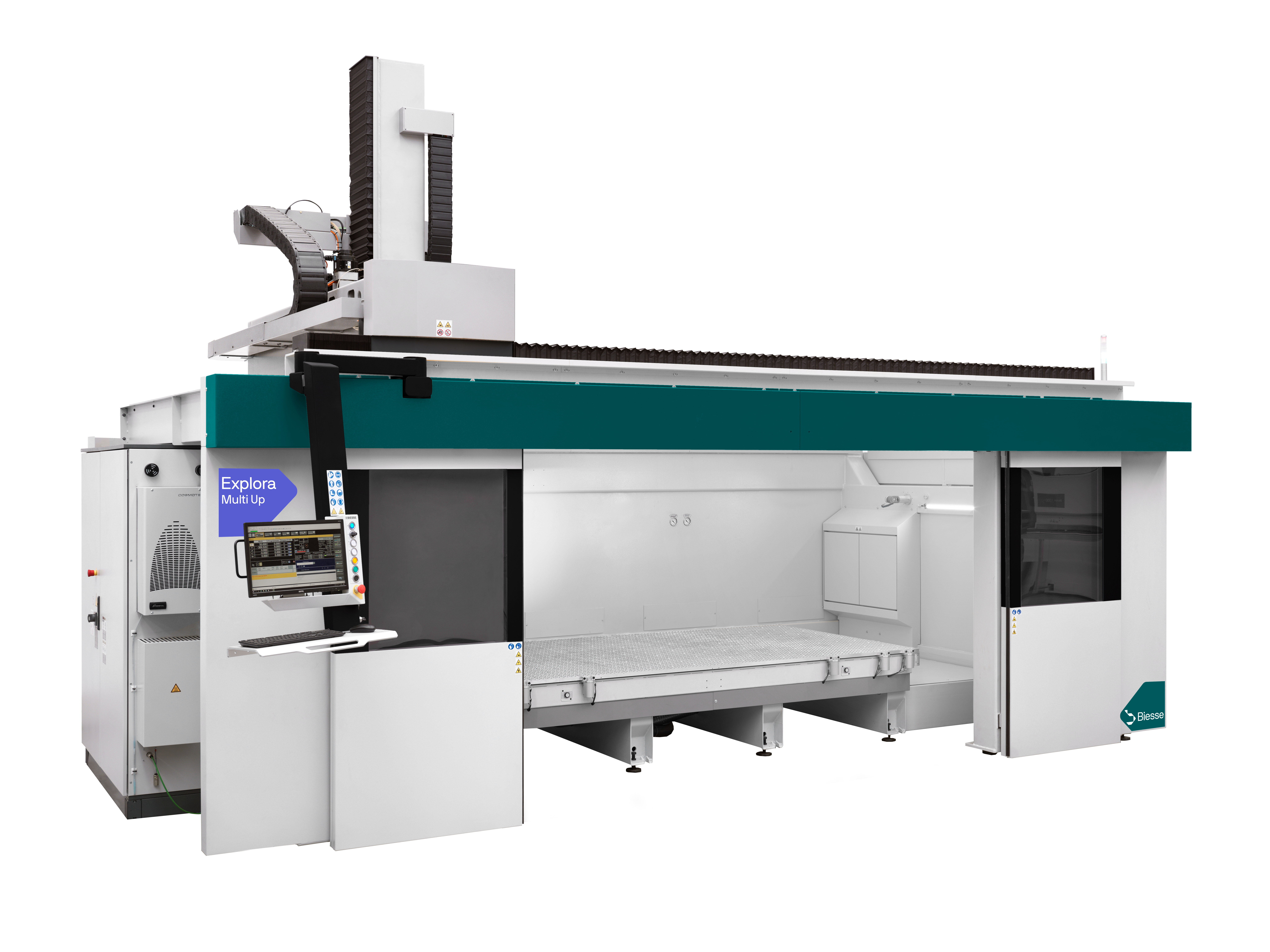

Robust by design

At the base of the Explora Multi Up M C family is a robust supporting structure made of electro-welded steel.

The rear “horseshoe”-shaped frame is connected at the front by four columns and an upper crossbeam, linking the two sides above the front opening and ensuring precision and repeatability during machining.

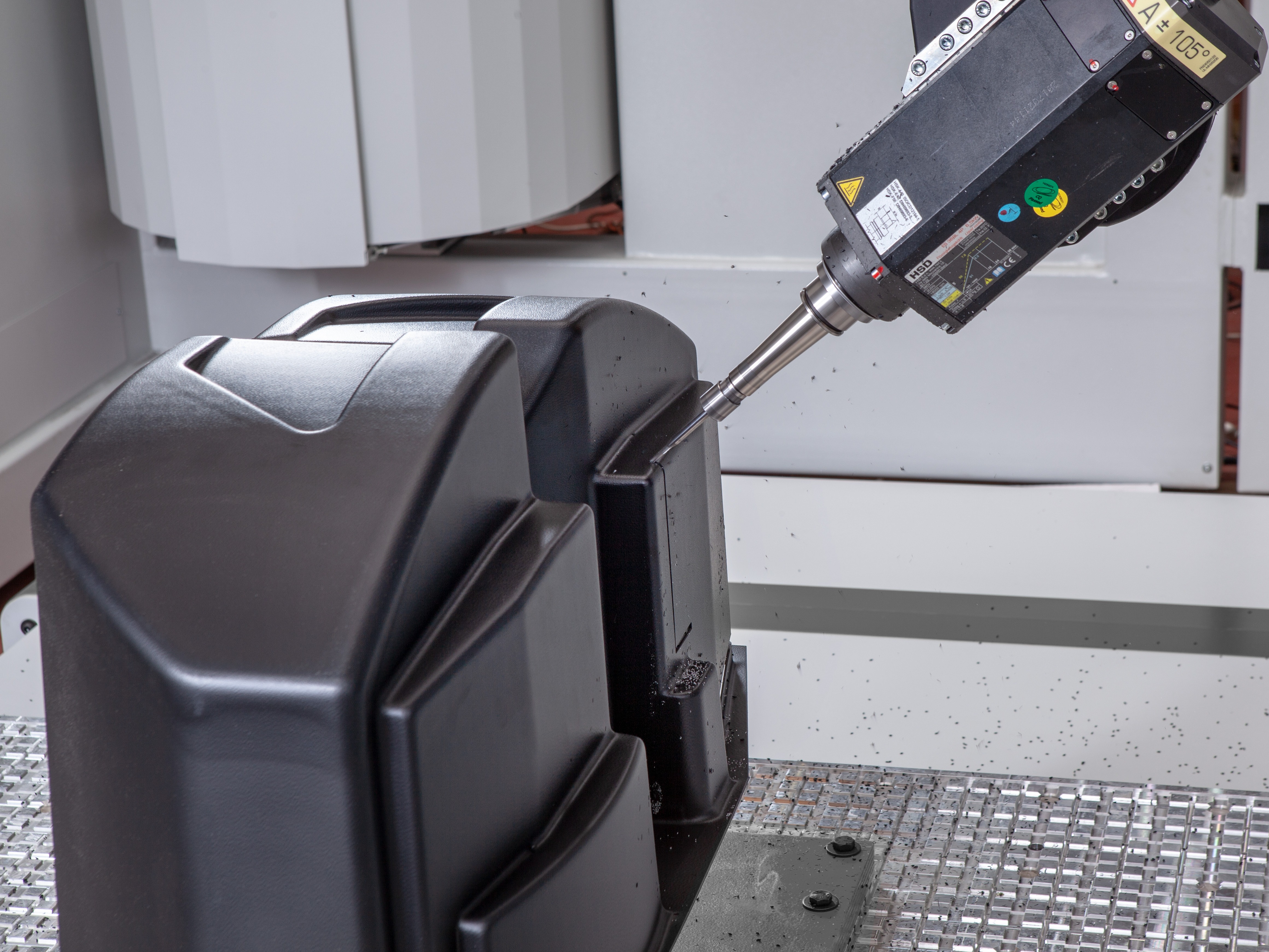

Flexible 5-axis machining for complex and large parts

It is the machining center that allows 3D parts and large or high-volume components processing with continuous axis interpolation. It is the the ideal flexible solution for a wide range of applications.

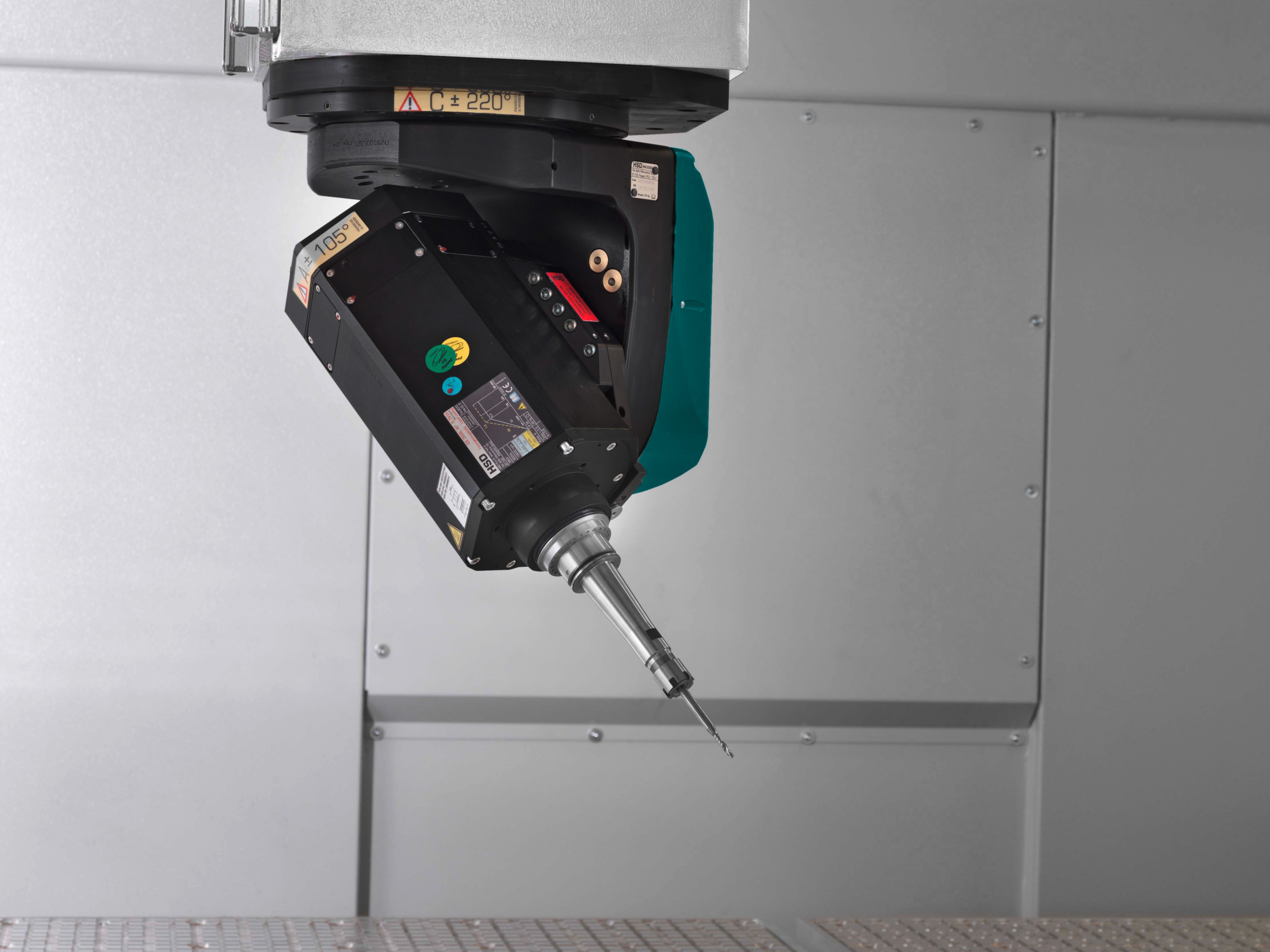

Configurable 5-axis unit options

This flexible CNC machining center can be equipped with a 5-axis unit of 15 kW and 11 kW to meet every customer need.

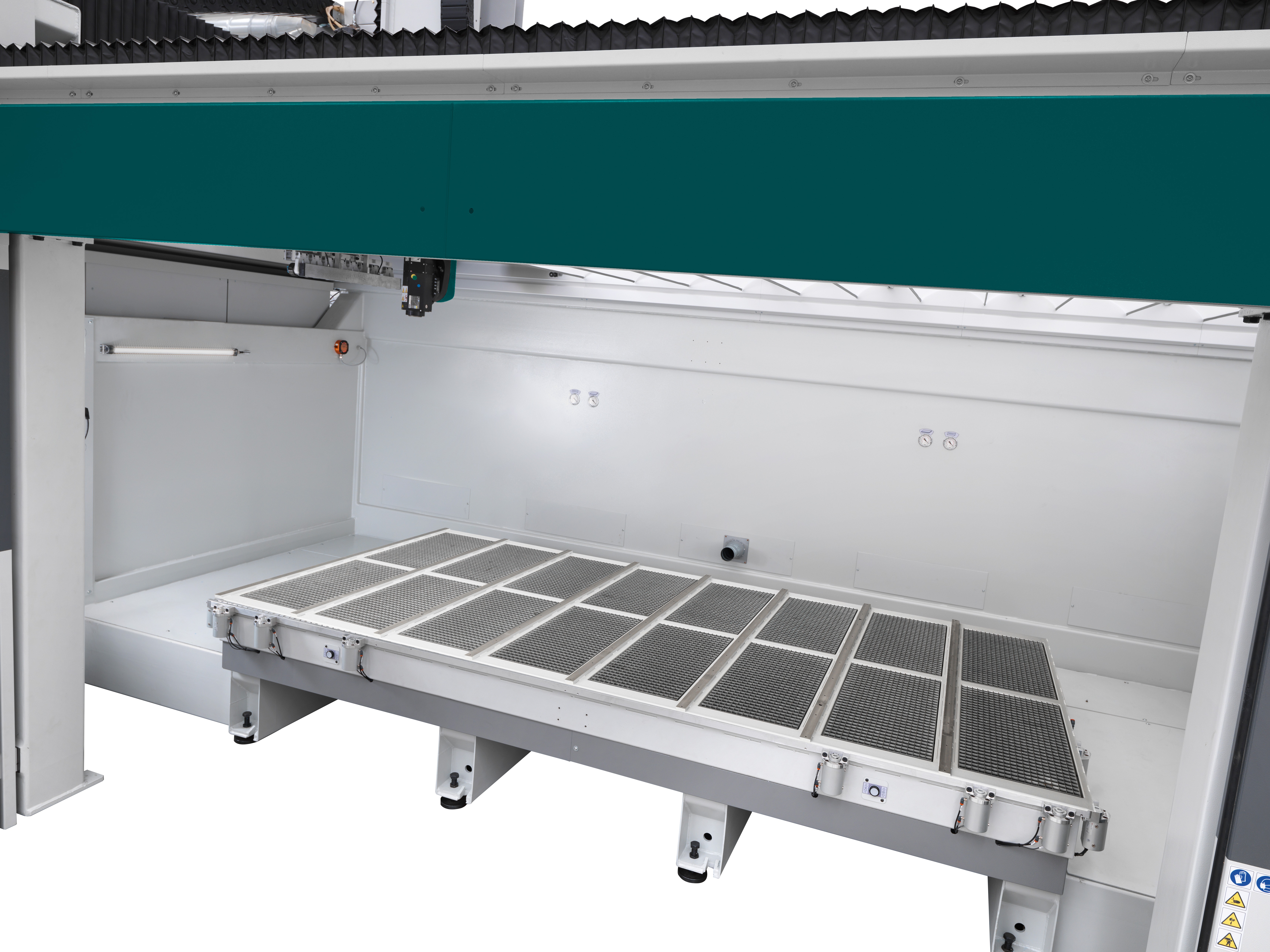

Versatile working table options

To support all clients in their specific jobs, Explora Multi Up M C can be equipped with four different working table, each with a specific design. Open grate, gridded aluminum or phenolic, or with T-slots, avialable with both mechanical and vacuum fixturing.

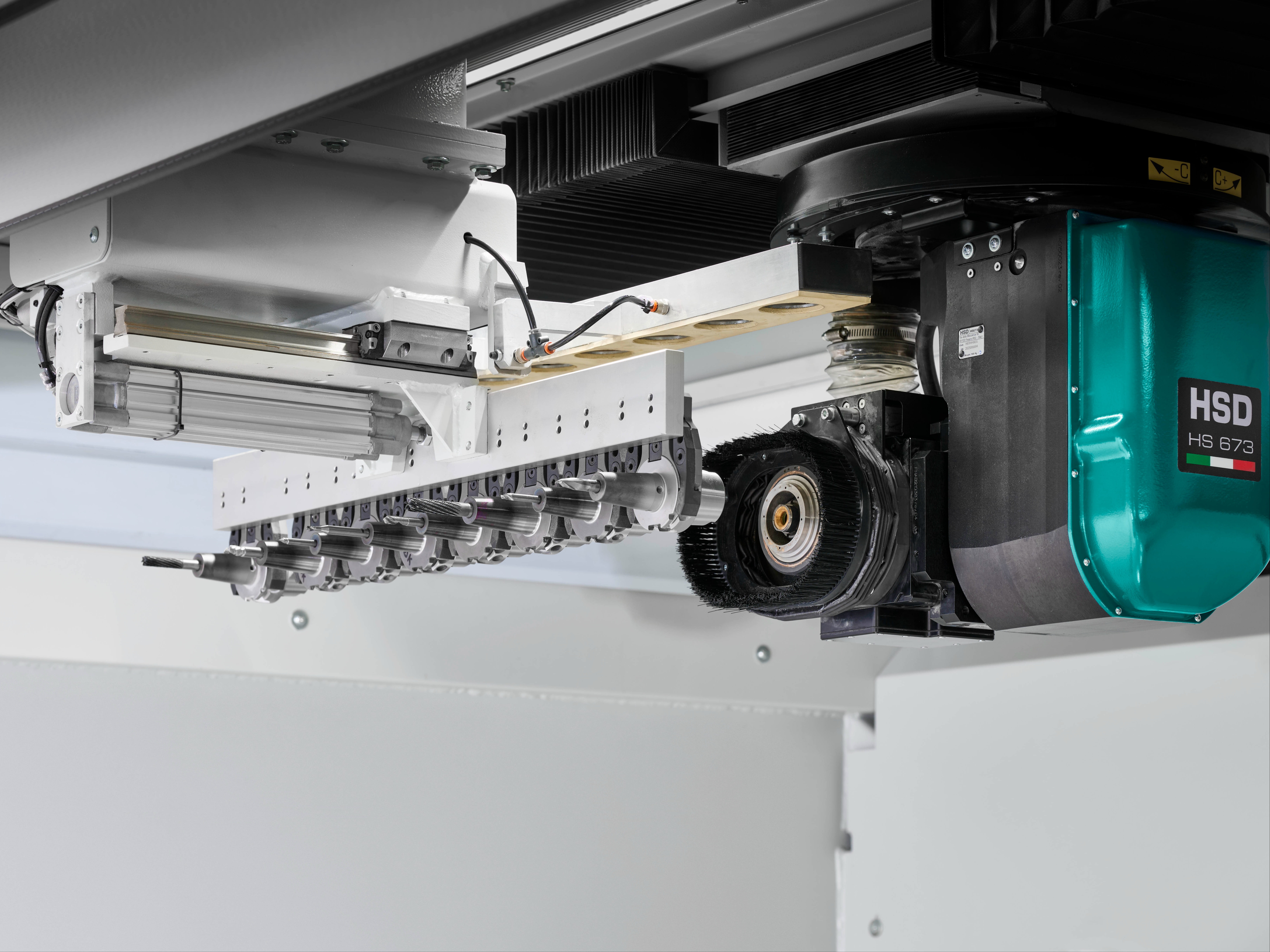

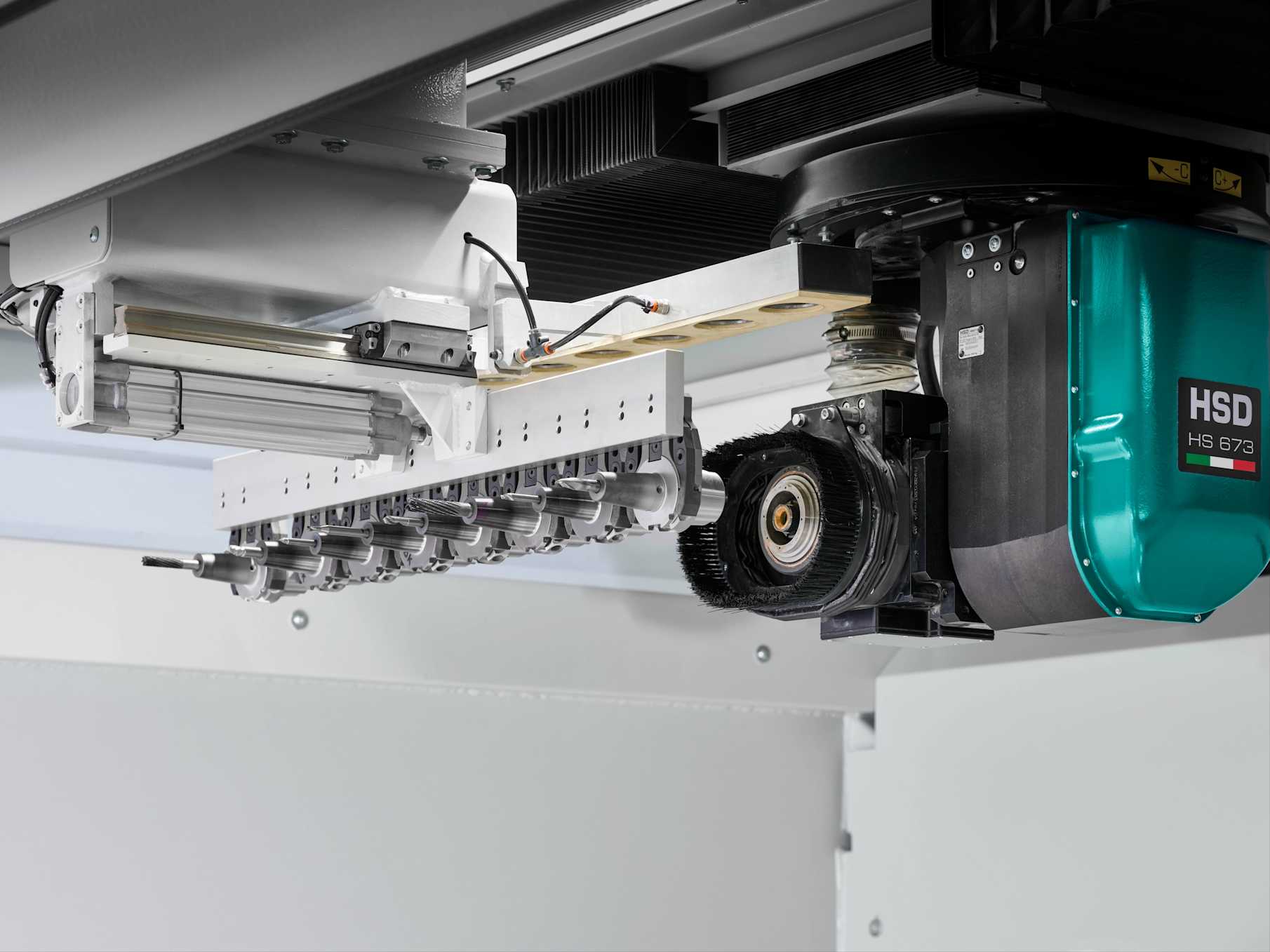

Tool management tailored to your needs

The CNC machining center can be equipped with one or two tool magazines, each with a capacity of eight tools. The main magazine is positioned under the gantry bridge to reduce tool change time and support pendulum machining functionality. An additional rotary tool magazine, with a capacity of up to 16 tools, can be installed on the right side of the machine to further increase tool availability and operational flexibility.

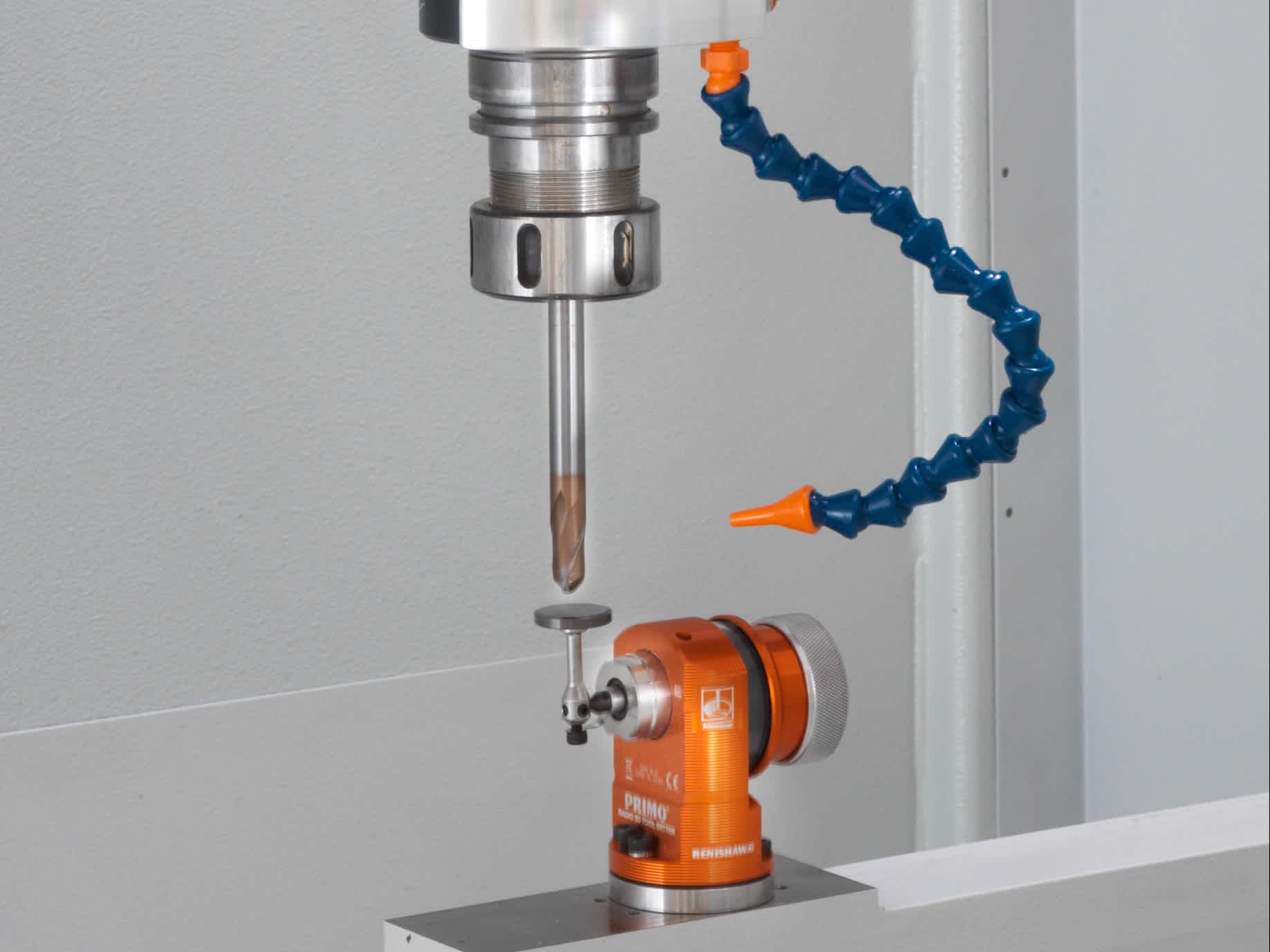

Integrated measurement and probing solutions

The Explora Multi Up M C by Biesse is equipped with advanced presetter and probe systems to enhance precision and efficiency in machining operations.

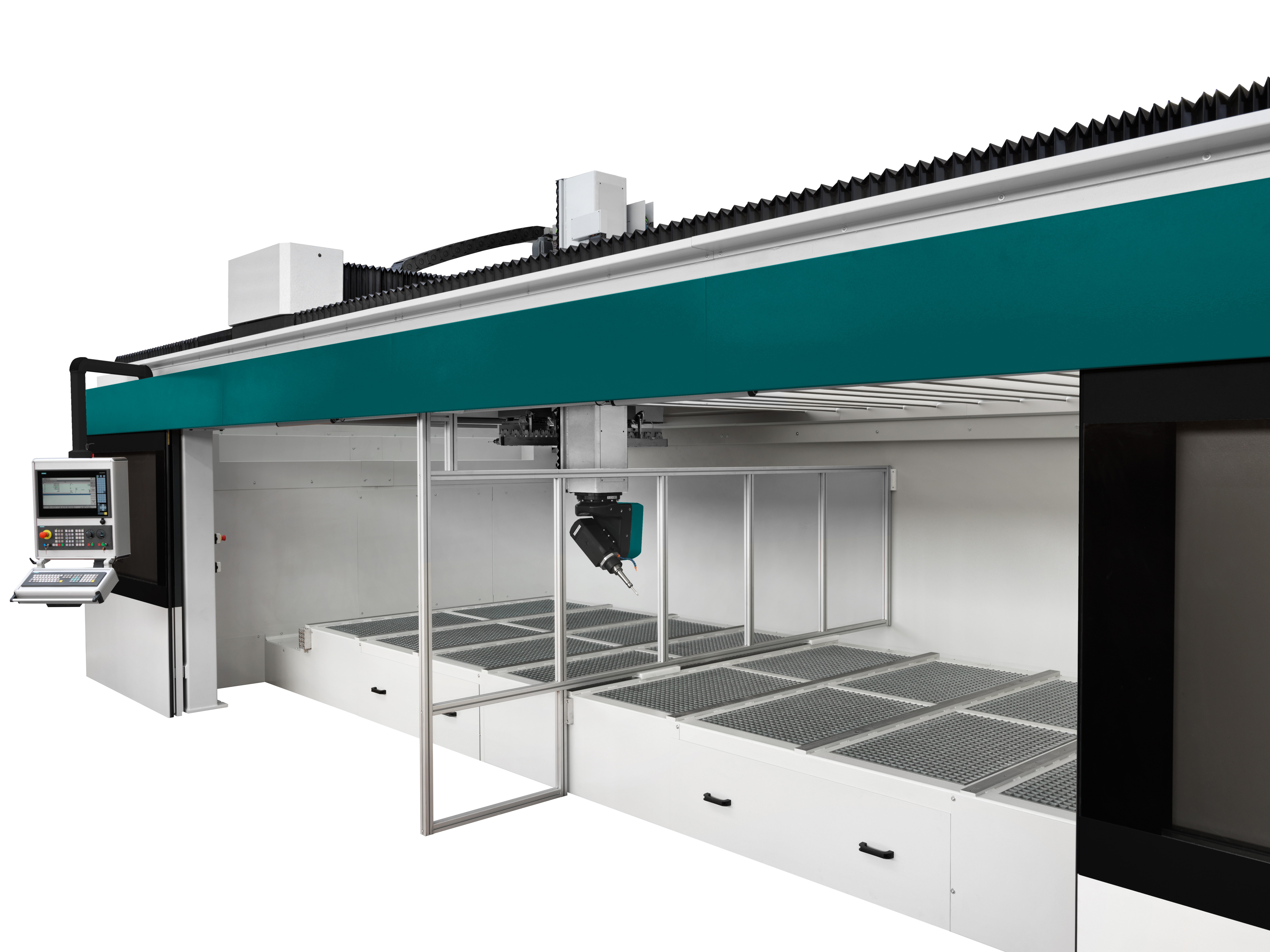

Continuous production with pendulum operation

A removable partition can be installed in the working area to enable pendulum machining mode. Pendulum machining improves overall efficiency by allowing the operator to load or unload one station while the machine continues processing on the other. This parallel workflow reduces setup time, minimizes idle periods, and extends effective machine operating time.

Technical specification

		U.M	3015	3020	4020	5020
HS300D head	Max. workable dimensions along X-axis	[mm]	2915	2915	3915	4915
	Max. workable dimensions along Y-axis	[mm]	1265	1765	1765	1765
	Max. workable dimensions along Z-axis	[mm]	1017,5	1017,5	1017,5	1017,5
	Pivot	[mm]	182,5	182,5	182,5	182,5
HS673 head	Max. workable dimensions along X-axis	[mm]	2910	2910	3910	4910
	Max. workable dimensions along Y-axis	[mm]	1260	1760	1760	1760
	Max. workable dimensions along Z-axis	[mm]	930	930	930	930
	Pivot	[mm]	185	185	185	185
