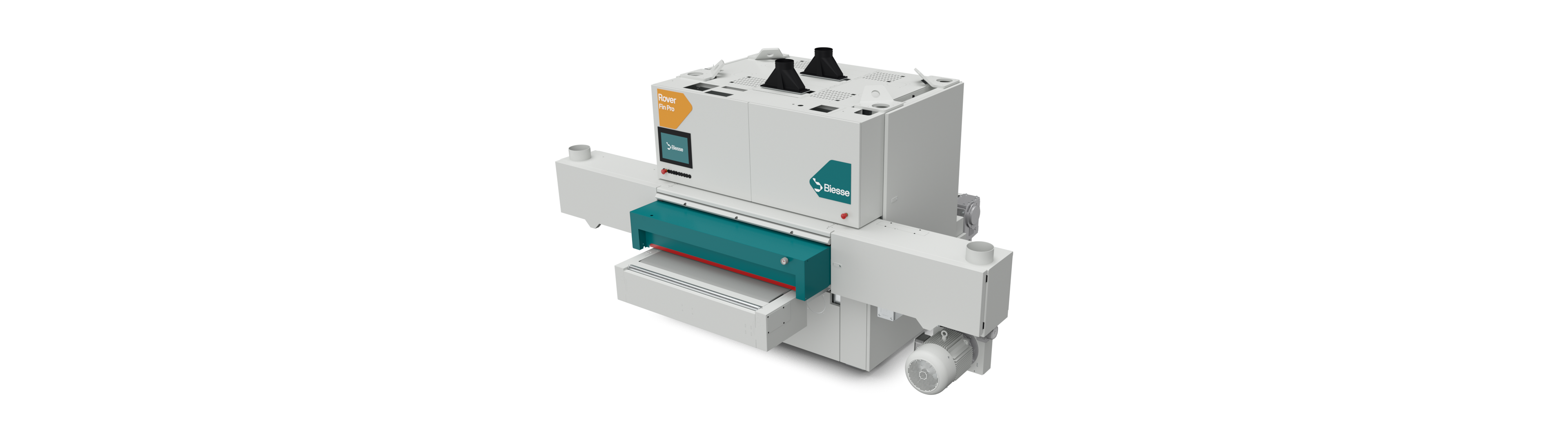

面向大批量加工的高性能砂光中心

专为大型企业设计的顶级砂光中心，支持高品质与高产能的自动化表面处理作业。

Open architecture for flexible configuration

Thanks to its open configuration, the machine can be equipped with up to 8 operating units, offering unmatched flexibility to meet specific production needs. From heavy-duty calibration to ultra-delicate surface finishing, it adapts to a wide range of applications while maintaining outstanding performance.

Maximum productivity for high-volume production

Available in multiple working widths (1350, 1600, and 1900 mm) and capable of feed speeds exceeding 30 m/min, the machine is designed for intensive and high-volume production. Engineered to handle large panels and demanding production cycles, it ensures reliable 24/7 operation. The 3250 belt length configuration maximizes machine uptime by reducing belt replacement frequency, limiting interruptions and sustaining production flow.

Seamless line integration

The Rover Fin Pro S can be integrated with bottom sanding machines and/or painting lines, enabling efficient and automated workflows while reducing manual intervention.

Total versatility for complex applications

The machinecombines brush units and planetary systems, enabling the processing of 3D panels and complex geometries. Together with traditional units such as rollers, pads, superfinishers, cross units, and planers, it allows fully customized configurations for any finishing requirement.

Perfect results for high-gloss surfaces

Cross units, available in compact and long-belt configurations, can be installed at either the infeed or outfeed of the machine. The long-belt configuration excels in high-gloss finishing applications, producing flawless surfaces and repeatability, even across large production runs.

Surface quality for delicate finishing

The patented Low-Pressure Pad preserves surface integrity by minimizing abrasion and compression marks.All electric pads, controlled by IPC, feature the exclusive Save Corner function, which protects panel edges by reducing sanding pressure on corners, ensuring consistent quality even on delicate surfaces.

High-Performance roller technology

Roller units, available in different diameters and hardness levels, support calibration, pre-sanding, and finishing operations. Large-diameter rollers (up to 400 mm) with soft rubber coating, combined with pad and superfinishing units featuring patented low-pressure technology, achieve excellent results on raw, veneered, and painted panels. The HP technology enables the processing of panels with thickness variations up to 1.4 mm without repositioning, shortening setup times while preserving finish uniformity throughout production.

Advanced brushing systems for complex applications

Rover Fin Pro S integrates vertical and longitudinal brushing systems to address a wide variety of finishing applications.The Xspin Plus unit handles complex grain directions, edge rounding on painted panels, and non-flat surfaces, removing the need for manual operations and improving process consistency. Longitudinal brushing units, also combinable with XspinPlus, can be equipped with interchangeable abrasive brushes for processing non-flat elements, as well as steel or Tynexbrushes for structuring solid wood components.

Technical Specifications

		2 groups	3 groups	4 groups
Working width	[mm]	1350	1350	1350
Min-max processing thickness	[mm]	3 - 200	3 - 200	3 - 200
Size of longitudinal sanding belts	[mm]	1380 x 2620	1380 x 2620	1380 x 2620
Size of cross sanding belts	[mm]	150 x 5520	150 x 5520	150 x 5520
Forward speed	[m/min]	4 - 20	4 - 20	4 - 20
Operating pressure	bar	6	6	6
Mass (variable according to composition)	Kg	5830	7630	8600
Motor power up to	kW (HP)	37 (50)	37 (50)	37 (50)
