Rover Drill Up R V
Solicita una demostración
Rellena el formulario, especificando tus necesidades, y uno de nuestros expertos se pondrá en contacto contigo lo antes posible.

Compact and versatile: the vertical drilling solution for “just in time” production.

Rover Drill Up R V is the compact drilling solution for multi-product manufacturers working with batch-one or small-batch production. Flexible, precise, and efficient, it supports both manual and automated part management adapting seamlessly to your production needs. The ideal choice for modern just-in-time manufacturing.

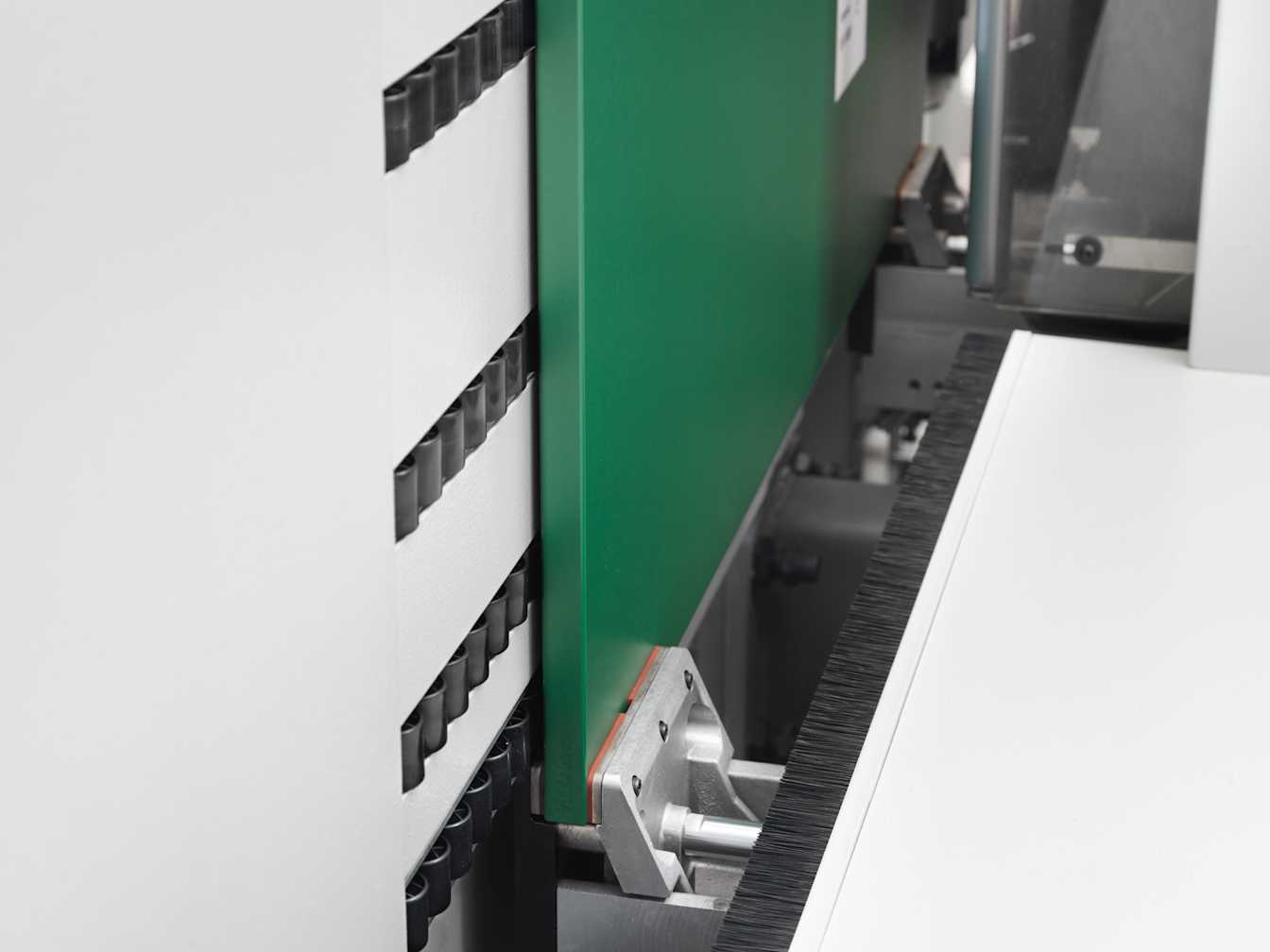

Double grippers system
Double grippers system

The double gripper system ensures precise and stable panel holding throughout the entire machining process, driven by two independent brushless motors. The rigidity of the dual clamping system guarantees maximum accuracy even during complex and heavy operations, while independent gripper management allows the piece to be repositioned multiple times on long panels, eliminating any risk of losing the original reference or causing collisions.
Thanks to a high-performance acceleration system, panels reach speeds up to 110 m/min, over four times faster than standard, with rapid acceleration ramps that significantly reduce cycle times and enable quicker panel movement and gripper repositioning.

Delicate surfaces management
Delicate surfaces management
Handling and processing panels with delicate surfaces demands a dedicated solution that eliminates the risk of damage without relying on protective film. This kit combines flocking-covered support rollers in the loading and unloading areas, and a counter-pressure system with rubberized rollers mounted on ball bearings in the processing zone, ensuring precise clamping and a flawless finish on even the most sensitive materials.
Versatility on routing
Versatility on routing
The HSK F63 electrospindle with 'C' axis Torque technology, combined with an 8-position revolver tool changer, significantly increases the machine's operating autonomy and versatility. With more tools immediately available, including Lamello-ready compatibility, the machine adapts seamlessly to a wider range of machining requirements, reducing downtime and boosting overall efficiency.
Dowel insertion system
Dowel insertion system
The dowel insertion system integrates a glue and dowel insertion aggregate into a single, seamless solution designed for high-quality and consistent joinery. The system delivers maximum flexibility on the assembly process.

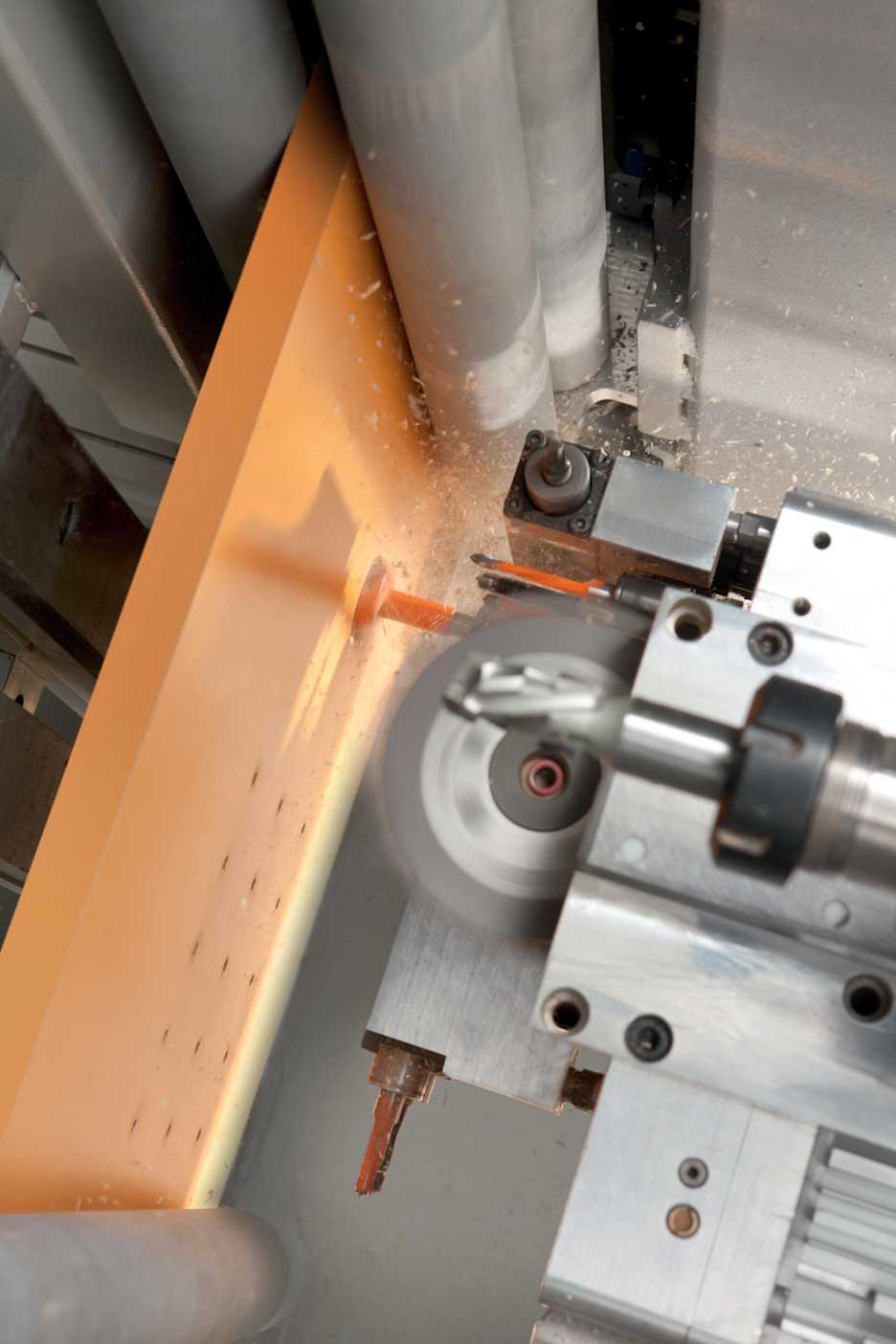

Maximum power and speed in drilling
Maximum power and speed in drilling
Maximum power and speed in drilling are delivered by two self-selecting drilling units, BH21 and BH23, that work in a double-axis configuration to provide unmatched productivity and outstanding flexibility. This setup expands the range of available drilling and grooving operations, making it the ideal solution for demanding production environments where performance and versatility cannot be compromised.
Optimized space and enhancing ergonomy
Optimized space and enhancing ergonomy
The vertical panel management approach of the Rover Drill Up R V minimizes the machine's footprint compared to traditional horizontal systems. This smart use of space translates into a more efficient production layout, allowing manufacturers to optimize their floor space without sacrificing performance or processing capability. Vertical handling of panels to be processed, especially in the case of large elements, is easier than the typical operations of a horizontal machining centers.

Technical specification

minmax
Panel dimension X[mm]2003200
Panel dimension Y[mm]351250
Thickness[mm]8 (2,5 with optional)60
Furniture & Interior components
Furniture & Interior components
Marine furniture
Marine furniture
Caravan furniture
Caravan furniture
