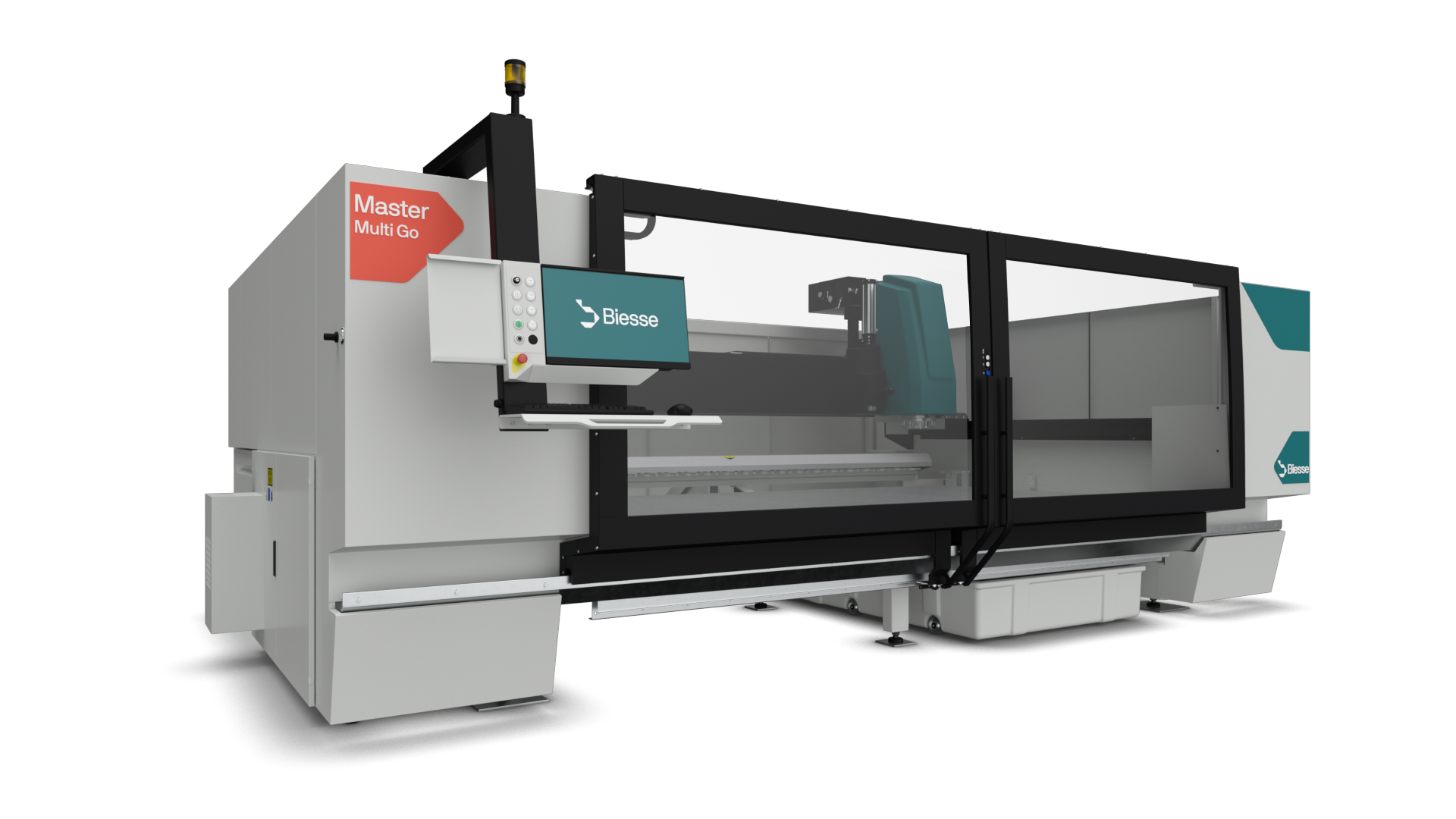

Master Multi Go S MS

Digital Catalogue

More info

Fill in the form, specifying your requirements, and one of our experts will be in touch as soon as possible

The reliable partner for making kitchen top, homeware decorations and furniture

It is compact and super easy to use. It is an intuitive extension of the craftsmen's hands, making difficult operations extremely easy. Every process and every action are executed with care, thanks to the machine's advanced features. Safety is not an option: Master Multi Go is equipped with state-of-the-art safety mechanisms, ensuring that every operation is conducted without a hitch. It is designed mainly, but not only, for kitchen top and homeware furniture, seamlessly blending strength with user-friendly features.

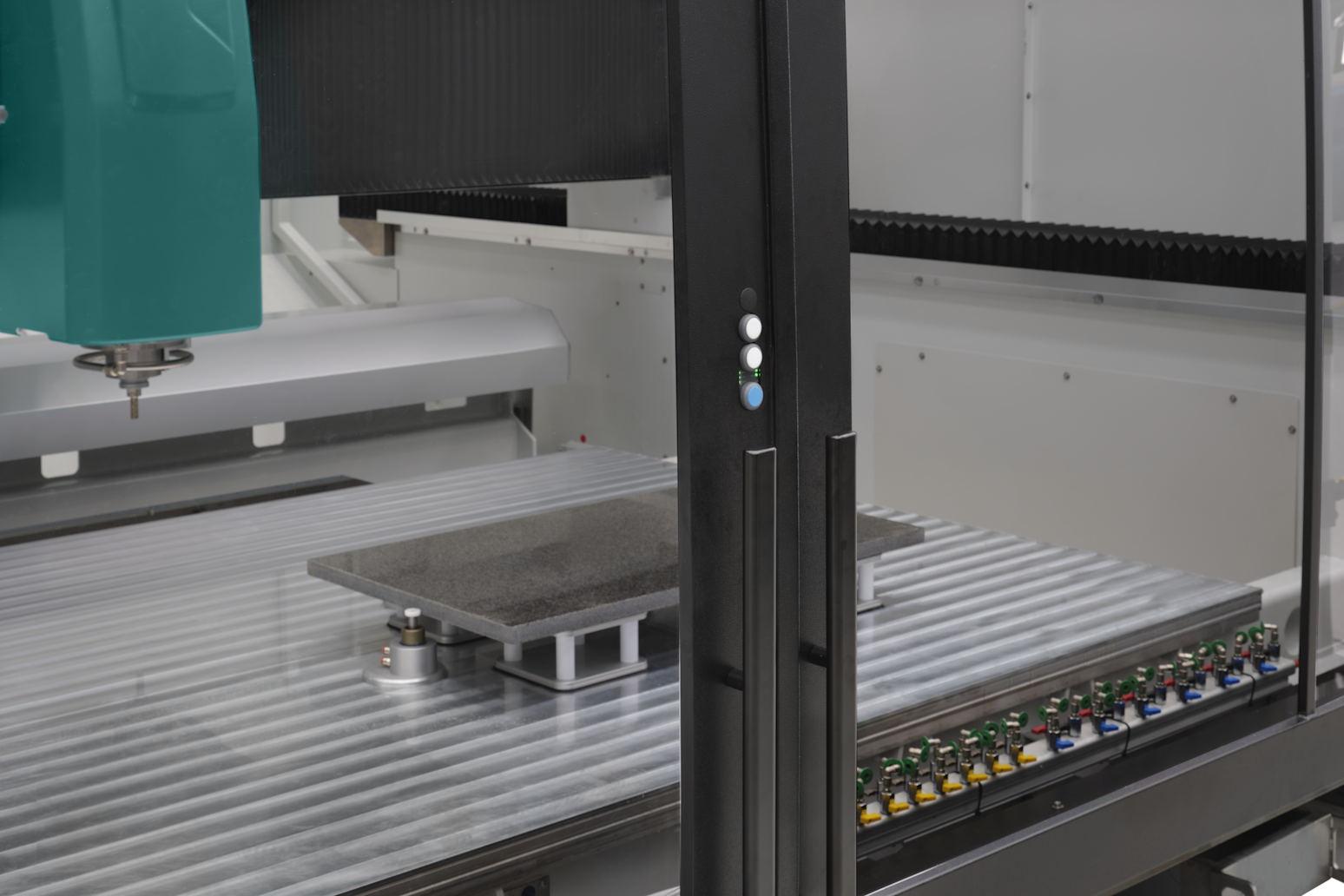

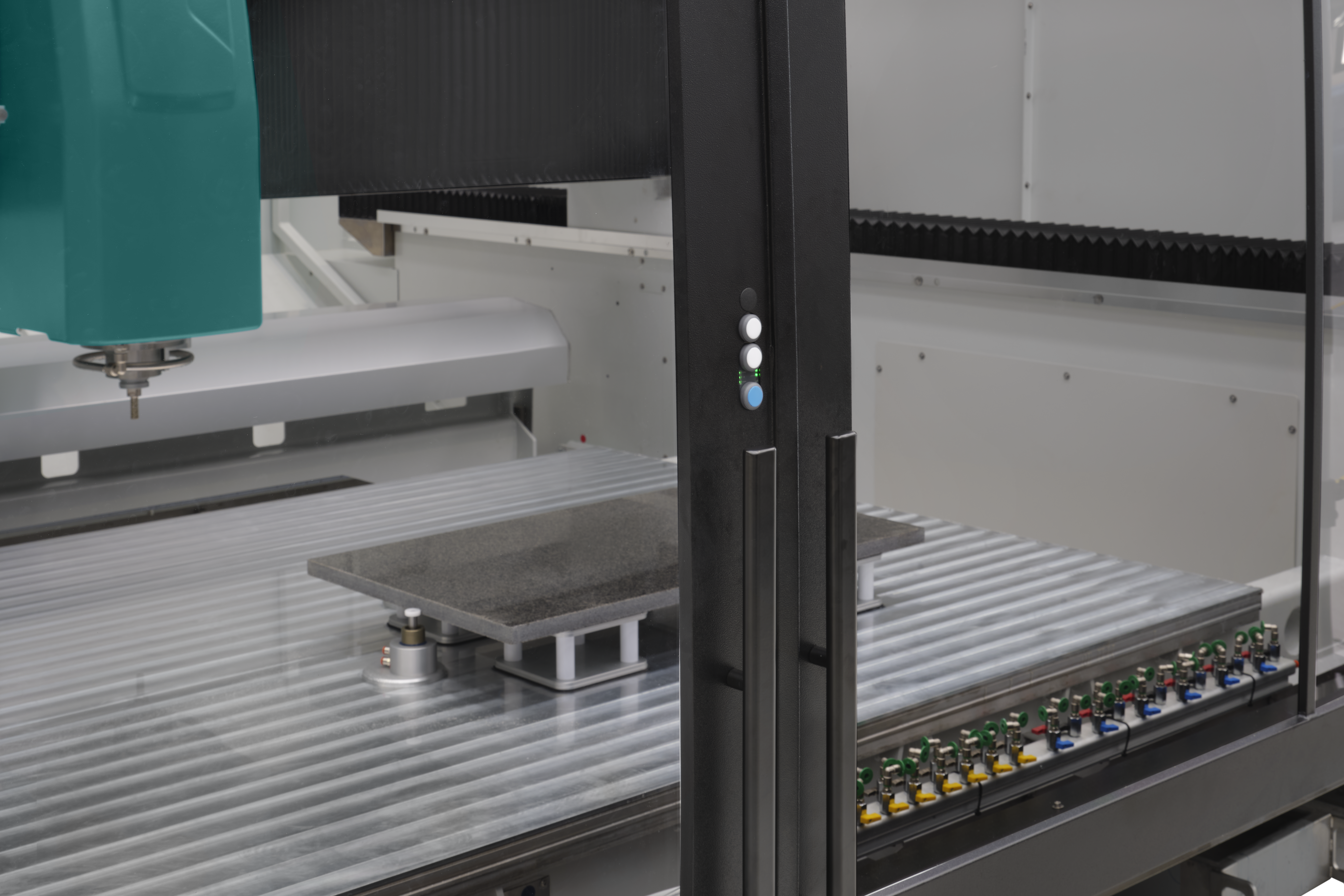

Safety is not an optional

Maximum safety with its fully closed structure, completed with an electro-locking system on the sliding doors. The machine also includes a handbox device for easy control and safety, while clear indicators and ergonomic design make the operator’s tasks simple and secure.

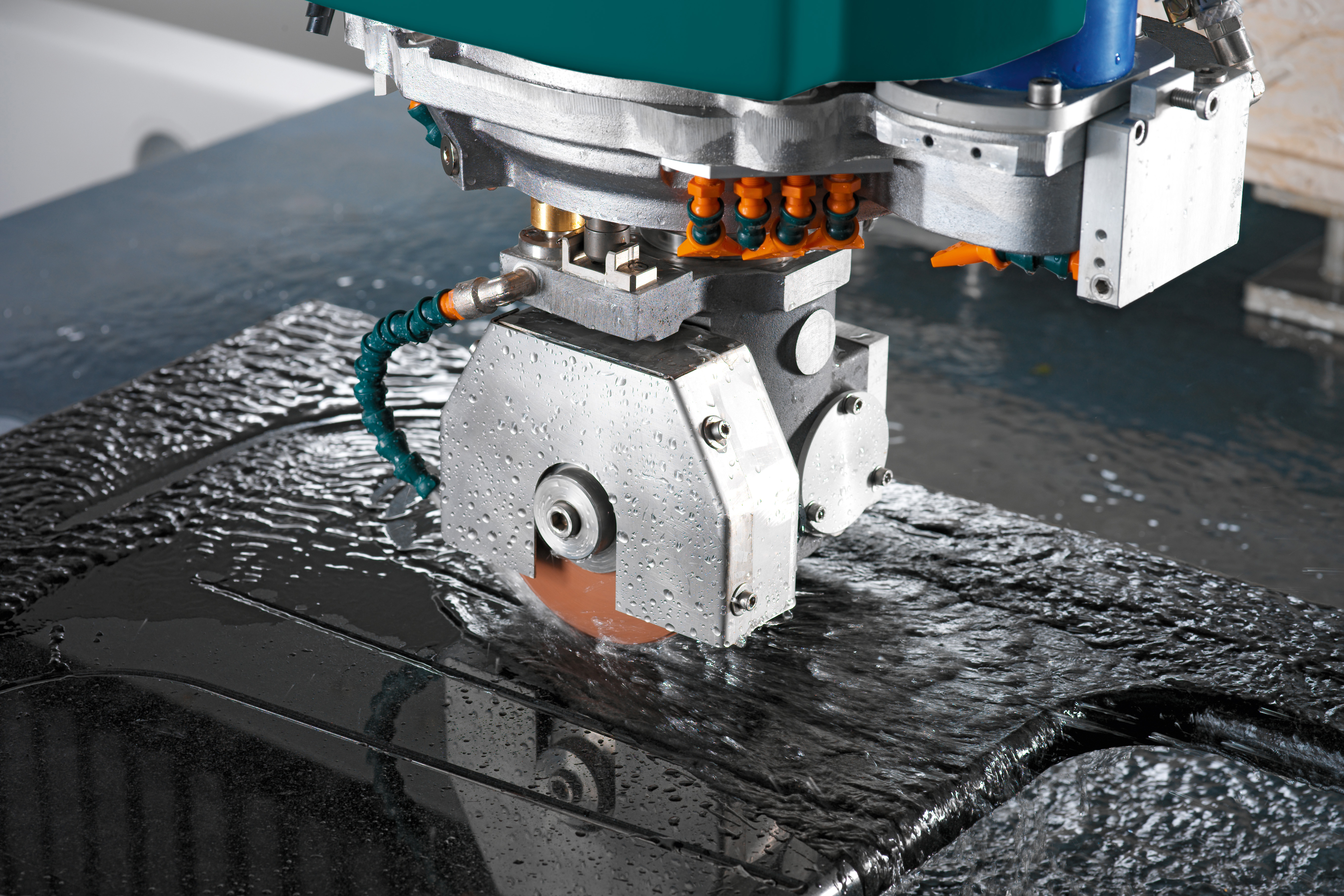

Boost the power of your tools

The machine features a high-performance HSD electrospindle for precise machining of hard materials such as granite, quartzite and Dekton. Optimized cooling systems ensure stability under load, while the C-axis with infinite rotation and pneumatic T-axis (0° to -3°) enable versatile, accurate machining without repositioning the workpiece.

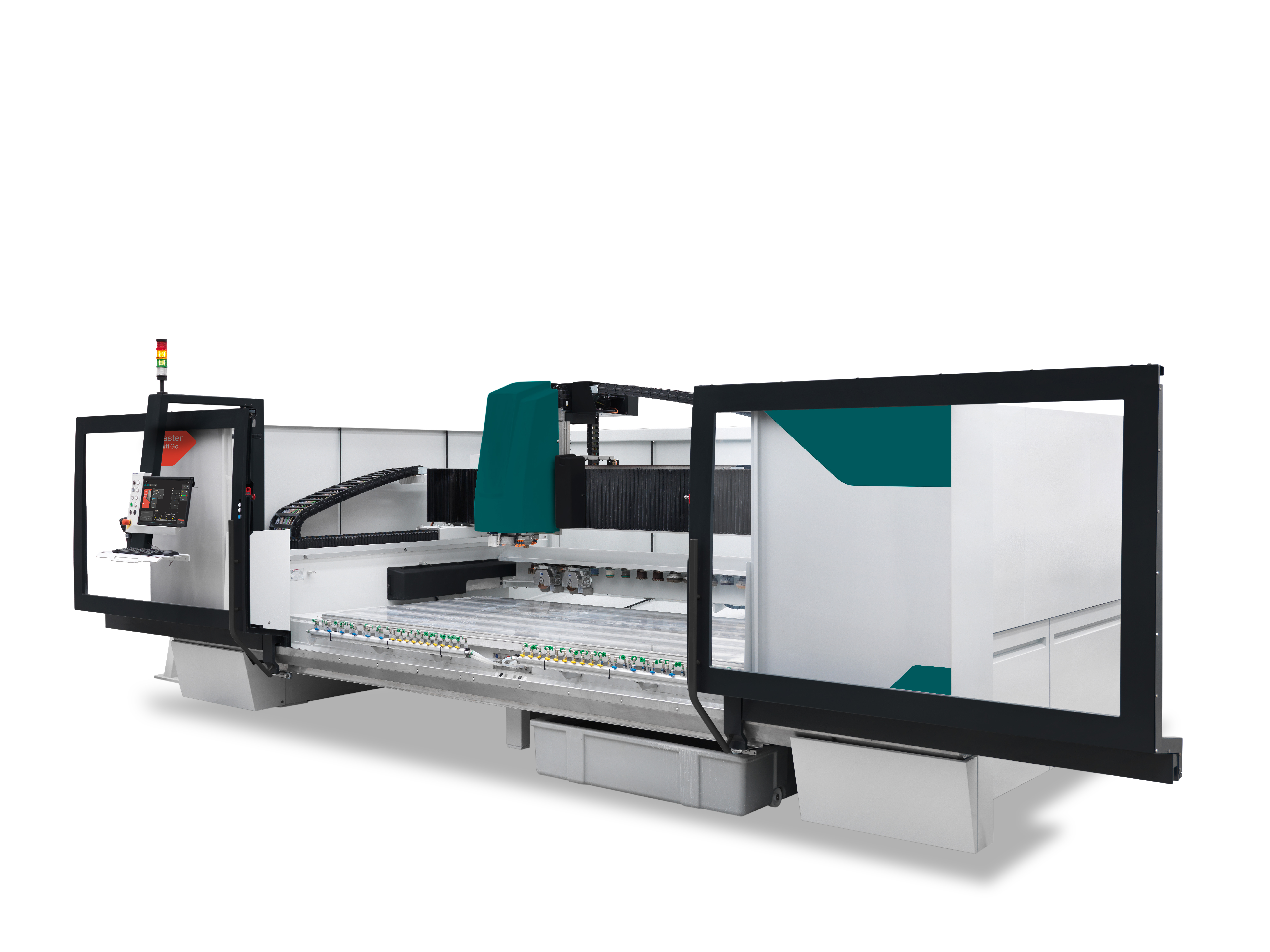

Details that make difference

Every detail has been meticulously studied to optimize both work ergonomic and machine design. The working table surface, positioned at the right height allows easy loading, reducing the physical efforts of operators. Start and stop bottoms, placed directly on the sliding doors, plus lights and gauges with extremely easy visibility make simple the use and control of the machine.

IC Stone - Multi MS

From drawings to actions, in 5 clicks. The 5 steps programming guides the user in all the main phases of the day-to-day work, starting from the drawing simplification up to automatic tooling. Simplify. Identify. Apply. Process. Execute.

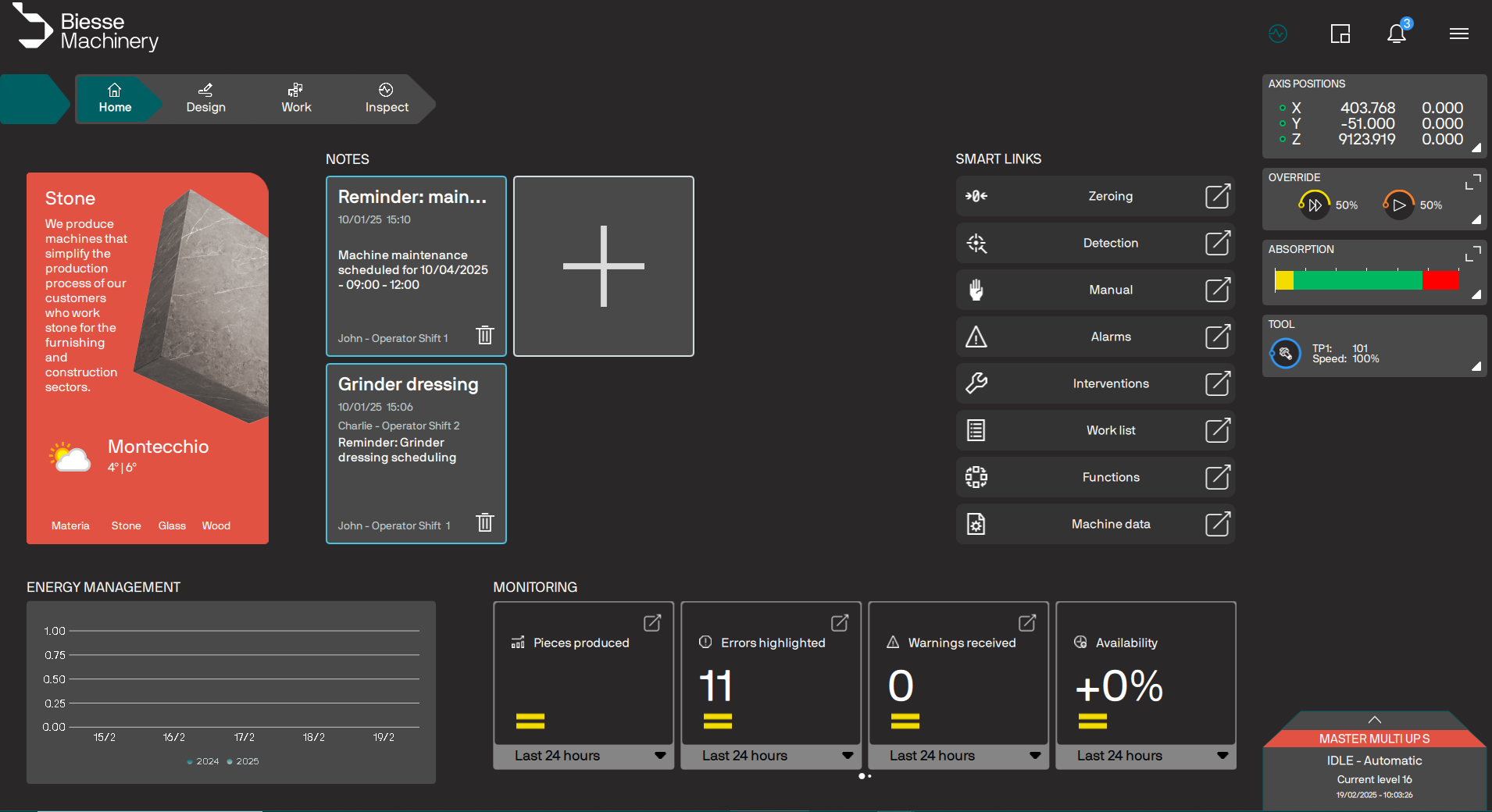

Humane Machine Interface & Software

Boost productivity with an intuitive Human Machine Interface that ensures clear interaction, safe control and faster workflows. Fully integrated, IC Stone Multi MS enables complete programming in just five steps, guiding the operator from drawing simplification to automatic tooling for efficient and streamlined operations.

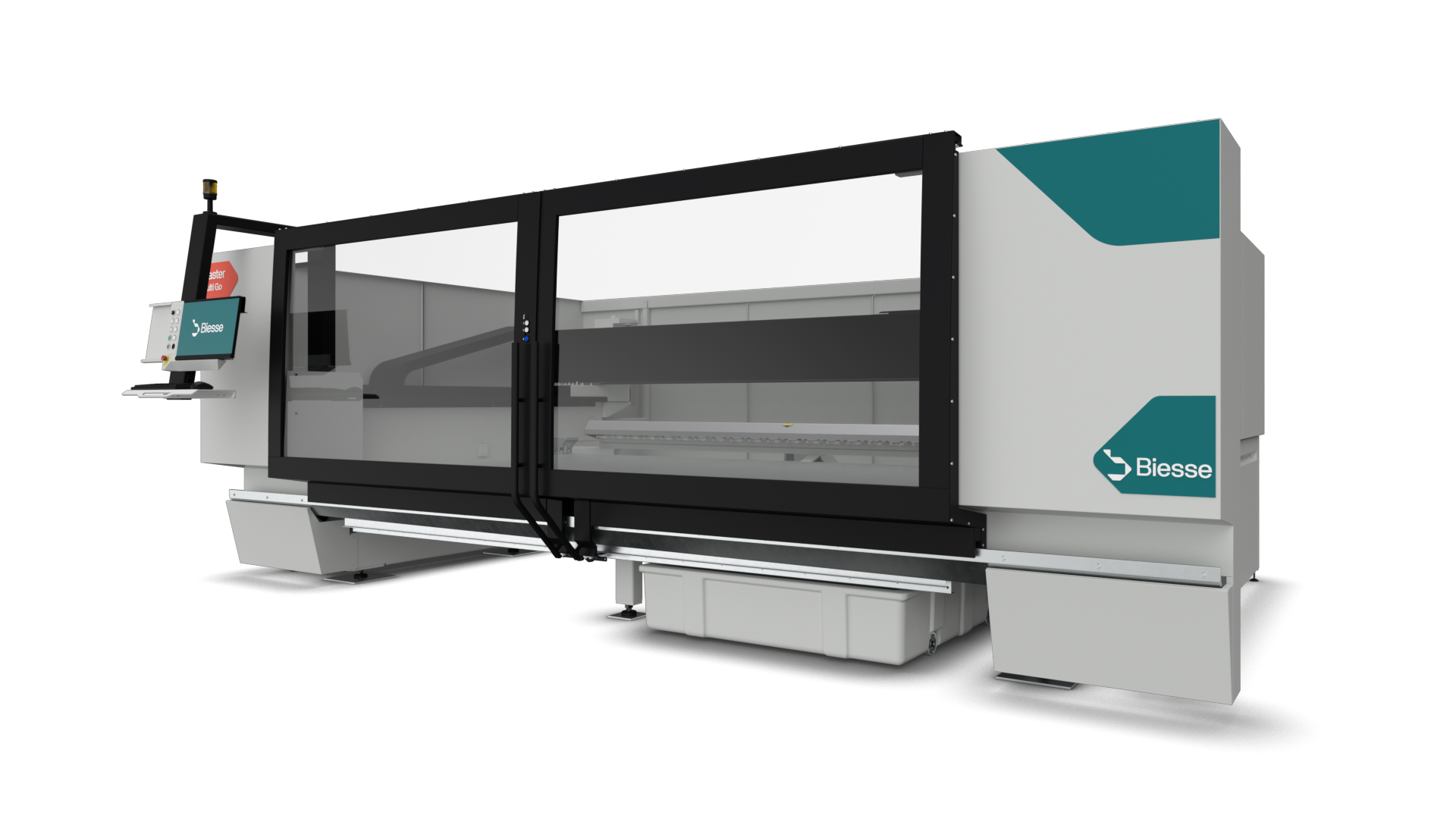

Engineered for endurance – unmatched reliability

The Master Multi Go S MS combines high-quality components, advanced technology, robust construction, a user-friendly interface and comprehensive safety features to ensure durability, precision, ease of use and operator safety.

Technical Data

	U.M.	33	33C
Rear magazine	positions	23 (Single line)	23 (Single line)
Interpolated Axes	No.	3	3
Weight	Kg	4500	4500
Maximum longitudinal stroke (X Axis)	[mm]	3400	3400
Maximum bridge translation (Y Axis)	[mm]	1600	1600
Maximum vertical travel of the head (Z axis)	[mm]	285	285
Piece clereance	[mm]	385	385
Working table height	[mm]	730	730
Rotary axis (C Axis - available for Configuration Regular)	°	∞	∞
Tilting (electronic inclination)	°	NA	0/-3
Working Table - Maximum Piece (100mm Wheel)	[mm]	3300 x 1500	3300 x 1500
Tool cone	ISO	40	40
Electrospindle power	[kW]	15 (S1) / 18 (S6)	15 (S1) / 18 (S6)
Electrospindle speed	rpm	12000	12000
Maximum Speed X Axis	[m/min]	70	70
Maximum Speed Y Axis	[m/min]	70	70
Maximum Speed Z Axis	[m/min]	19	19
Air Consumption (7 bar)	[Nl/min]	200	200
Internal water pressure	bar	2,5	2,5
Water consumption	[l/min]	10,5	10,5
Electric power required	kW	20	20
