Master Cut Up C W
Digital Catalogue
Register or log in to download the digital catalogue
More info
Fill in the form, specifying your requirements, and one of our experts will be in touch as soon as possible

Flexibility and versatility in every cut.

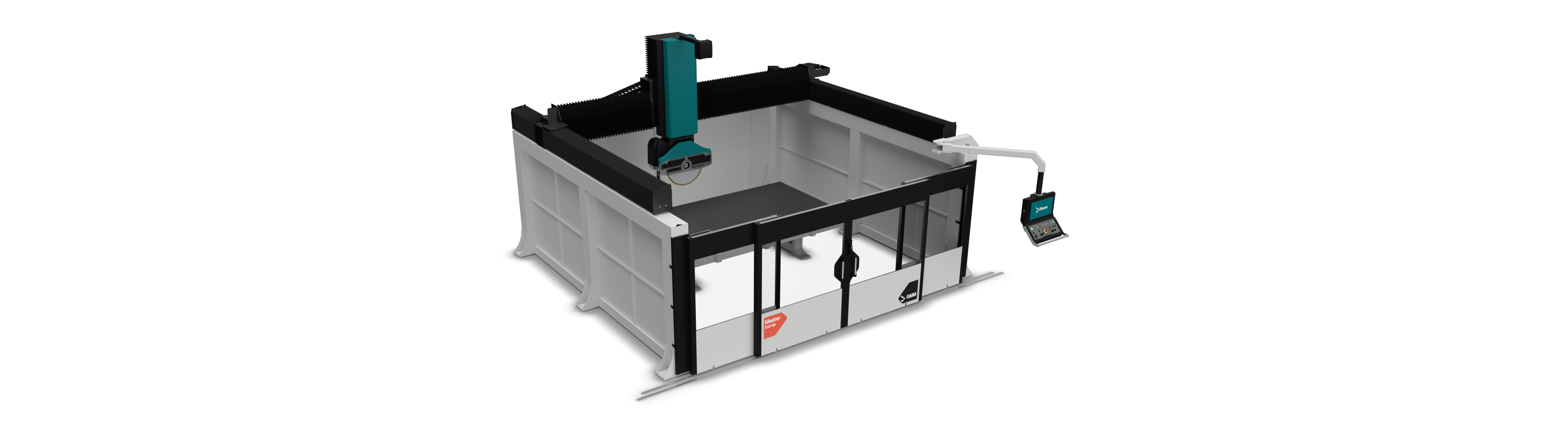

Master Cut UP C W is a mid-size 5-axis CNC sawing machine that combines precision, power and ease of use in a compact footprint. With a 600 mm Z-axis stroke and a Ø 725 mm blade, it processes slabs and medium-thickness stone elements with efficiency and accuracy. Intuitive and reliable, it is ideal for homeware decoration, small architectural projects and funerary applications, supporting both repetitive and custom production.

Human Machine Interface
Human Machine Interface

Control at your fingertips: smart, intuitive and ready to go. The 21″ ergonomic multitouch HMI is integrated into the machine controls, supported by GMM software designed to be simple, innovative and intuitive, enabling quick and efficient start-up of any stone-processing job.

Side Spindle
Side Spindle
Integrated in the head for faster workflows.The Side Spindle, built into the machine head, works with the blade and Vacuum System to cut processing times. It excels at creating kitchen worktops in just a few steps, ensuring stable, efficient, and precise operations.
Vacuum System
Vacuum System
Save time and energy. The Vacuum System, integrated on the machine head, automatically handles parts across the worktable. Aligned with the Z-axis, its design minimizes backlash and torque, ensuring maximum stability and efficiency.
5 Axis Technology
5 Axis Technology
Unlock complex cuts with ease. The 5-axis bridge saw enables advanced stone processing with precision. Its head moves and rotates in multiple directions, allowing complex shapes and angles to be cut efficiently, all while maintaining stability and accuracy.
Slab Thickness Reader
Slab Thickness Reader

Automatic precision for perfect cuts. The Slab Thickness Reader measures slab thickness and automatically compensates for variations. This ensures consistent cutting accuracy, optimized material use, and precise results, even for complex operations like inclined cuts.

Magnetic tool changer
Magnetic tool changer
The right tool, always ready. The 4-position Magnetic Tool Changer enables fast and precise tool swaps. Designed for milling and drilling, it is ideal for users working with a variety of tool diameters.
Tool Diameter Reader
Tool Diameter Reader
Real-time control for flawless machining. The Tool Diameter Reader precisely measures cutting tools and integrates with the machine software. It monitors wear and enables automatic adjustments, ensuring reliable, consistent, and highly accurate processing every time.
Camera
Camera
The right point of view. The Camera, integrated on top of the machine head, moves with it to capture the optimal perspective of each slab. This ensures precise edge detection, accurate measurements, and efficient, error-free machining.

Main Techinical Data

TECHNICAL DATAU.M.Value
Interpolated Axesn°5
Maximum longitudinal stroke (X Axis)[mm]3600 / 4100
Bridge translation (Y Axis) (Min/Max Std defined)[mm]2500 to 6490
Maximum vertical travel of the blade (Z Axis)[mm]600
Maximum Blade Orientation Angle (W Axis)°0 ÷ 370
Maximum blade tilting (R Axis)°0 ÷ 90
Worktable Area[mm]3500x2000 / 4000x2000
Worktable Area with table extension [mm]3500x2460 / 4000x3300
Maximum blade diameter std[mm]725
Maximum cutting depth[mm]255
Blade Hole for Std Motor / Blade hole fo Iso 40 Cone[mm]60 / 90
Blade Locking Flange Diameter[mm]213
Blade motor power std / Iso 40 Cone [kW]16.5 - 23.5 (S6) / 19.5 (S6) air cooling - 25.9 (S6) water cooling
Variable Blade Speed for Std Motor / for Iso cone 40 Motor [rpm]800 ÷ 6000 / max 10000
Side spindle motor power[kW]4
Variable Side Spindle Speed[rpm]12000
Variable Sledge Cutting Speed (X Axis)[m/min]35
Variable Sledge Cutting Speed (Y Axis)[m/min]35
Maximum Speed Z Axis[m/min]7,5
Water Clean Consumption (3 bar - psi)[l/min]15
Air Consumption (6 Bar - psi) (* With Vacuum System)[l/min]25 (*300)
Max liftable weight with vacuum system[kg]500
Standard Installation Dimensions (Width X Depth X Height)[mm]7880x5510x3830/8070x7380x3830
Total machine mass (without steel wall and table)[kg]3270

Sectors & Applications

Homeware decorations
Homeware decorations
Building
Building
Funerary
Funerary
